System Diagram

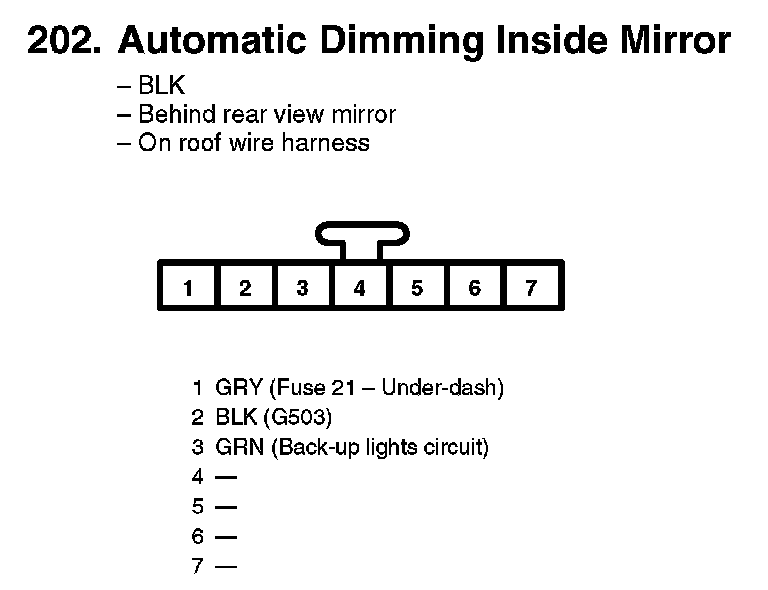

202. Automatic Dimming Inside Mirror:



229. Power Mirror, Left:

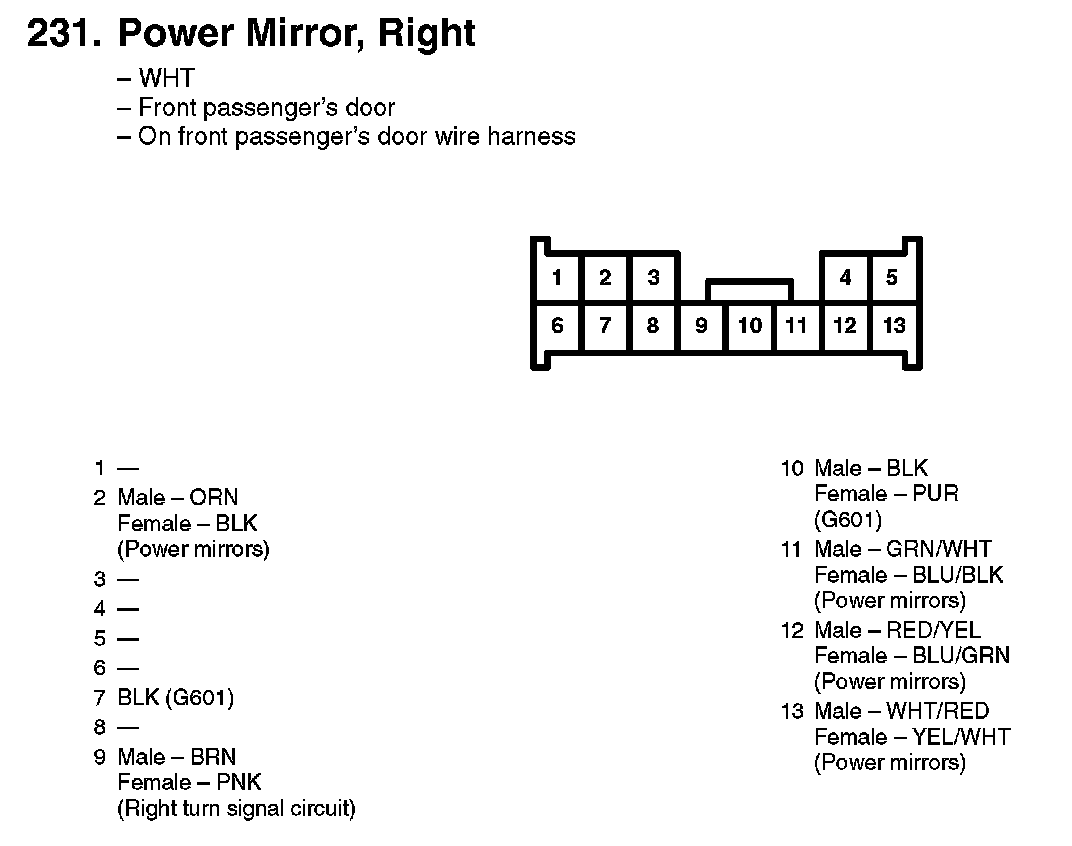

231. Power Mirror, Right:
