Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram

System Diagram

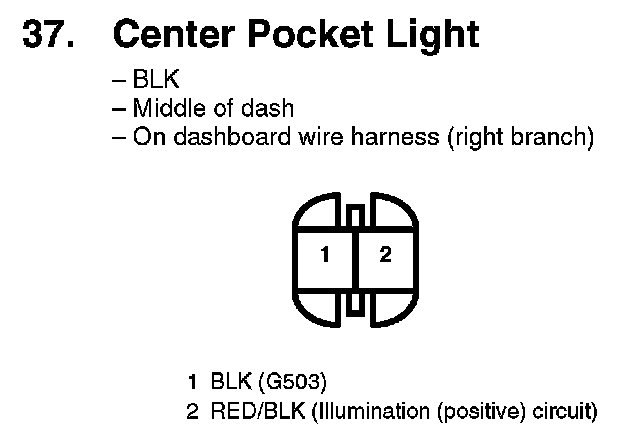

37. Center Pocket Light:

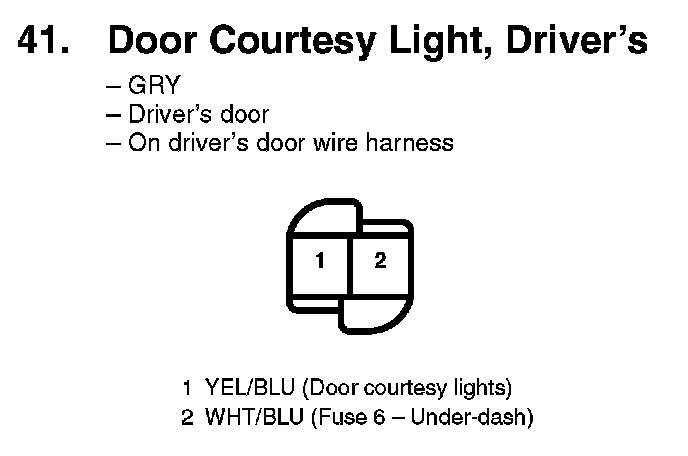

41. Door Courtesy Light, Driver's:

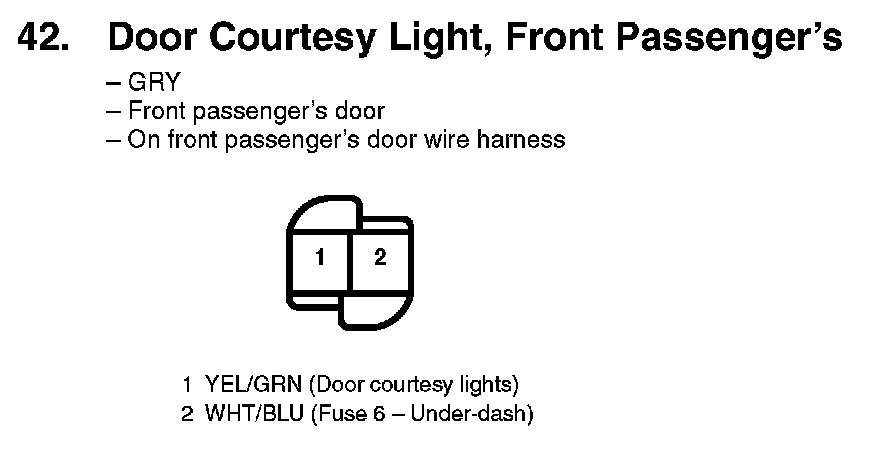

42. Door Courtesy Light, Front Passenger's:



212. Ambient Light:
