Control Assembly, HVAC
Control Assembly, HVAC

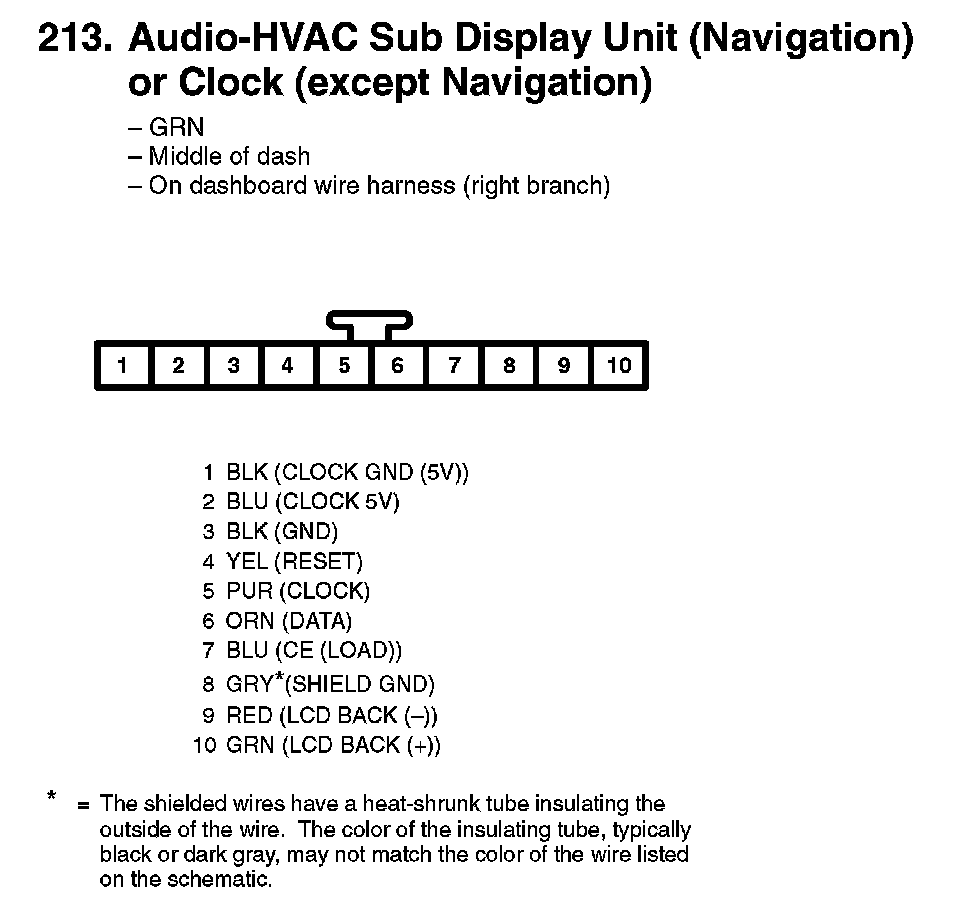

213. Audio-HVAC Sub Display Unit (Navigation) Or Clock (expect Navigation):
