Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Lamp >> System Diagram

System Diagram

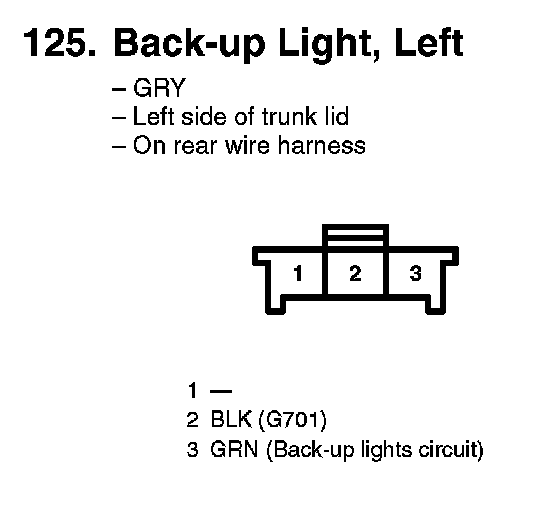

125. Back-up Light, Left:

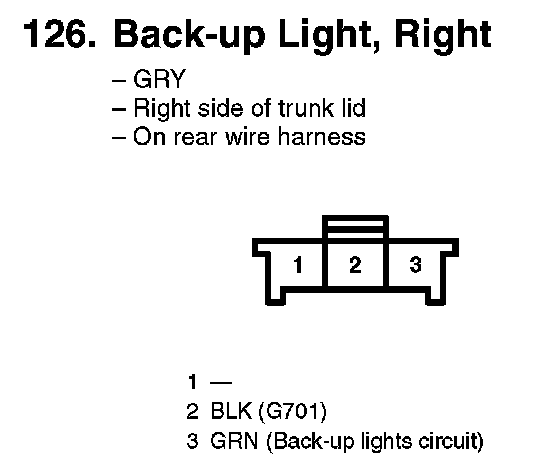

126. Back-up Light, Right:
