Front

Front Brake Pad Inspection and Replacement

CAUTION: Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.
^ Avoid breathing dust particles.
^ Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

Inspection
1. Raise the front of the vehicle, and support it with safety stands in the proper locations.
2. Remove the front wheels.
3. Remove the brake pads.

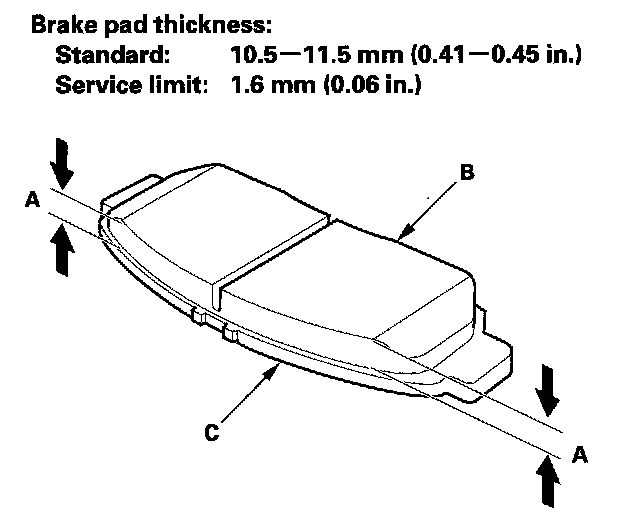

4. Check the thickness (A) of the brake pads (B). Do not include the thickness of the brake pad backing plate (C).





5. If the brake pad thickness is less than the service limit, replace all of the front brake pads as a set.
