Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams >> Connector Views

Connector Views

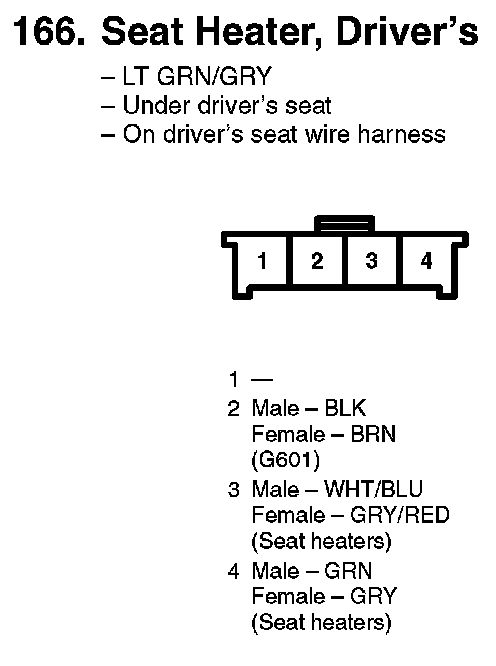

166. Seat Heater, Driver's:

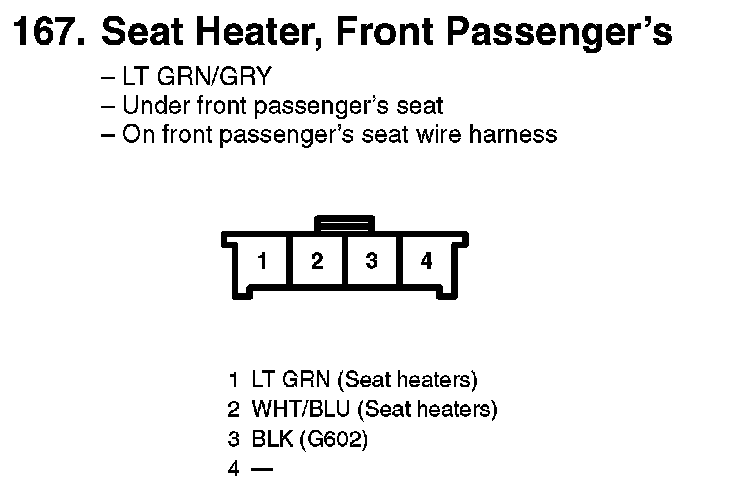

167. Seat Heater, Front Passenger's:
