Limit Switch Test
Limit Switch Test1. Remove the headliner.

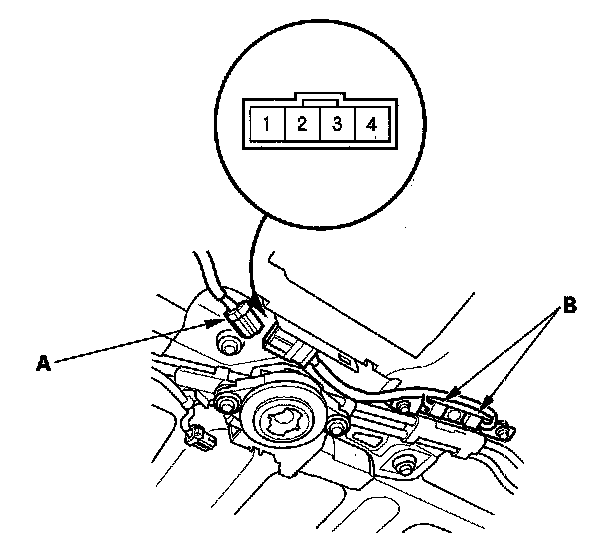

2. Disconnect the 4P connector (A) from the moonroof limit switch (B).

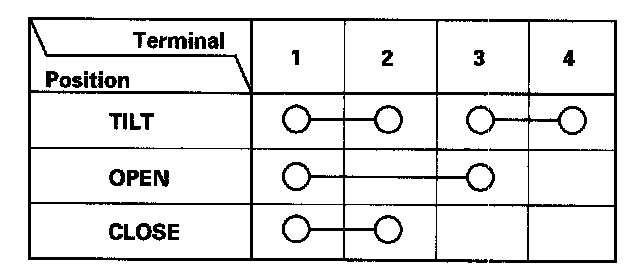

3. Check for continuity between the terminals in each switch position according to the table.
4. If the continuity is not specified, replace the moonroof motor assembly.
