How to Connect the Radio Test Harness Breakout Box

How to Connect the Radio Test Harness Breakout Box

With Navigation

1. Remove the audio-HVAC display module.

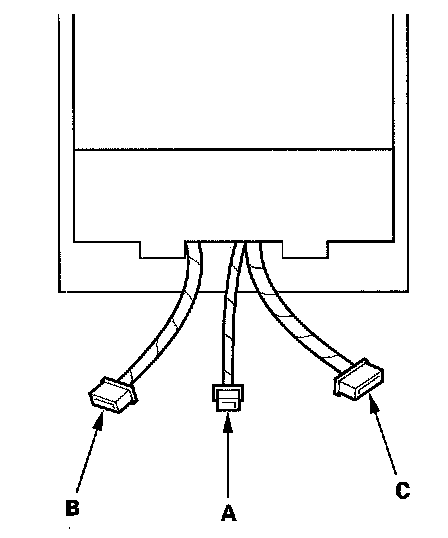

2. Disconnect the 2P connector (A), 14P connector (B) and 20P connector (C).
3. Connect the special tool to the connectors (A) (B) (C).

Without Navigation

1. Remove the audio-HVAC display module.
2. Remove the audio unit from the audio-HVAC display panel.
3. Disconnect the 2P connector.




4. Connect the special tool to the connectors (A) (B) (C).
