Speaker: Service and Repair

Speaker Replacement

Door Speaker




1. Remove the door panel.

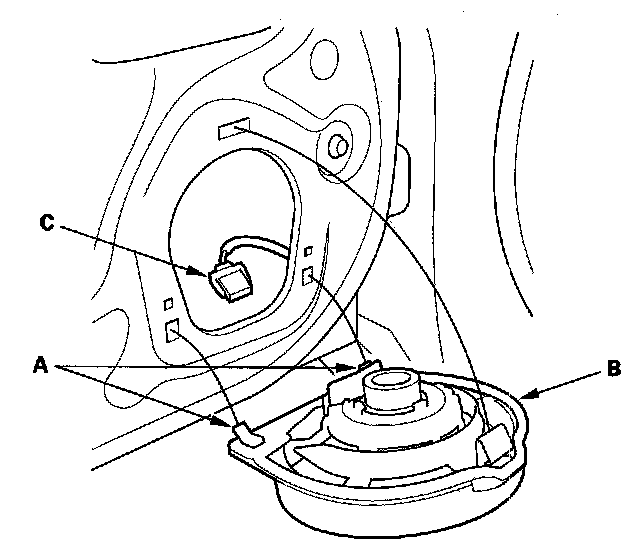

NOTE: If you pull the speaker out too far from the door, you will damage the lower clips (A).

2. Pull the speaker (B) straight out, just enough to release the upper clips. Then lift the speaker straight up to release the lower clips.
3. Disconnect the 2P connector (C), and remove the speaker.
4. Install the speaker in the reverse order of removal.

Tweeter

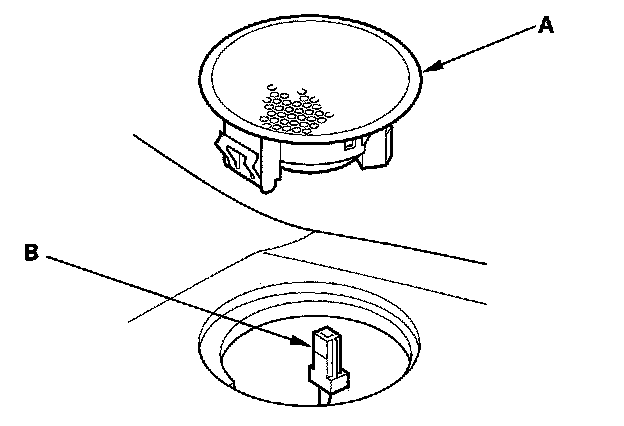

1. Remove the tweeter speaker grille and tweeter (A).
2. Disconnect the 2P connector (B) from the tweeter.

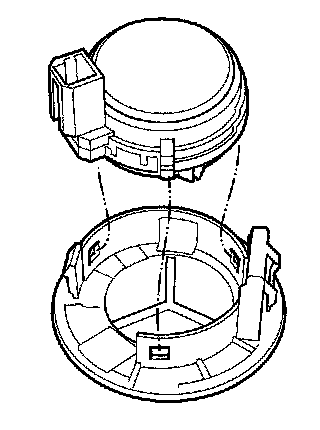

3. Remove the tweeter speaker grille from the tweeter.
4. Install the tweeter in the reverse order of removal.

Rear Speaker

1. Remove the rear speaker cover by prying straight up to release the clips.

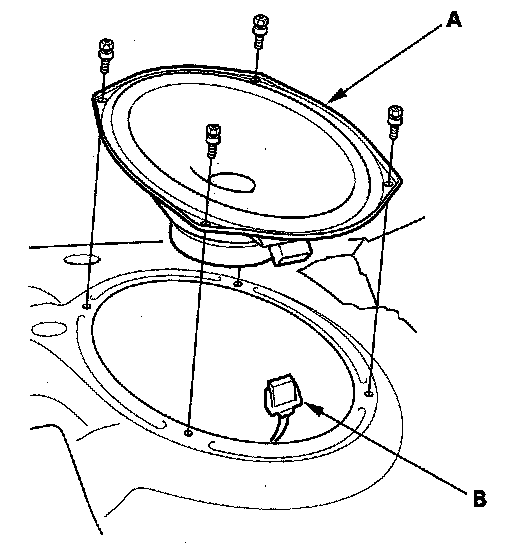

2. Remove the four mounting bolts from the rear speaker (A).
3. Disconnect the 2P connector (B), and remove the speaker.
4. Install the speaker in the reverse order of removal.
