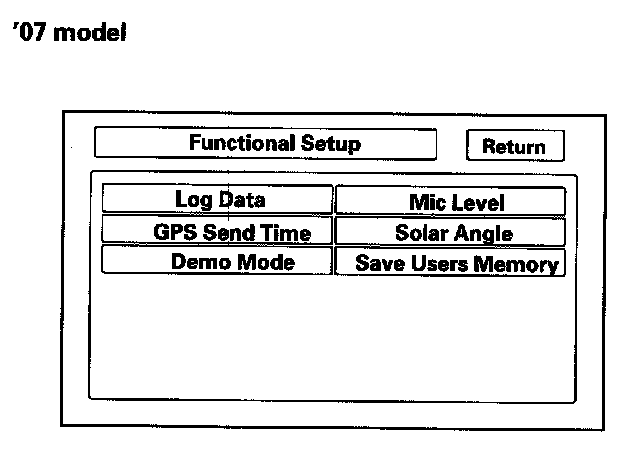

Functional Setup

Functional Setup




Select the item you want to check.
- Log Data
- GPS Send Time
- Demo Mode
- Mic Level
- Solar Angel
- Save Users Memory ('07 model)

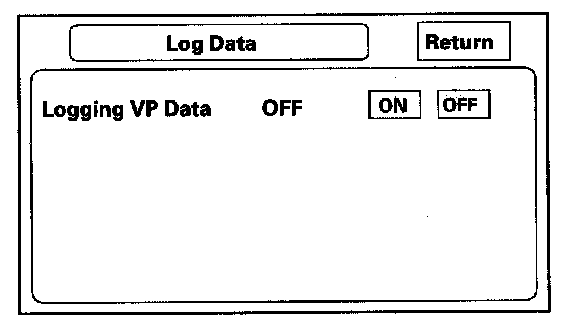

Log Data
This screen allows the factory to collect log data to troubleshoot navigation system issues.

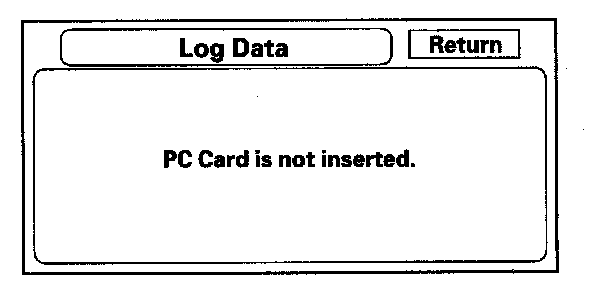

- Normally there is no card in the "PC Card slot", and the PC slot door should always be closed.




- However, if the factory provides a PC card and instructs you to insert it into the card slot (label side up), and then slide the PC Card door shut. If instructed by the factory, select "Gyro. Sensor Logs ON". Follow the factory procedure for gathering test data, and properly ending the test.

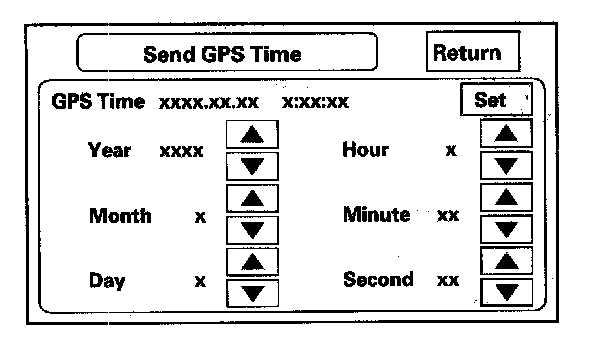

GPS Send Time
This screen is for factory use only, do not adjust. It allows adjustment of the GPS time. This display updates in real time.
- "GPS Time" is the time as received from the GPS satellites. It is in Greenwich Mean Time (GMT).
- "System Time" is the internal time used by the navigation unit to calculate your position on the map. It is also in Greenwich Mean Time (GMT).
- "Display Time" is the time shown on Setup screen 2 "Adjust Time Zone/Clock", and reflects any changes due to daylight savings time or time adjustments entered by the client.
- Date, Hour, Minute, and "Set" should not be used.

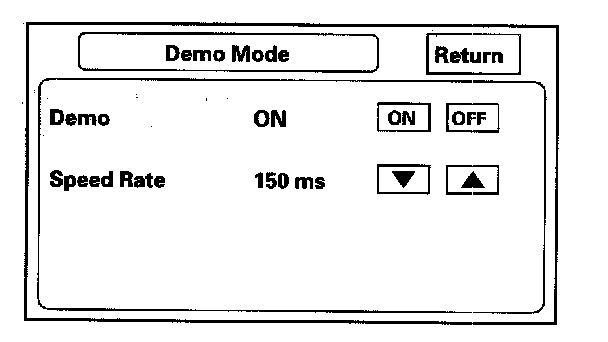

Demo Mode
This screen allows the navigation system to "drive" a route, when the vehicle is stationary. Typical applications include auto shows, and other events. This feature allow visitors to enter a destination, and see the system "drive" to the destination. No speed signal is needed.
- To initiate the mode select "ON"
- Changing the "speed rate" in the ms (milliseconds) is optional, and represents the time between updates of the VP (vehicle position) movement.
- When you increase the rate, the VP slows down, because it is updated (moved) at a slower rate.
- When you decrease the rate, the VP is faster, because it is updated (moved) more frequently.
- 1500 ms is VP at its slowest in demo mode.
- 150 ms is VP at its fastest in demo mode (Default).

- At key off, the setting automatically returns to the default of "Off".

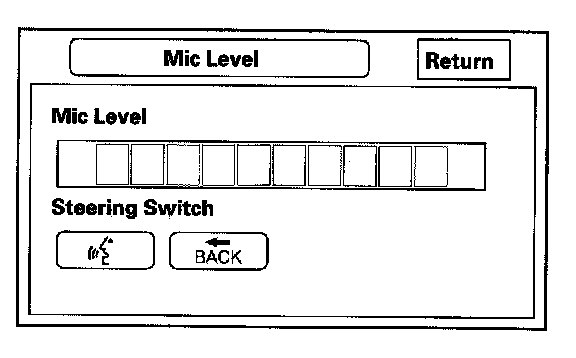

Mic Level
This diagnostic allows you to independently test the microphone and the TALK/BACK buttons. They are used to activate the voice control system. The microphone is located near the map light in the ceiling. It is directional, and works best if the voice is coming from the drivers seat.
- Press the TALK button on the steering wheel, and in a normal voice say "testing". The talk indicator on the screen should momentarily turn green, and the text "Now Recording..." should appear in yellow. In addition, the Mic Level indicator should move at least to the 6th bar. If the talk indicator on the screen does not briefly turn green, then check the wiring from the TALK button to the navigation unit. If there is no "Mic Level" movement when you speak, then you should check the wire running from the microphone to the control unit.
- Press the BACK button on the steering wheel. The Cancel indicator should turn green momentarily. If it does not briefly change to green, then check the wiring from the steering wheel BACK button to the navigation unit.
