Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Alarm Module >> Locations

Alarm Module: Locations

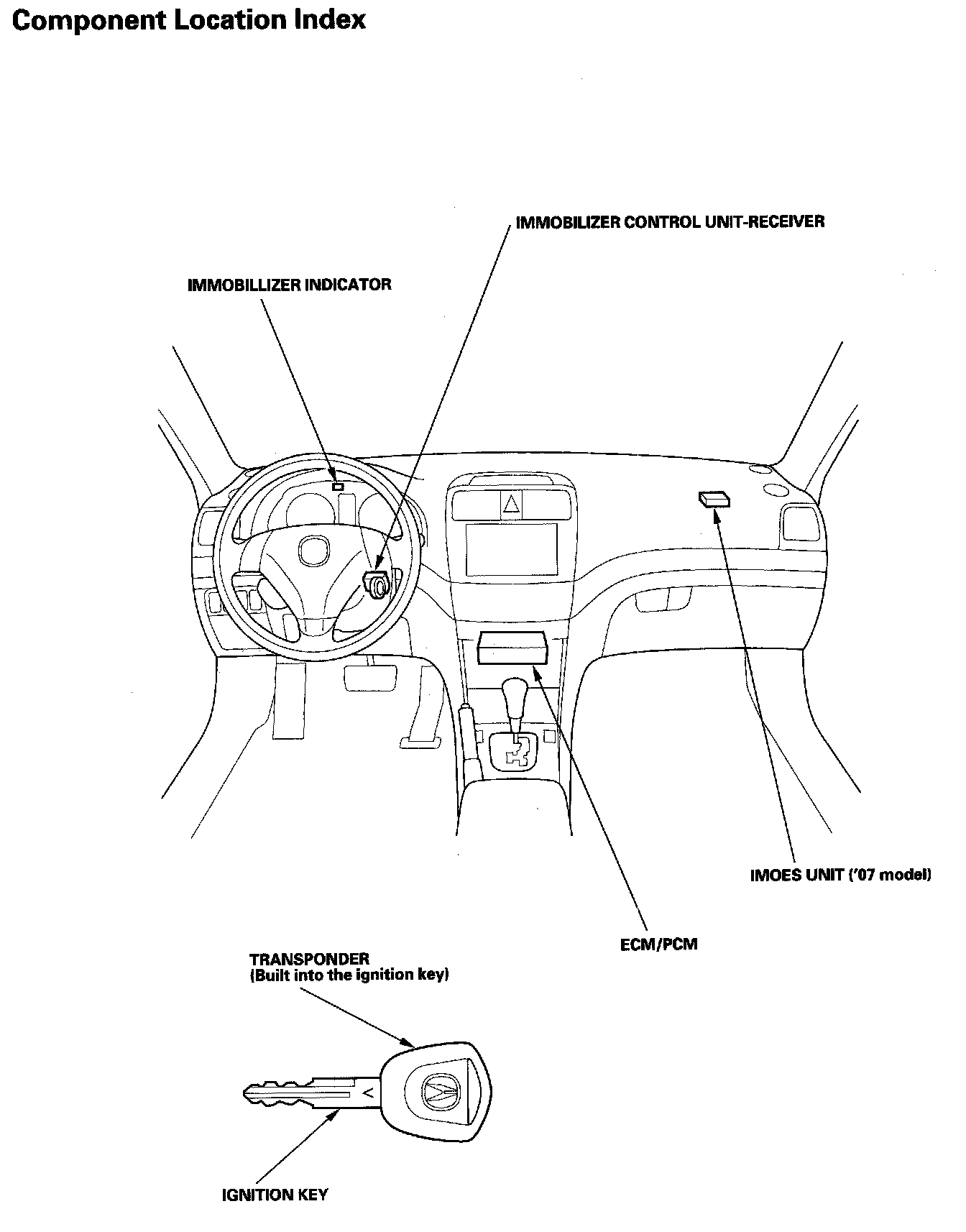

Immobilizer System Component Location Index:

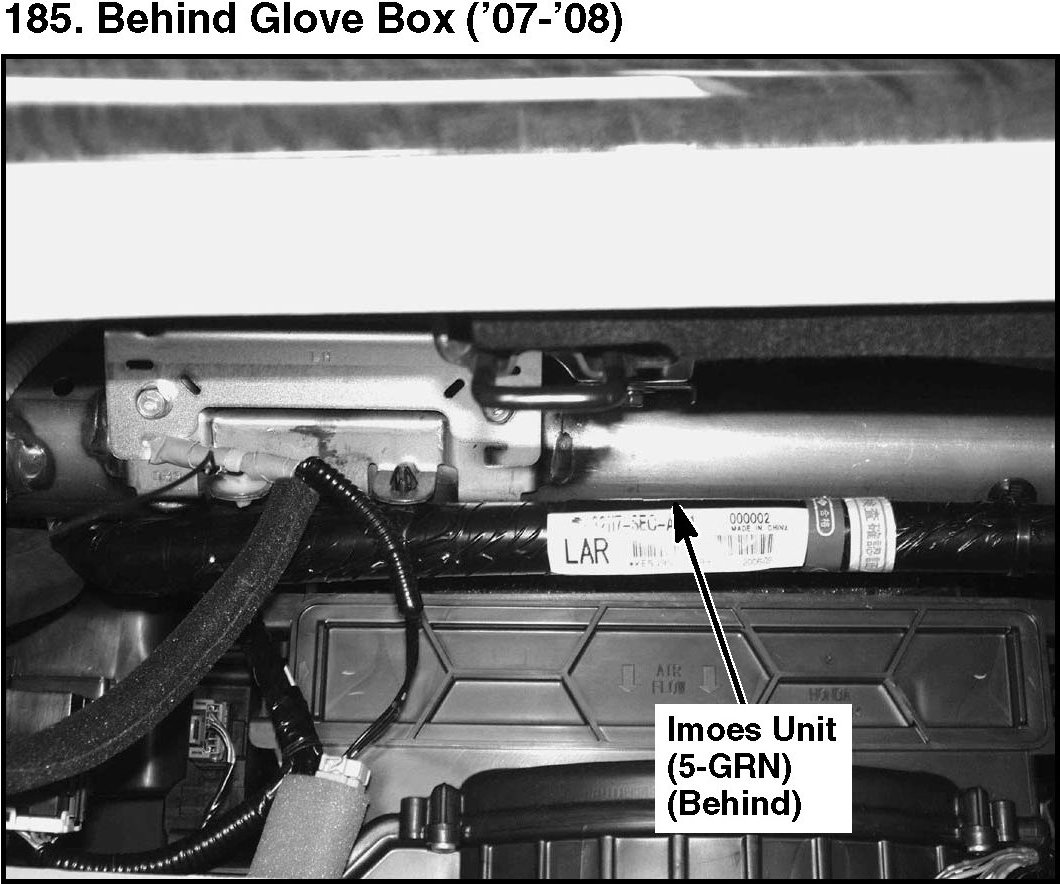

185. Behind Glove Box:

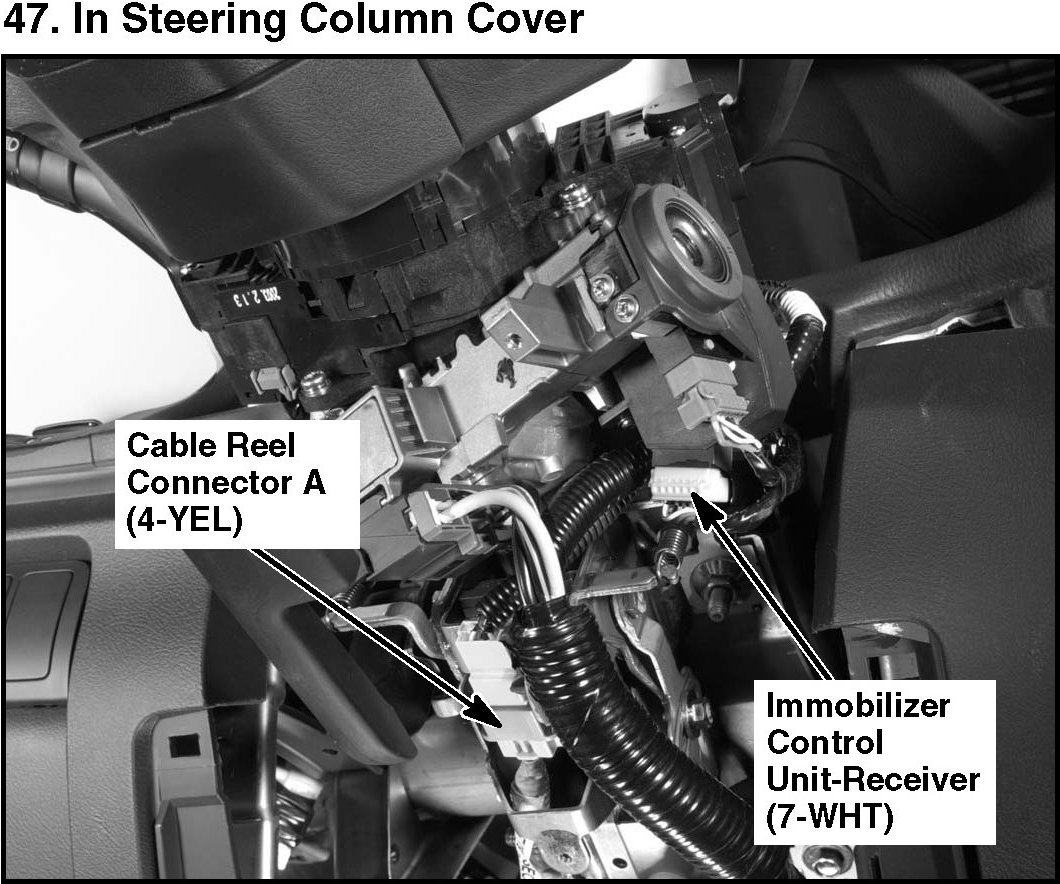

47. In steering Column Cover:
