Advanced Diagnostics

DTC P0340: Camshaft Position (CMP) Sensor A No Signal




General Description
Camshaft position (CMP) sensor A detects the intake camshaft timing and sends pulsing signals to the engine control module (ECM)/powertrain control module (PCM). The ECM/PCM determines the advance or the retard of the camshaft timing according to the signals from the crankshaft position (CKP) sensor and CMP sensor A. If no pulsing signals are detected from CMP sensor A, a malfunction is detected and a DTC is stored.

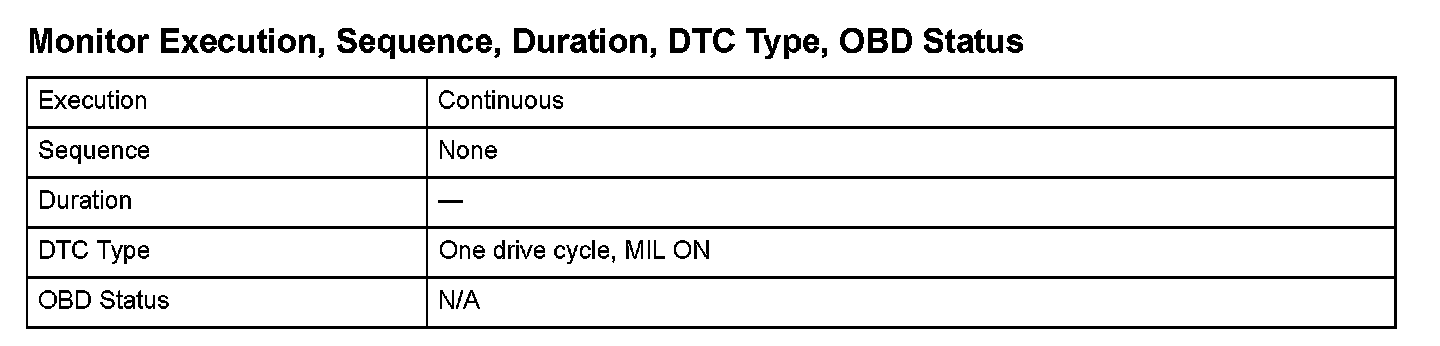

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

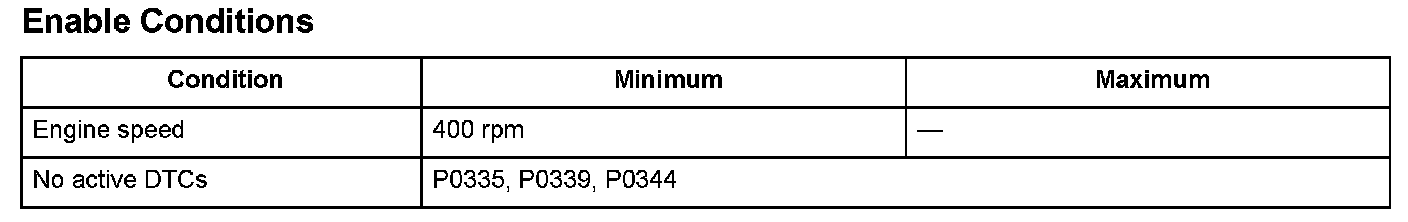

Enable Conditions

Malfunction Threshold
No signals from CMP sensor A are detected 50 times or more in succession.

Diagnosis Details

Conditions for illuminating the MIL
When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the ECM/PCM memory.

Conditions for clearing the MIL
The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
