DTC 65

DTC 65: Brake Fluid Level

1. Check the brake fluid level. Is the level correct?

YES - Go to step 2.

NO - Inspect the brake system for fluid leaks, if no leaks are found, replace all worn out brake pads.

2. Disconnect the gauge control module connector A (22P), and brake fluid level switch 2P connector.

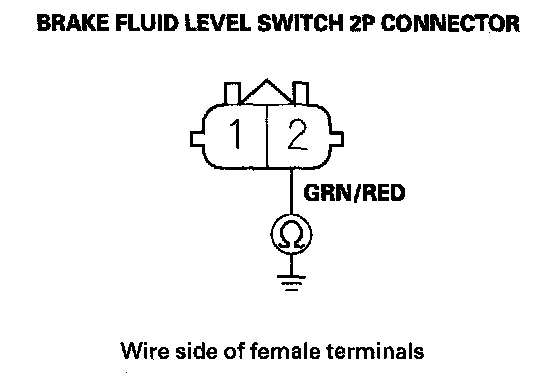

3. Check for continuity between brake fluid level switch 2P connector terminal No. 2 and body ground.





Is there continuity?

YES - Repair short to body ground in the wire between the gauge control module and the brake fluid level switch.

NO - Go to step 4.

4. Check the brake fluid level switch.

Is the switch OK?

YES - Do the troubleshooting for the gauge control module.

NO - Replace the brake fluid level switch.
