4. Change Lever Assembly Disassembly/Reassembly

Change Lever Assembly Disassembly/Reassembly
Prior to reassembling, clean all the parts in solvent, dry them, and apply grease to the contact surfaces as shown.

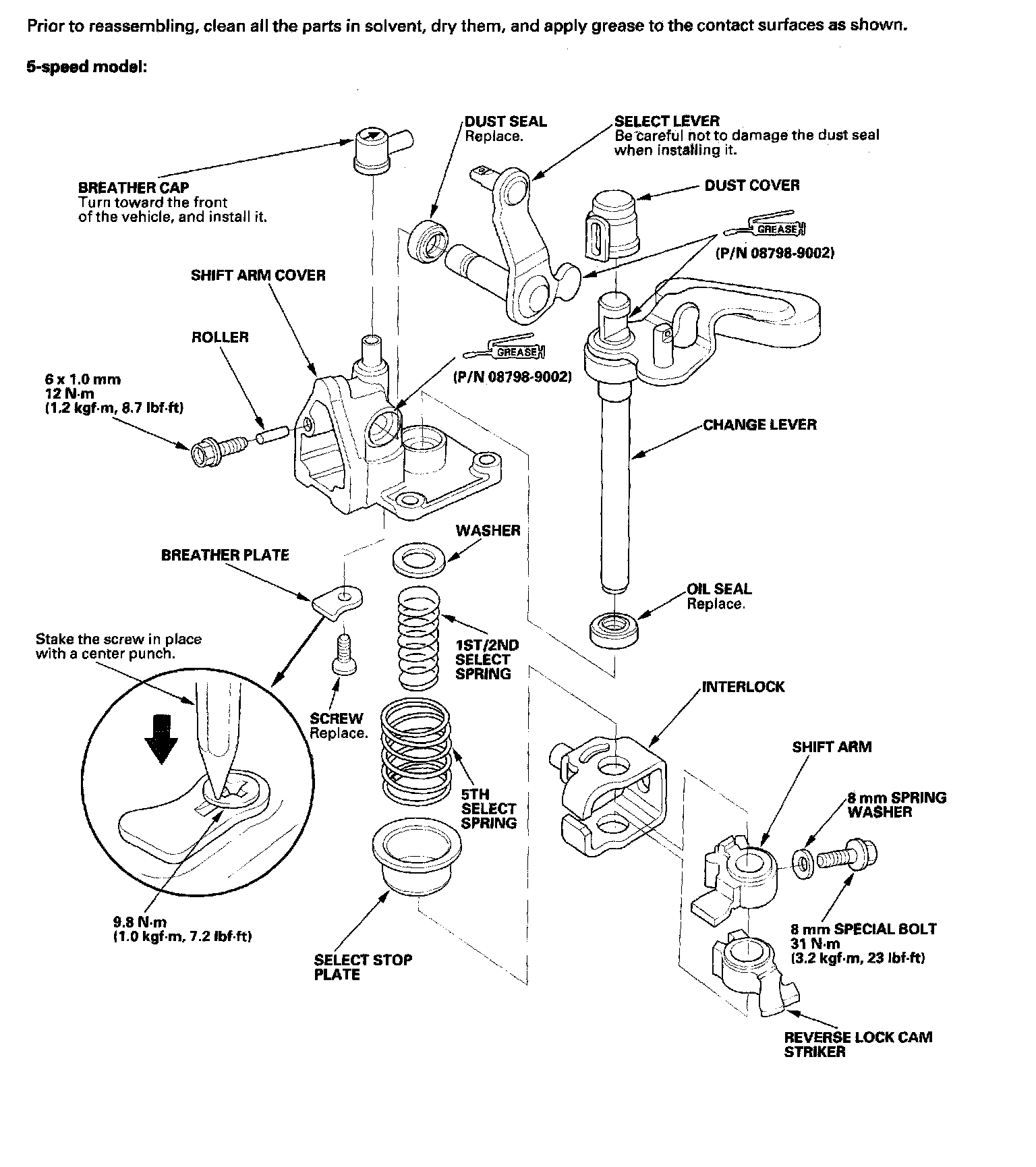

5-speed model:

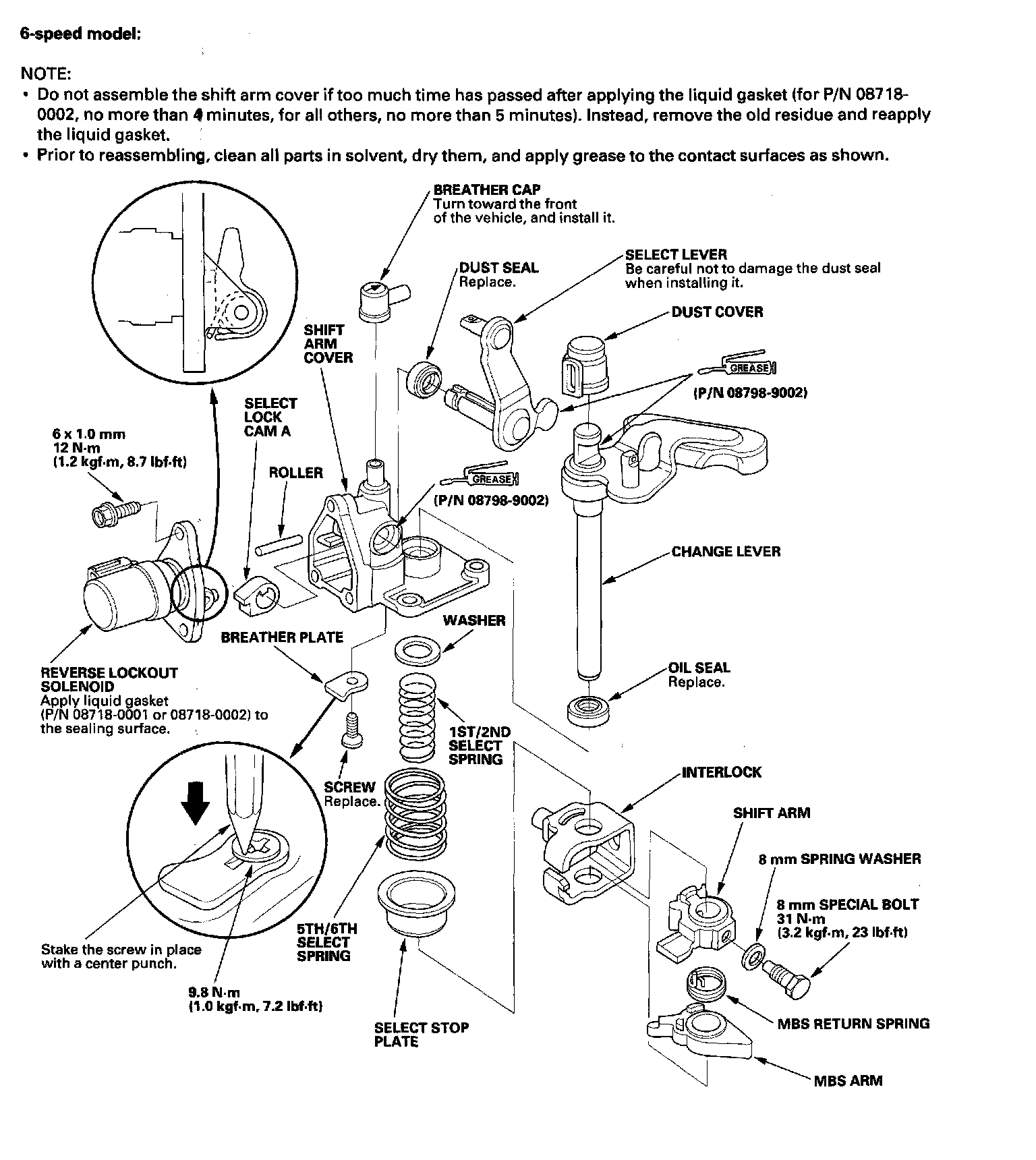

6-speed model:

NOTE:
- Do not assemble the shift arm cover if too much time has passed after applying the liquid gasket (for P/N 087180002, no more than 4 minutes, for all others, no more than 5 minutes). Instead, remove the old residue and reapply the liquid gasket.
- Prior to reassembling, clean all parts in solvent, dry them, and apply grease to the contact surfaces as shown.
