M/T Differential

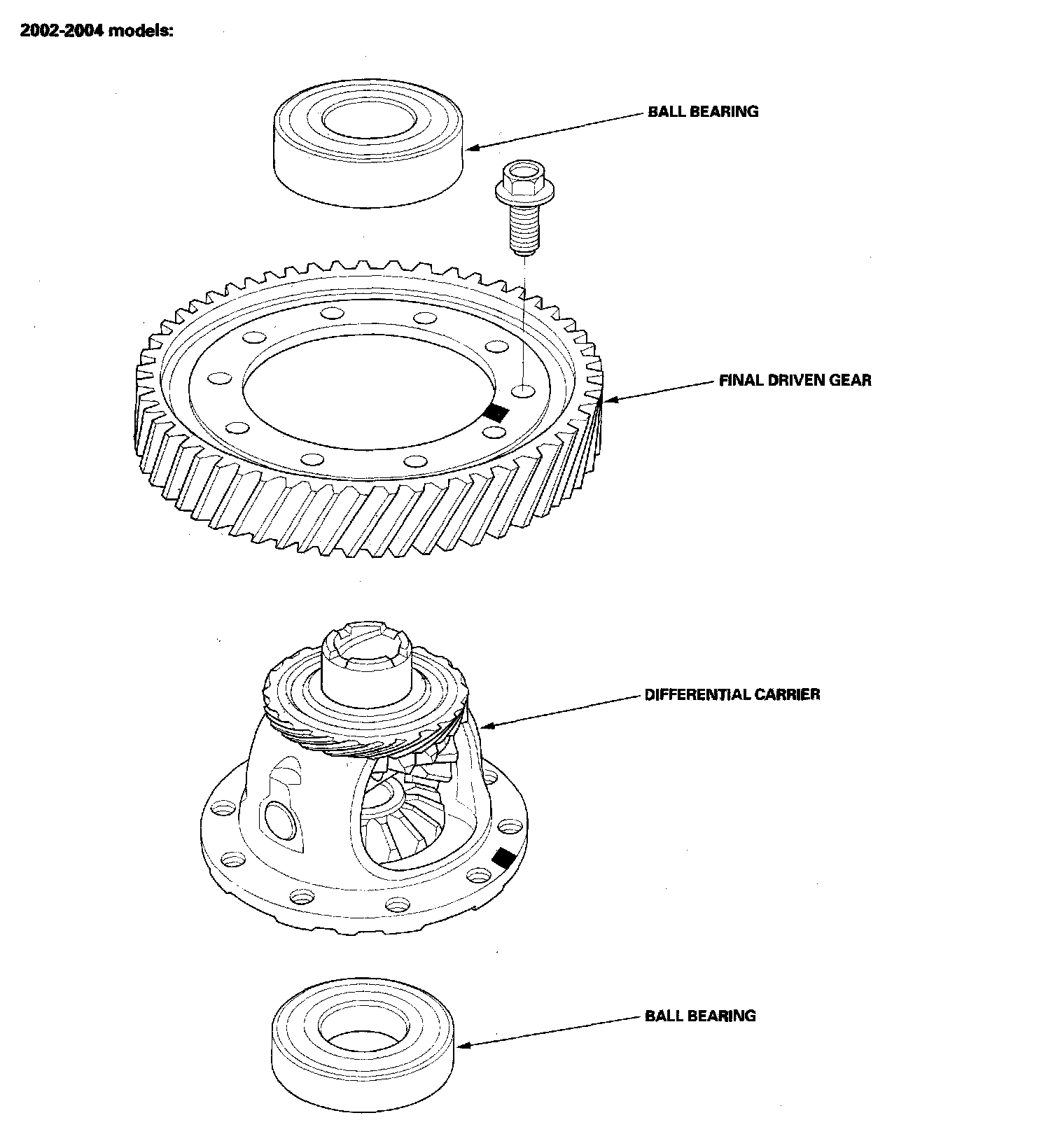

M/T Differential Component Location Index 2002-2004 models:

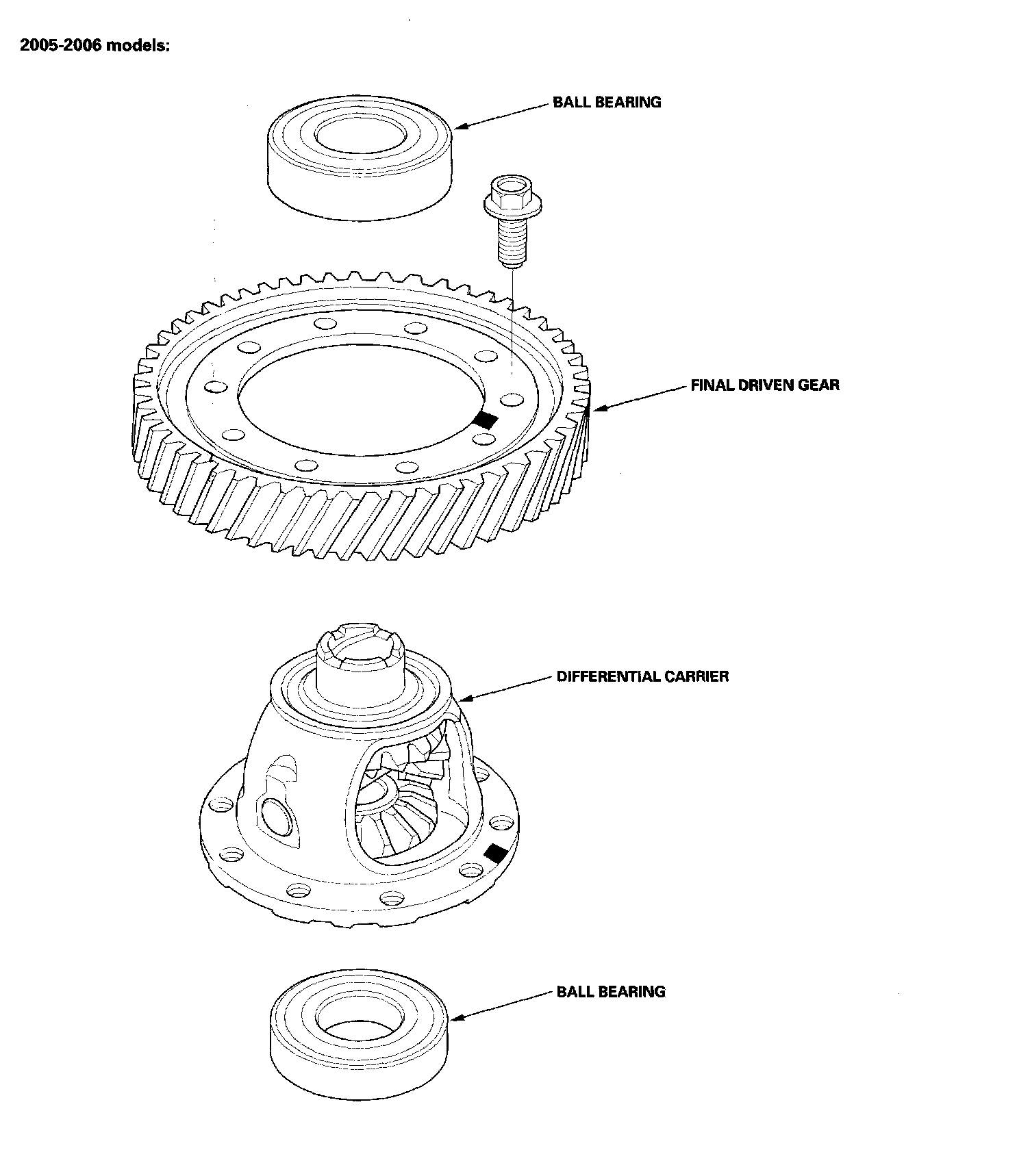

M/T Differential Component Location Index 2005-2006 models:
