Alternator Overhaul:

Special Tools Required
- Driver 07749-0010000
- Attachment, 42 x 47 mm 07746-0010300

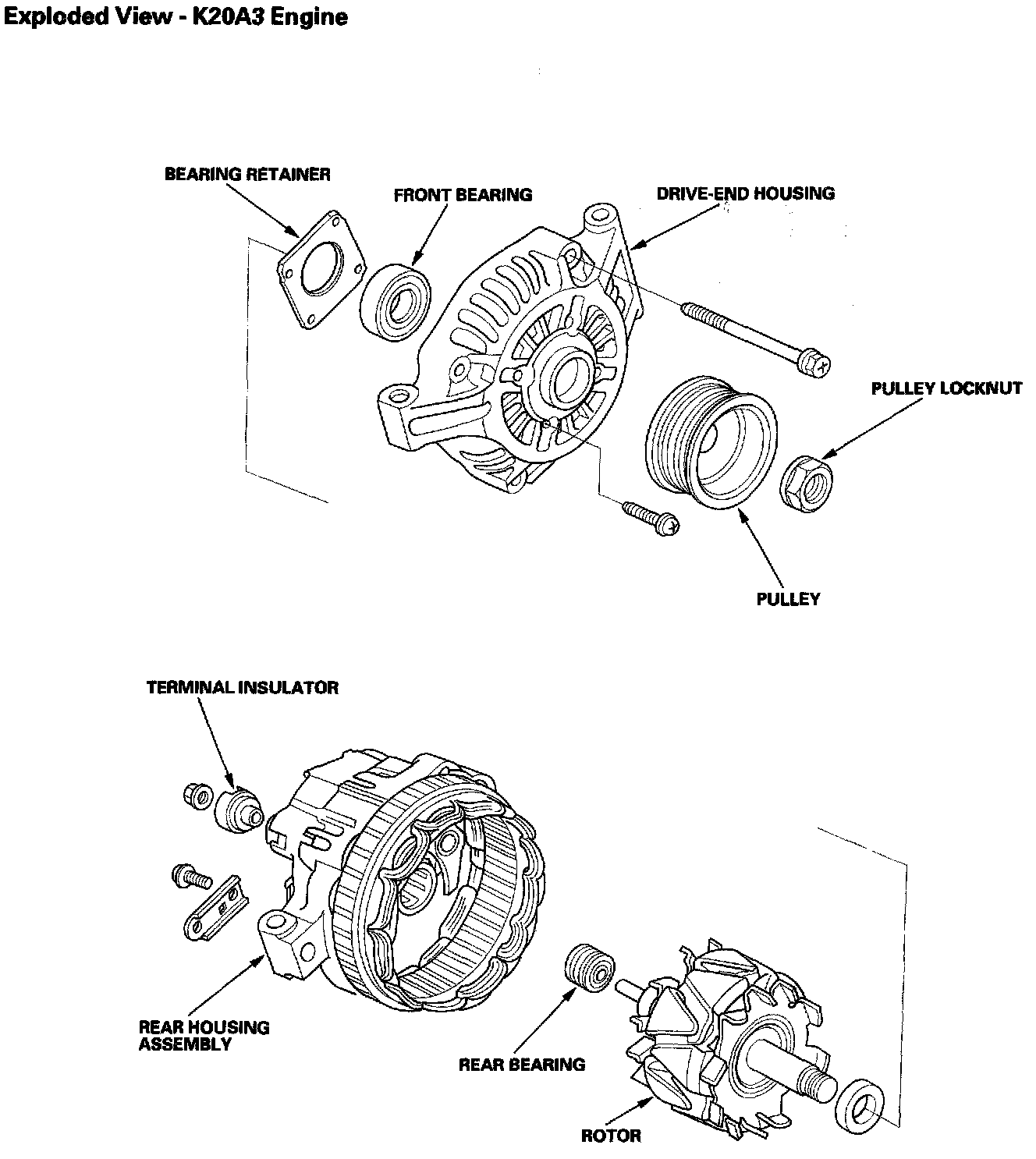

NOTE: Refer to the Exploded View as needed during this procedure.

Alternator Disassembly

1. Test the alternator and regulator before you remove them.
2. Remove the alternator.

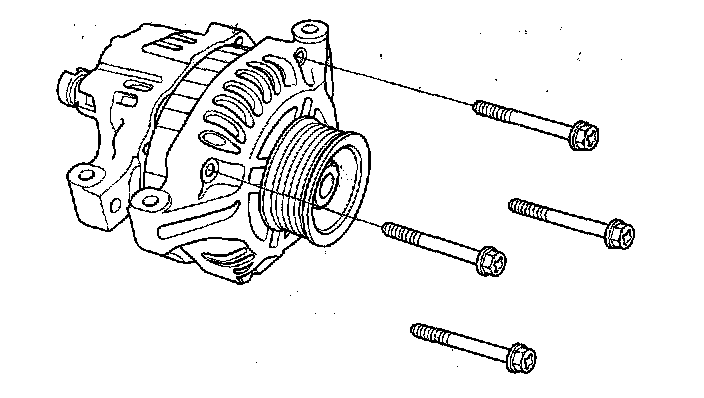

3. Remove the four through bolts.




4. Heat the rear bearing seat with a 1,000 W hair drier for about 5 minutes (129-140 degrees F, 50-60 degrees C).

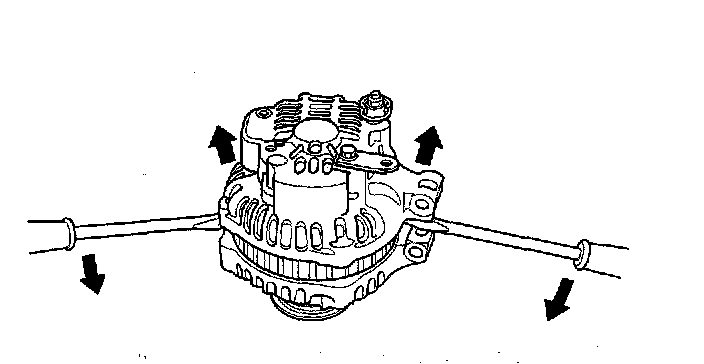

5. Separate the rear housing from the drive-end housing By inserting a flat tip screwdriver into the openings and prying them apart.

NOTE: Be careful not to damage the stator with the tip of the screwdriver.

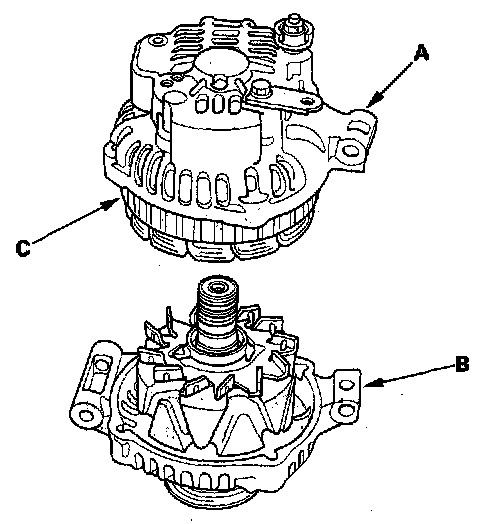

6. Separate the rear housing (A) and drive-end housing (B) with the stator (C) attached to the rear housing.




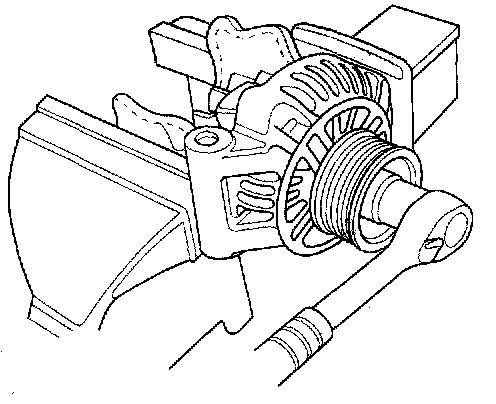

7. If you are not replacing the front bearing and/or rear bearing; go to step 15. Clamp the rotor in a soft-jawed vise, then remove the pulley locknut.

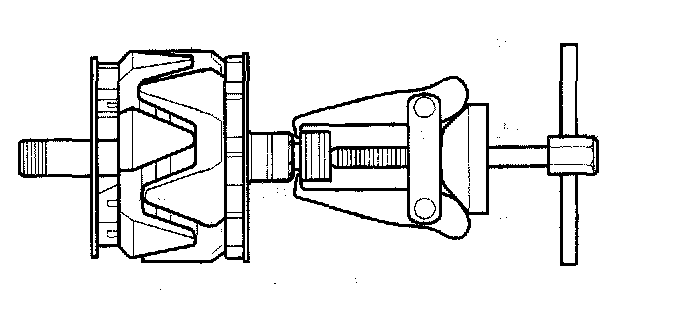

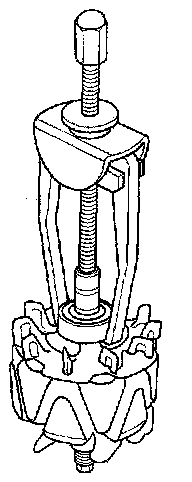

8. Remove the rotor using a puller as shown.
9. Inspect the rotor shaft for scoring, and inspect the bearing journal surface in the drive-end housing for seizure marks.
- If either the rotor or drive-end housing is damaged, replace the alternator.
- If both the rotor and the drive-end housing are OK, go to step 10.




10. Remove the rear bearing using the puller as shown.

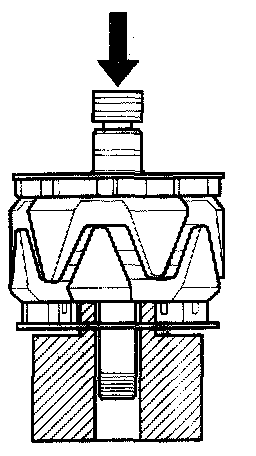

11. Use a hand press to install the new rear bearing. Apply pressure only on the Inner race to avoid damaging the bearing.




12. Remove the front bearing retainer plate.

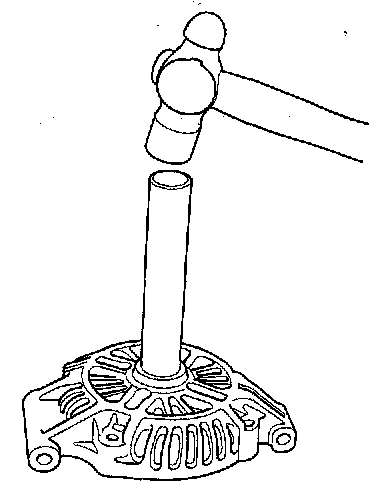

13. Support the drive-end housing in a vise, and drive out the front bearing with a brass drift and hammer.

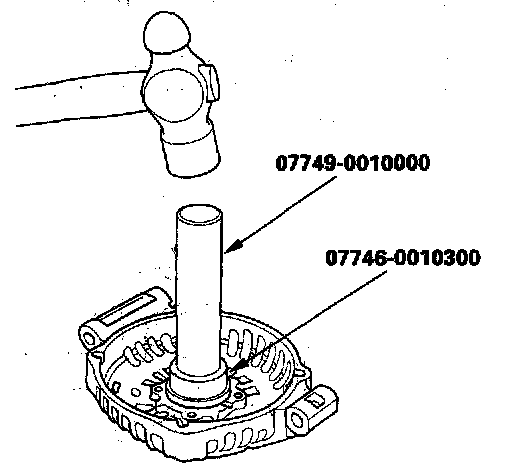

14. With a hammer and the special tools, install a new front bearing in the drive-end housing.

Alternator Brush Inspection




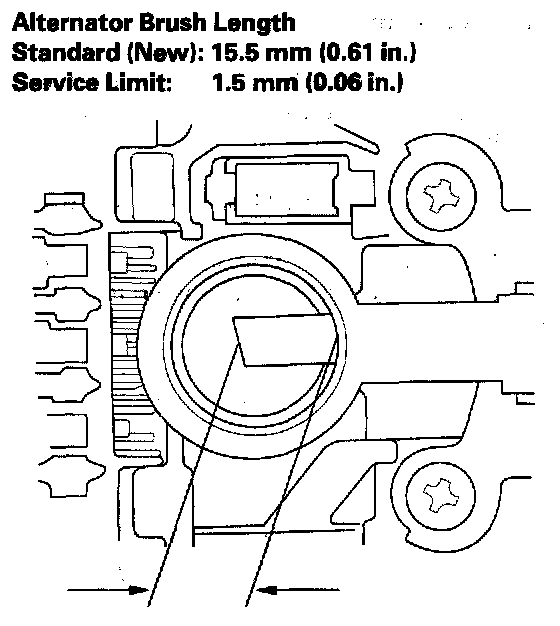

15. Measure the length of both brushes with vernier calipers.
- If either brush is shorter than the service limit, replace the rear housing assembly.
- If brush length is OK, go to step 16.

Rotor Slip Ring Test




16. Check for continuity between the slip rings (A).
- If there is continuity, got step 17.
- If there is no continuity, replace the rotor assembly.

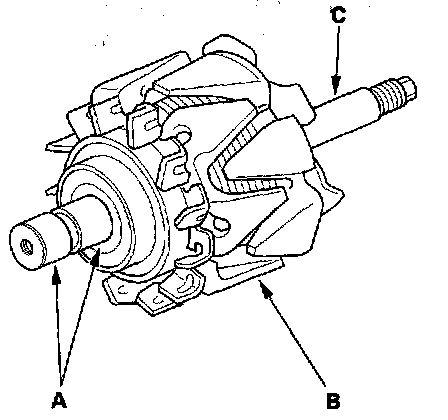

17. Check for continuity between each slip ring (A) and the rotor (B) and the rotor shaft (C).
- If there is no continuity, replace the rear housing assembly, go to step 18.
- If there is continuity, replace the rotor assembly.

Alternator Reassembly

18. If you removed the pulley, put the rotor in the drive-end housing, then tighten its locknut to 111 N-m (11.3kgf.m, 81.7lbf.ft).
19. Remove any grease or oil from the slip rings.

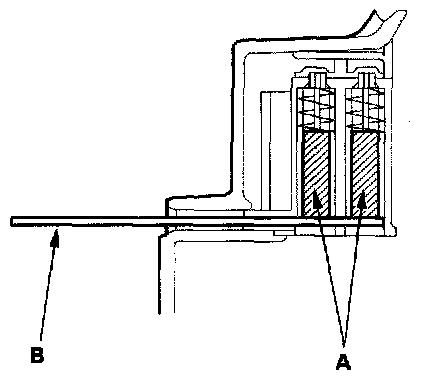

20. Push the brushes (A) in, then insert a pin or drill bit (B) (about 1.8 mm (0.77 in.) diameter) to hold them there.

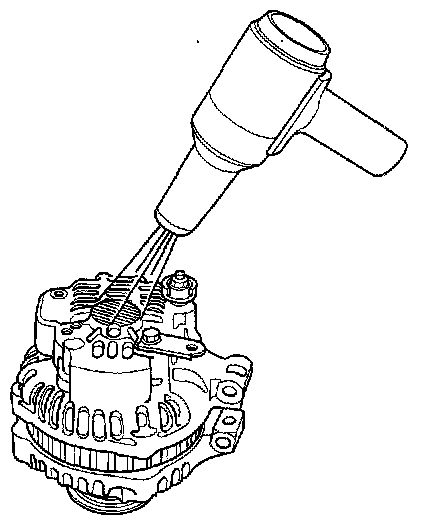

21. Heat the rear bearing seat with a 1,000 W hair drier for about 5 minutes (129-140 degrees F, 50-60 degrees C).

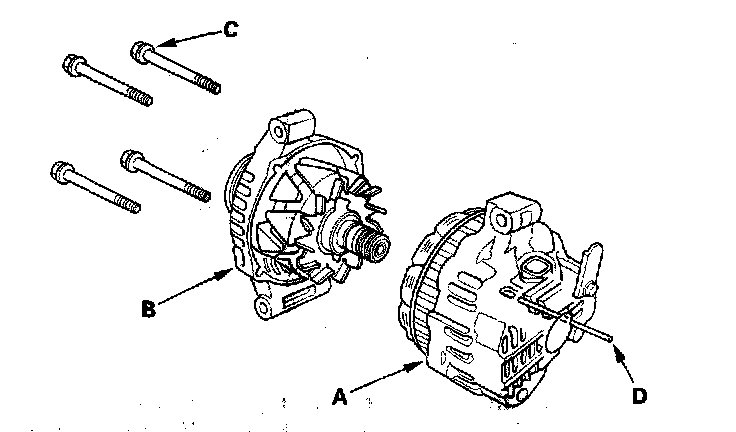

22. Put the rear housing assembly (A) and drive-end housing/rotor assembly (B) together, tighten the four through bolts (C), and pull out the pin (D).
23. After assembling the alternator, turn the pulley by hand to make sure the rotor rotates smoothly and without noise.
24. Install the alternator and drive belt.




Special Tools Required
- Driver 07749-0010000
- Attachment, 42 x 47 mm 07746-0010300

NOTE: Refer to the Exploded View as needed during this procedure.

Alternator Disassembly

1. Test the alternator and regulator before you remove them.
2. Remove the alternator.

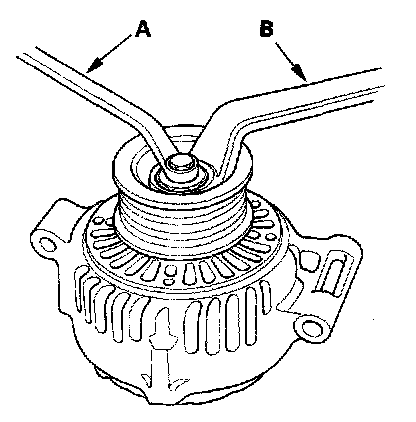

3. If the front bearing needs replacing, remove the pulley locknut with a 10 mm wrench (A) and a 22 mm wrench (B). If necessary, use an impact wrench.

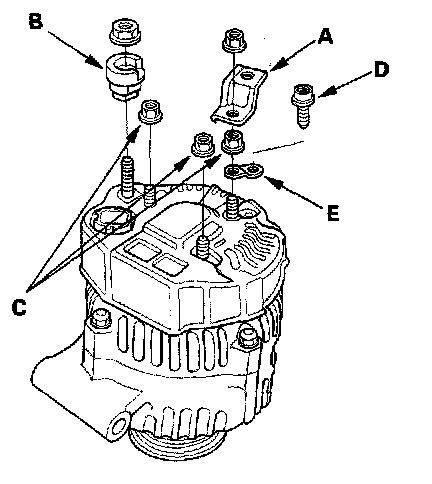

4. Remove the harness bracket (A), the insulator (B), the three flange nuts (C) and the screw (D), then remove the plate terminal (E).

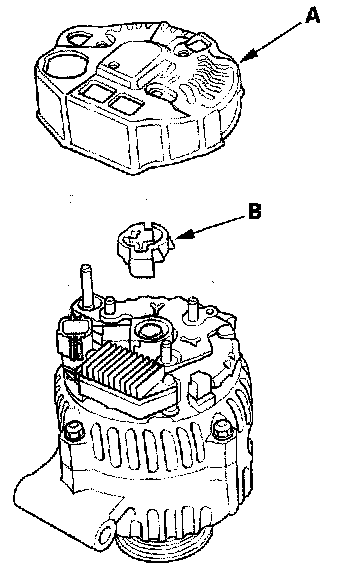

5. Remove the end cover (A) and the dust seal (B).

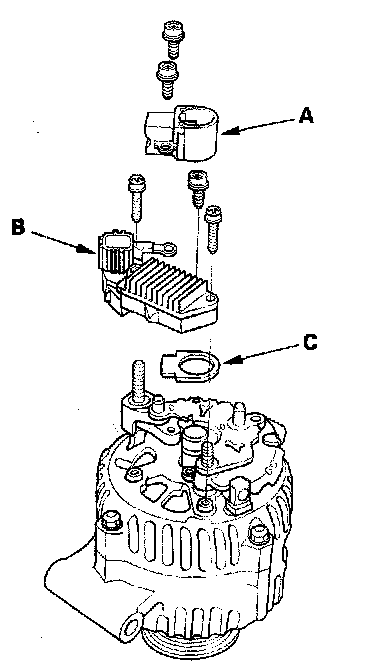

6. Remove the brush holder (A), the voltage regulator (B), and the rubber seal (C).

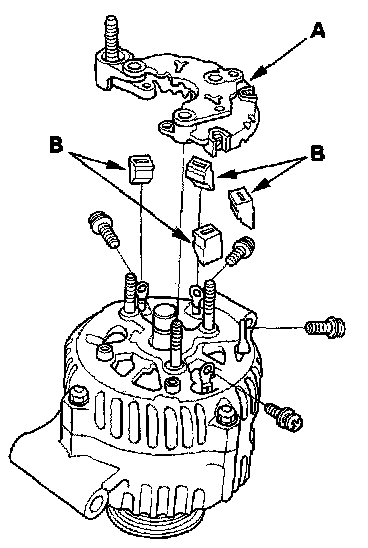

7. Remove the four screws, then remove the rectifier (A) and the four insulators (B).

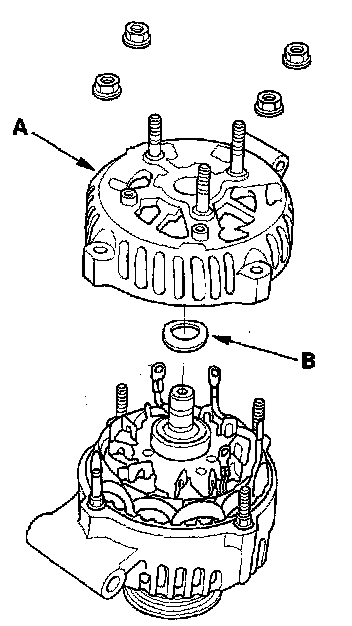

8. Remove the four flange nuts, then remove the rear housing (A) and the washer (B).




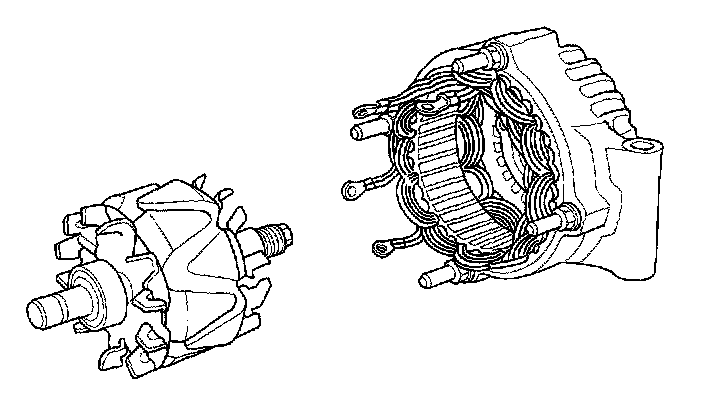

9. If you are not replacing the front bearing and/or rear bearing, go to step 16. Remove the rotor from the stator drive end housing.
10. Inspect the rotor shaft for scoring, and inspect the bearing journal surface in the stator housing for seizure marks.
- If either the rotor or stator housing is damaged, replace the alternator.
- If both the rotor and the stator housing are OK, go to step 11.

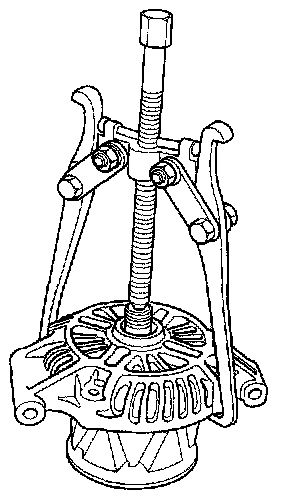

11. Remove the rear bearing using a puller as shown.




12. With a hammer and commercially available tools shown, install a new rear bearing on the rotor shaft.

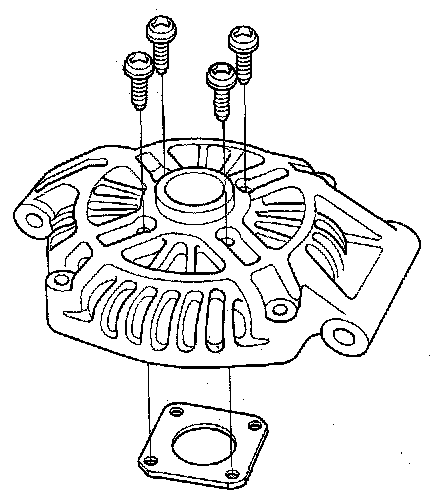

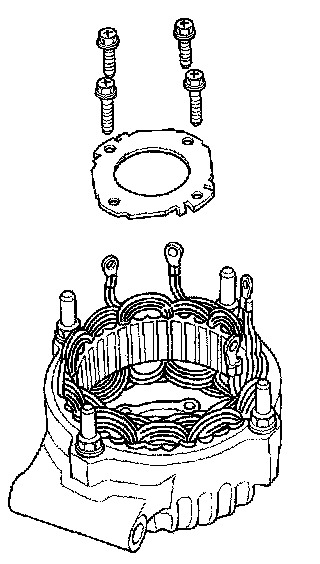

13. Remove the front bearing retainer plate.

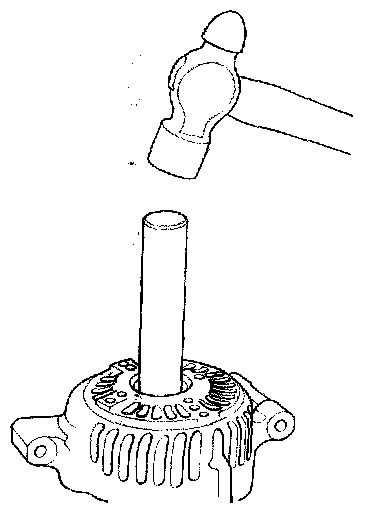

14. Support the stator housing in a vise, and drive out the front bearing with a brass drift and hammer.




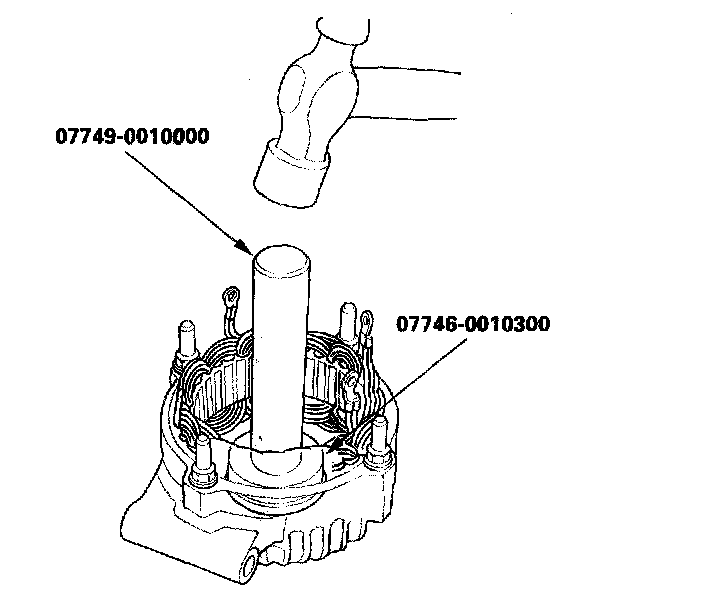

15. With a hammer and the special tools, install a new front bearing in the stator housing.

Rectifier Test

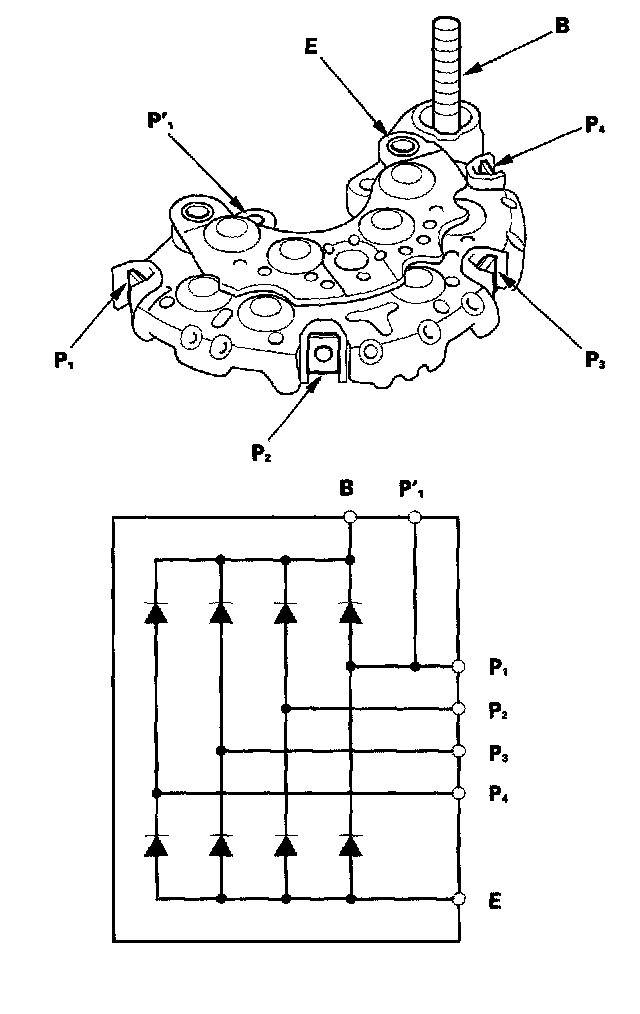

16. Check for continuity in each direction, between the B terminal and terminals, and between the E terminal and terminals of each diode pair. All diodes should have continuity in only one direction. Because the rectifier diodes are designed to allow current to pass in one direction, and the rectifier is made up of eight diodes (four pairs), you must test each diode in both directions for continuity with an ohmmeter that has diode checking capability: a total of 16 checks.
- If any diode is faulty, replace the rectifier assembly. (Diodes are not available separately.)
- If all the diodes are OK, go to step 17.

Alternator Brush Inspection

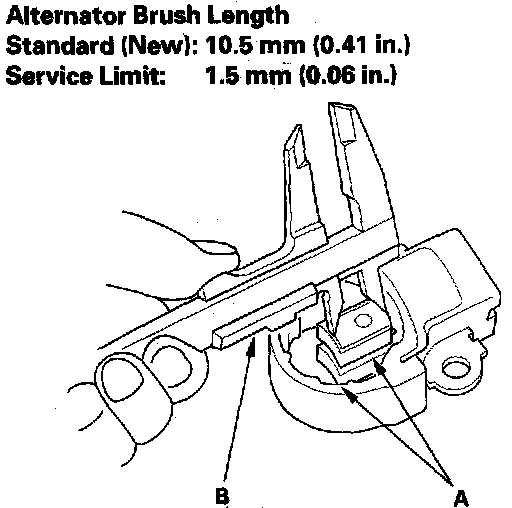

17. Measure the length of both brushes (A) with vernier caliper(B).
- If either brush is shorter than the service I replace the brush assembly.
- If brush length is OK, go to step 18.

Rotor Slip Ring test




18. Check for continuity between the slip rings (A).
- If there is continuity, go to step 19.
- If there is no continuity, replace the alternator.

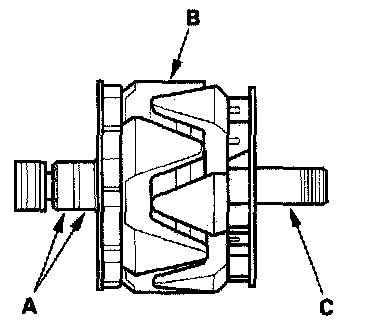

19. Check for continuity between each slip ring and the rotor (B) and the rotor shaft (C).
- If there is no continuity, go to step 20.
- If there is continuity, replace the alternator.

Stator Test

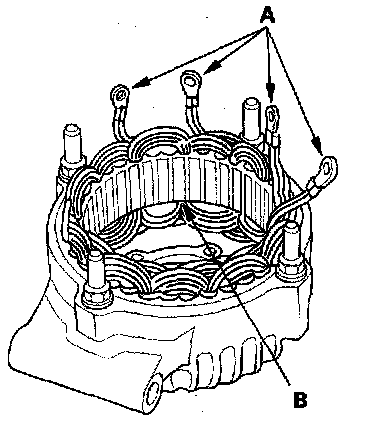

20. Check for continuity between each pair of leads (A).
- If there is continuity, go to step 21.
- If there is no continuity, replace the alternator.
21. Check for continuity between each lead and the coil core (B).
- If there is no continuity, go to step 22.
- If there is continuity, replace the alternator.
22. Assemble the alternator in the reverse order of disassembly, and note these items:
- Be careful not to get any grease or oil oh the slip rings.
- If you removed the pulley, tighten its locknut to 111 N.m (11.3 kgf.m, 81.7 lbf.ft) when you install it.
