Home >> Acura >> 2006 >> RSX L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> Axle Nut

Axle Nut

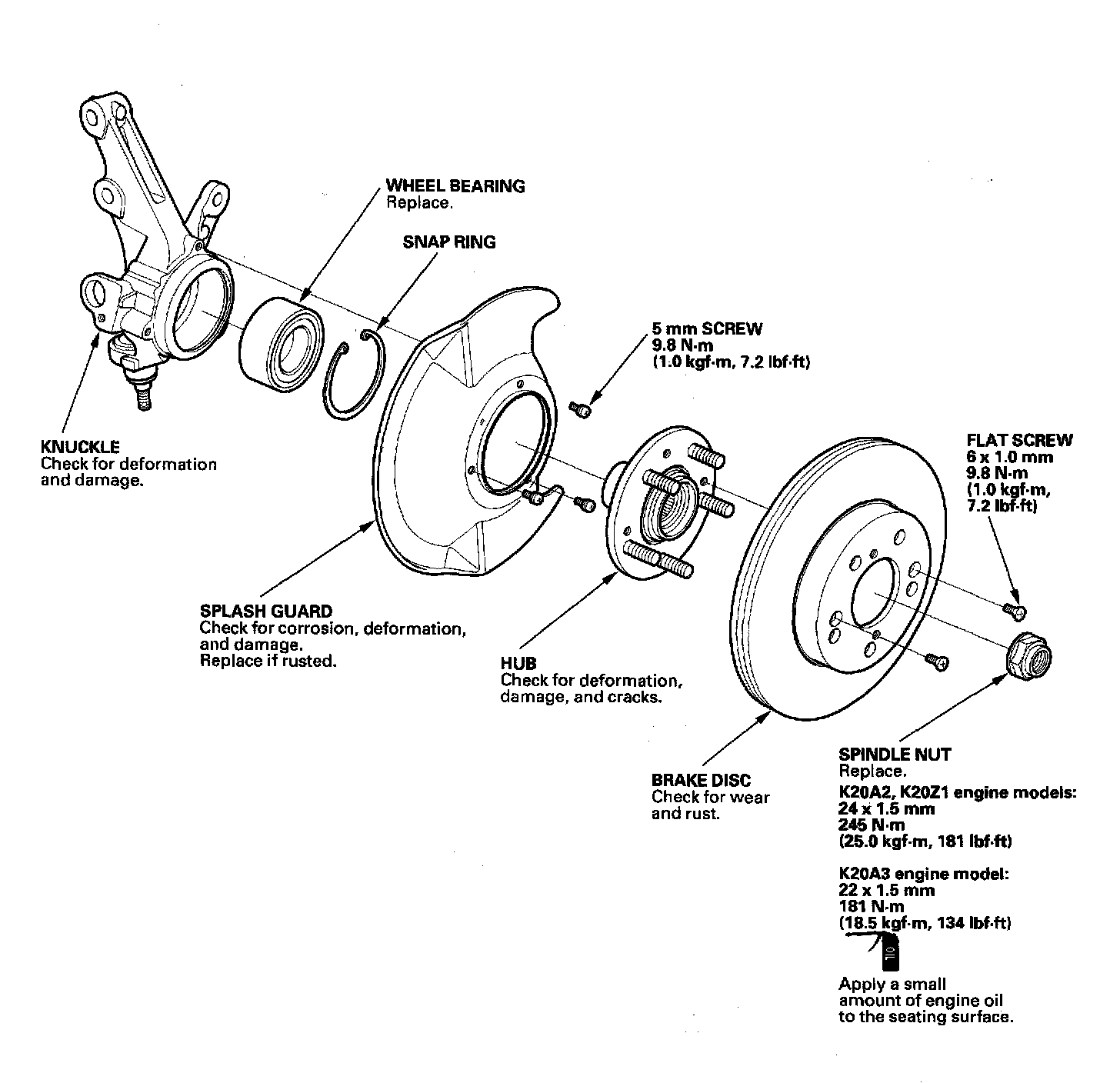

Front suspension


Front:

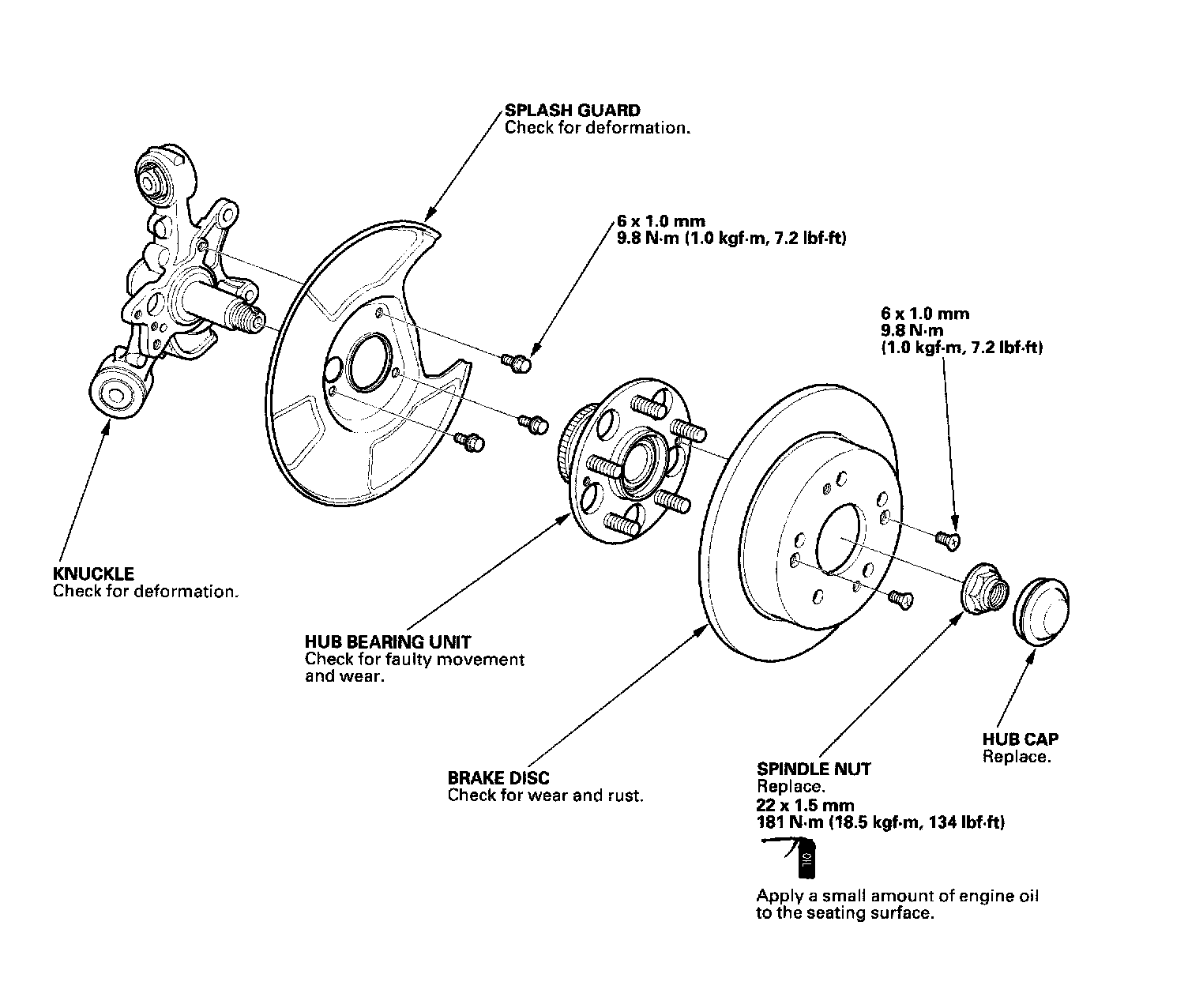

Rear Suspension

Rear:
