RSX L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission Control Diagram
Automatic Transmission Control Diagram

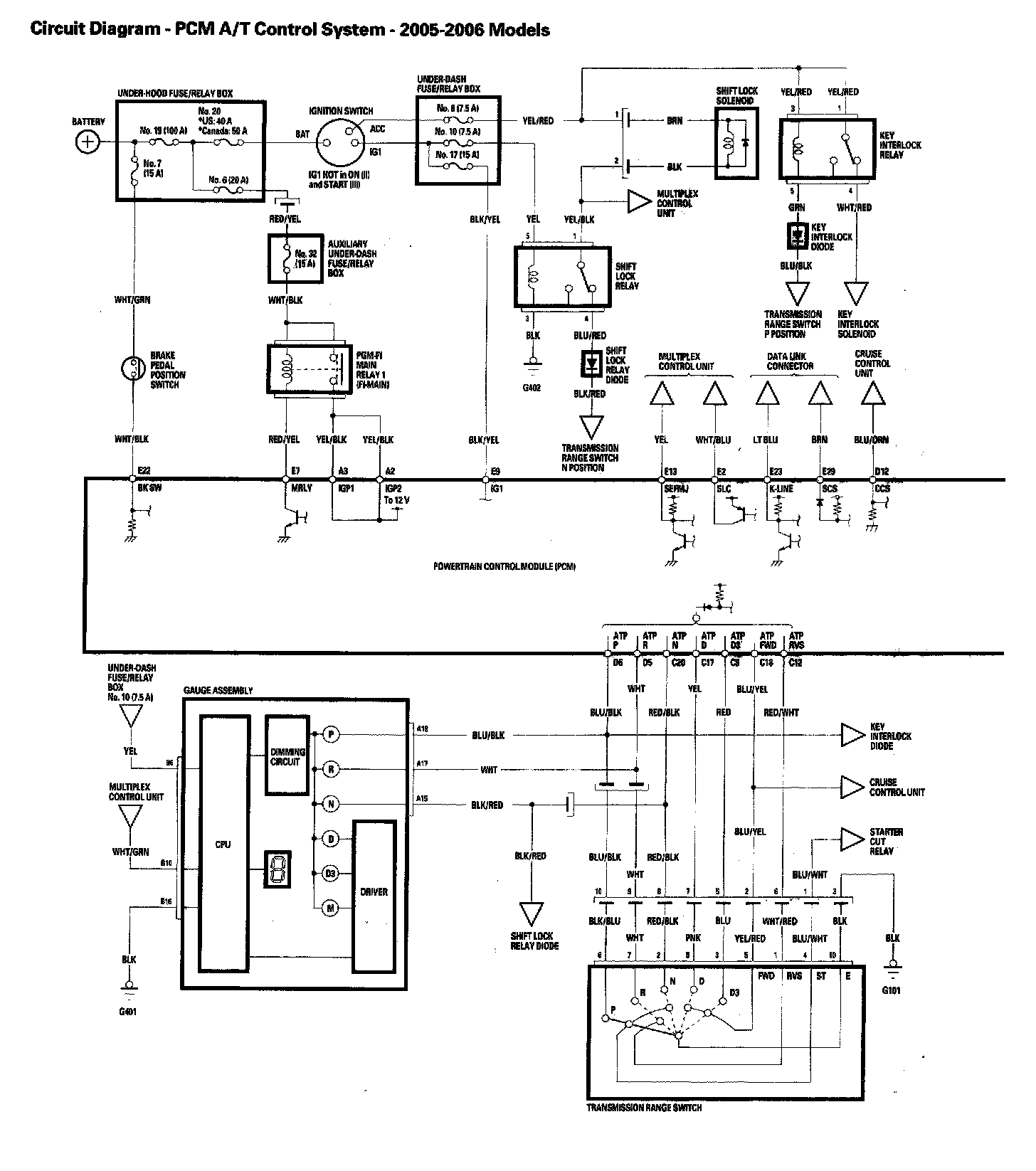

PCM A/T Control System Circuit Diagram (part 1):

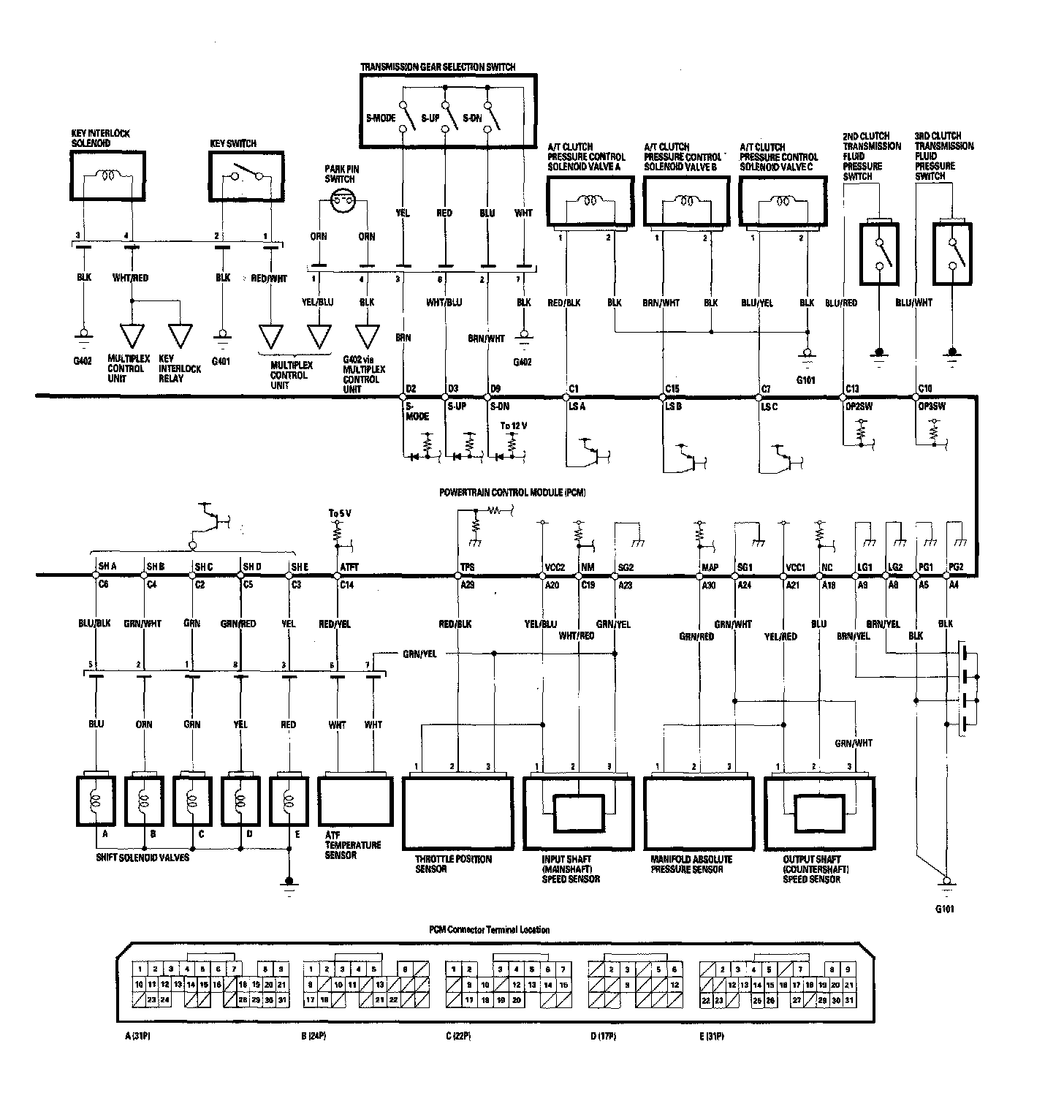

PCM A/T Control System Circuit Diagram (part 2):
