Fuel Pressure Regulator: Service and Repair

Fuel Pressure Regulator Replacement 2005-2006 models

1. Remove the fuel pump.

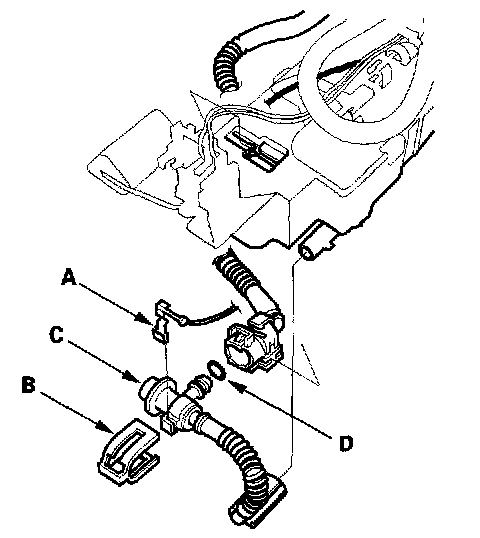

2. Remove the terminal (A) and clip (B).
3. Remove the fuel pressure regulator (C).
4. Install the regulator in the reverse order of removal with a new O-ring (D).
