Multiplex Control System Circuit Diagram

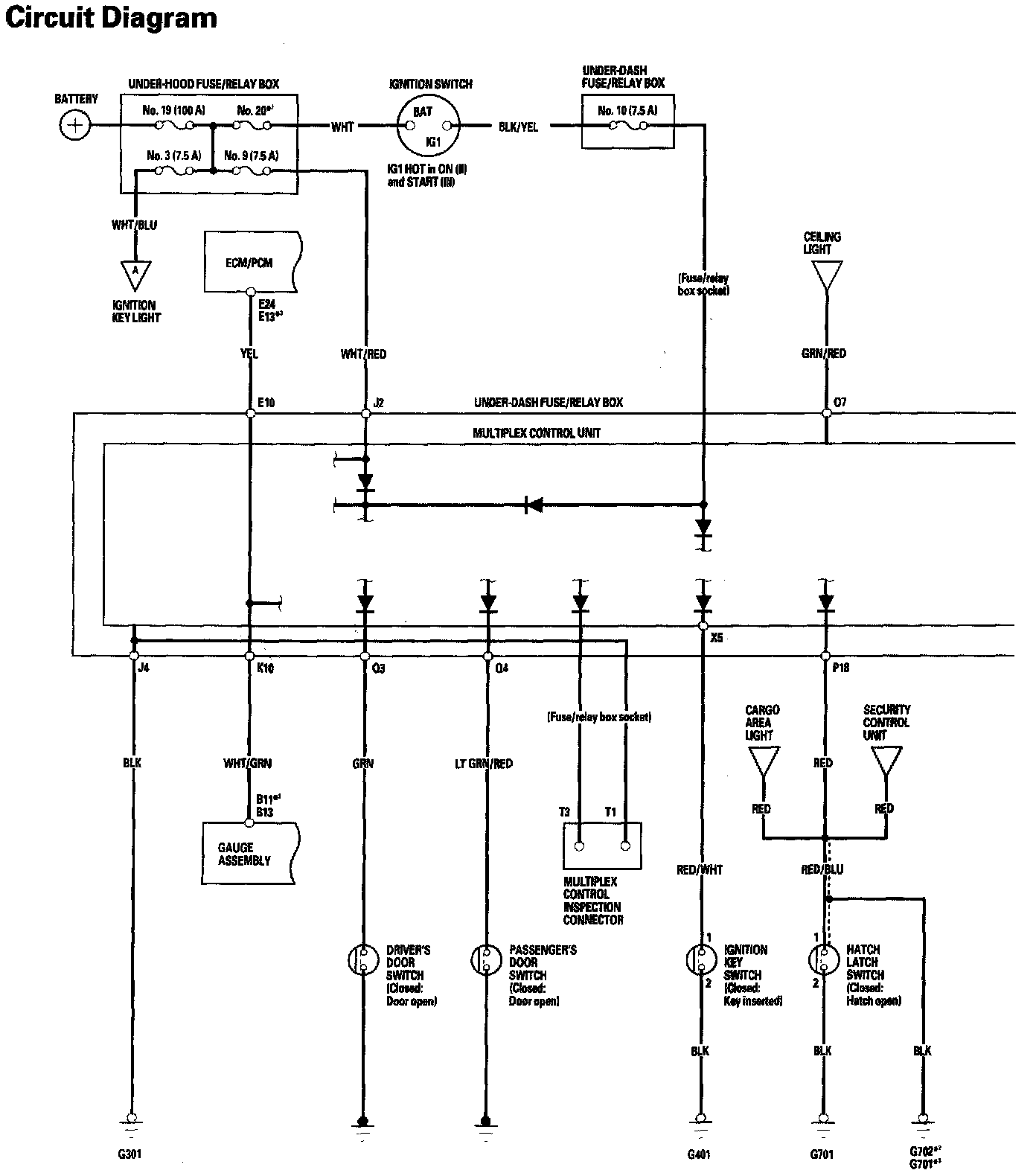

Multiplex Control System - Circuit Diagram Part 1:



Multiplex Control System - Circuit Diagram Part 2:
