Valve: Testing and Inspection

Valve Inspection
1. Remove the valves.

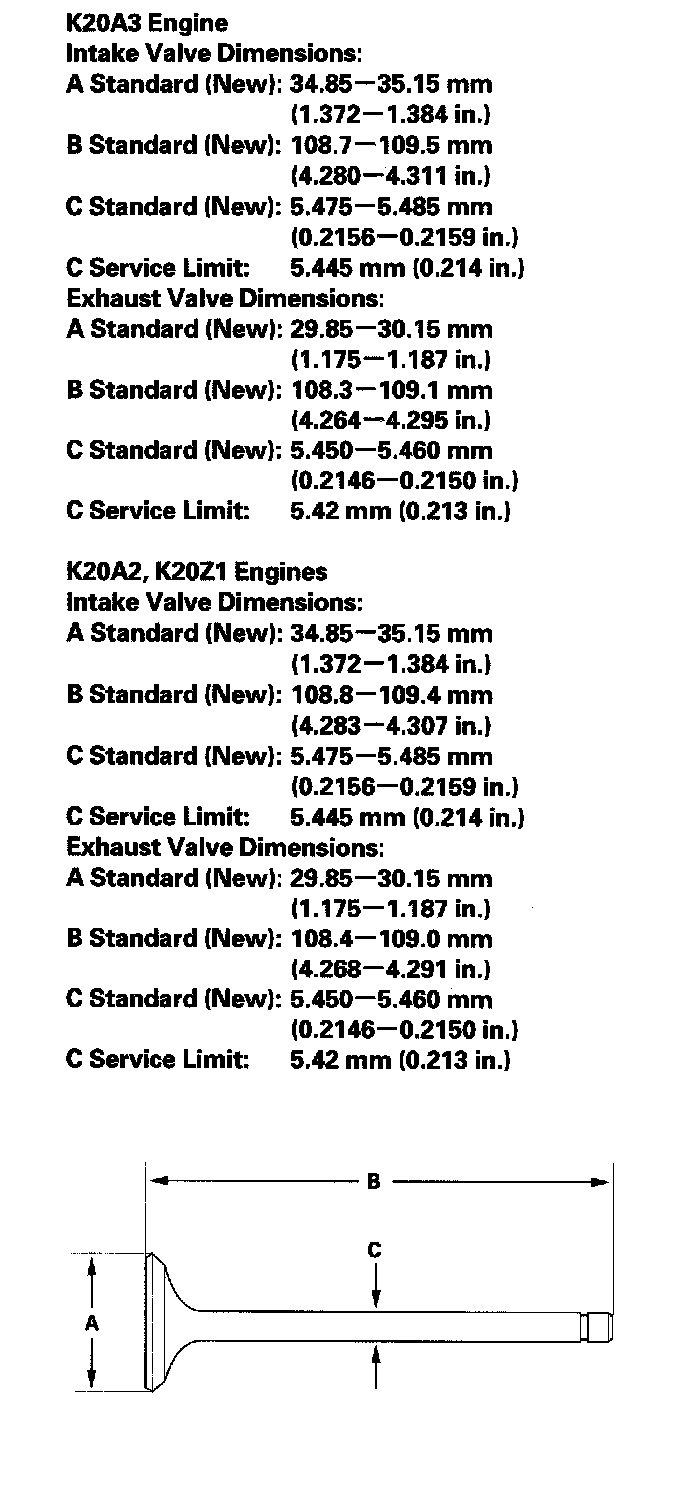

2. Measure the valve in these areas.
