Thermostat Housing: Service and Repair

Water Outlet Replacement

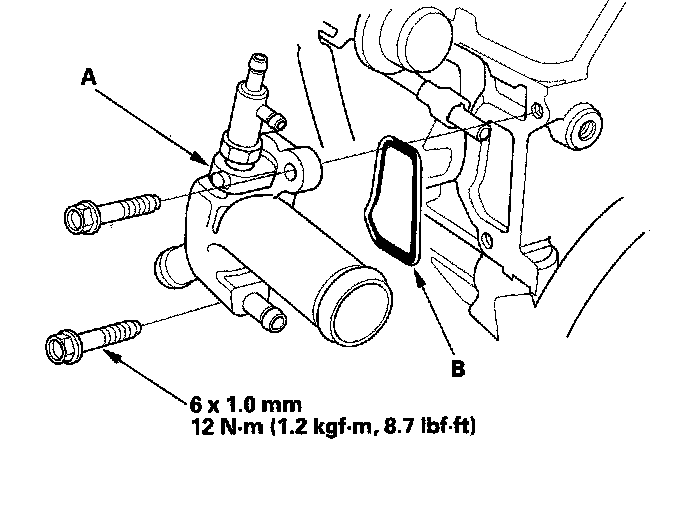

Replace the water outlet (A). Discard the old O-ring (B) and replace it with a new one.
