Home >> Acura >> 2006 >> RSX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Auxiliary Power Outlet

Auxiliary Power Outlet

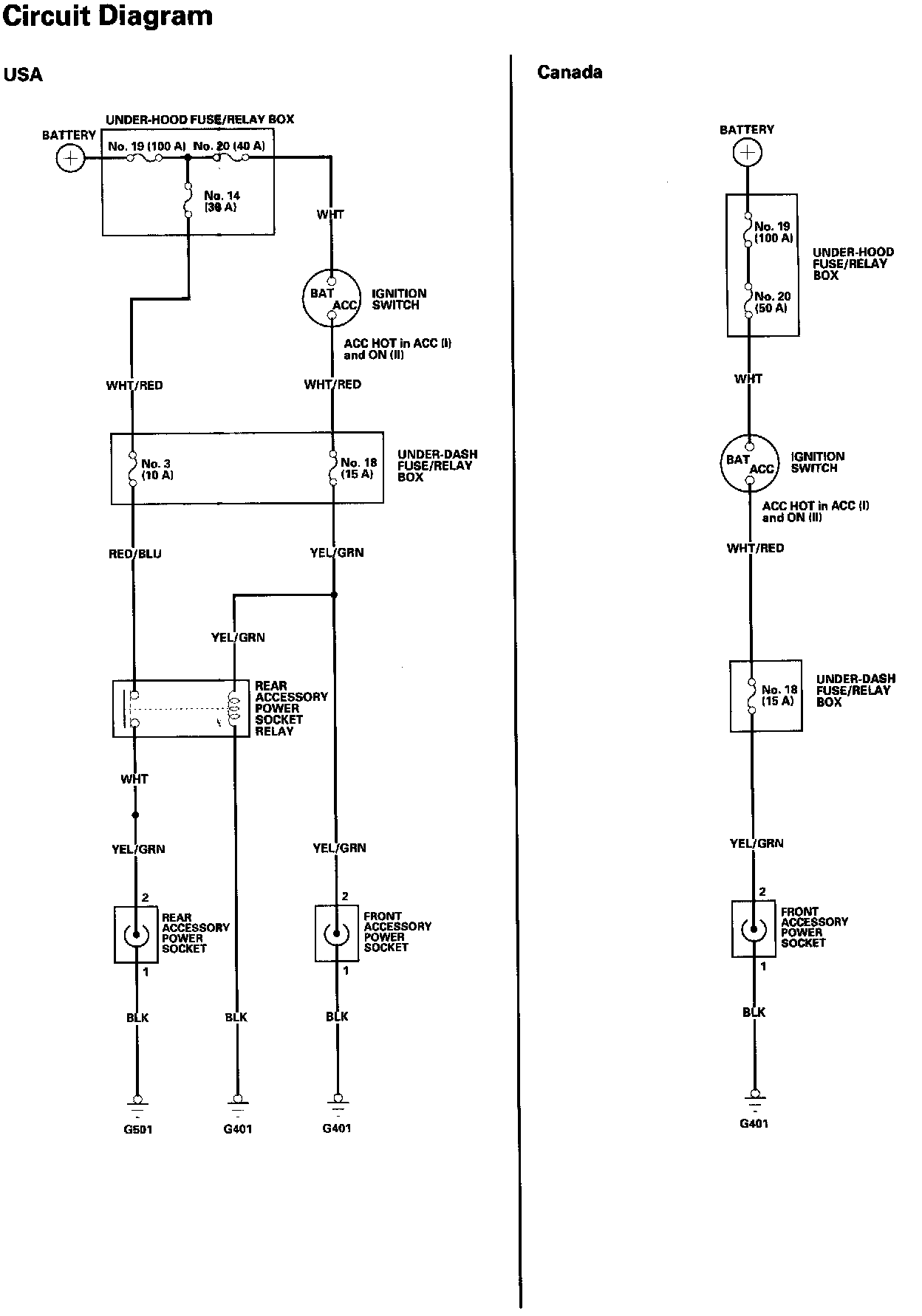

Accessory Power Sockets - Circuit Diagram:
