Climate Control Circuit Diagram

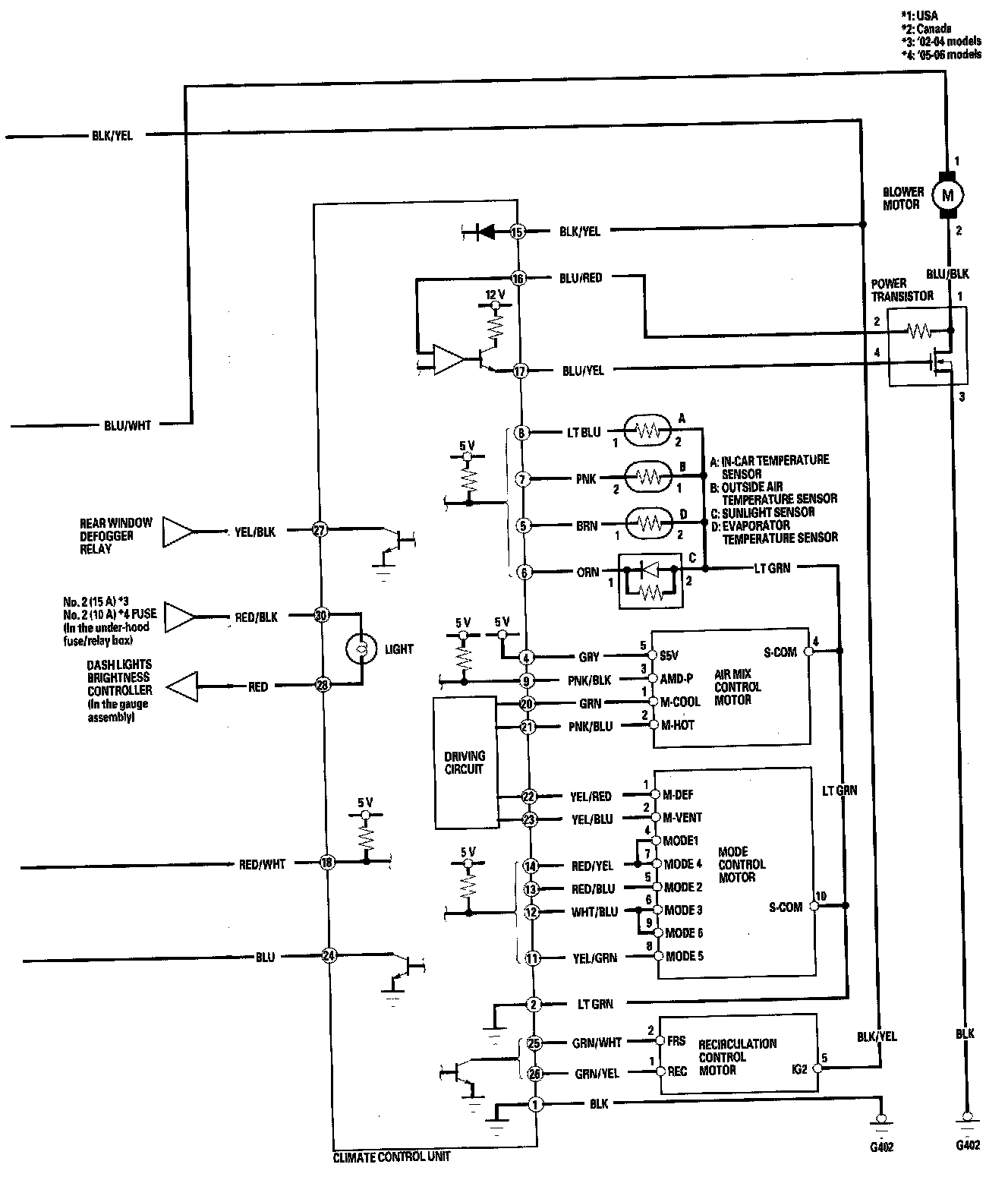

Climate Control - Circuit Diagram Part - 1:

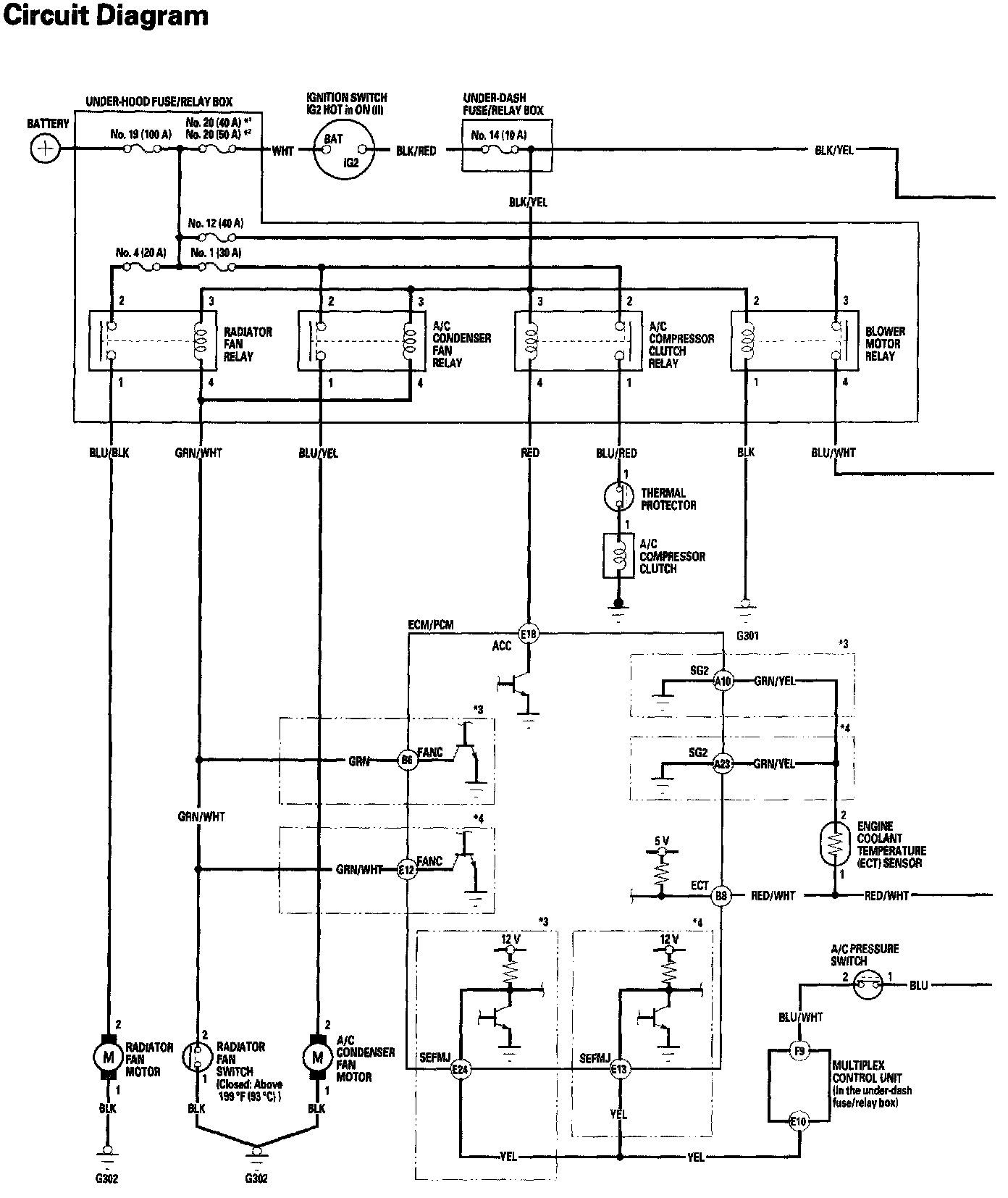

Climate Control - Circuit Diagram Part - 2:
