ABS/TCS Circuit Diagram

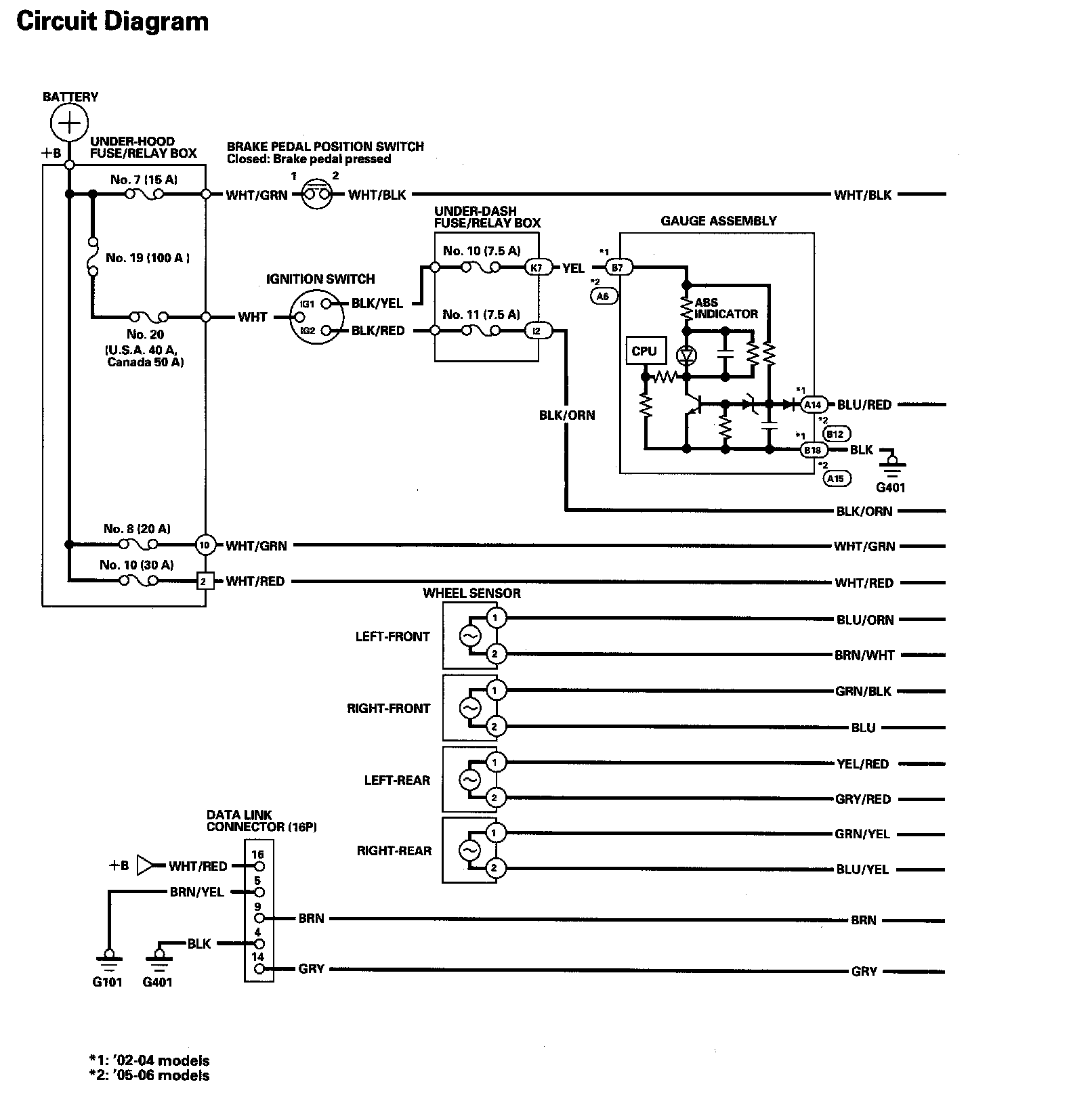

ABS System Circuit Diagram Part 1:

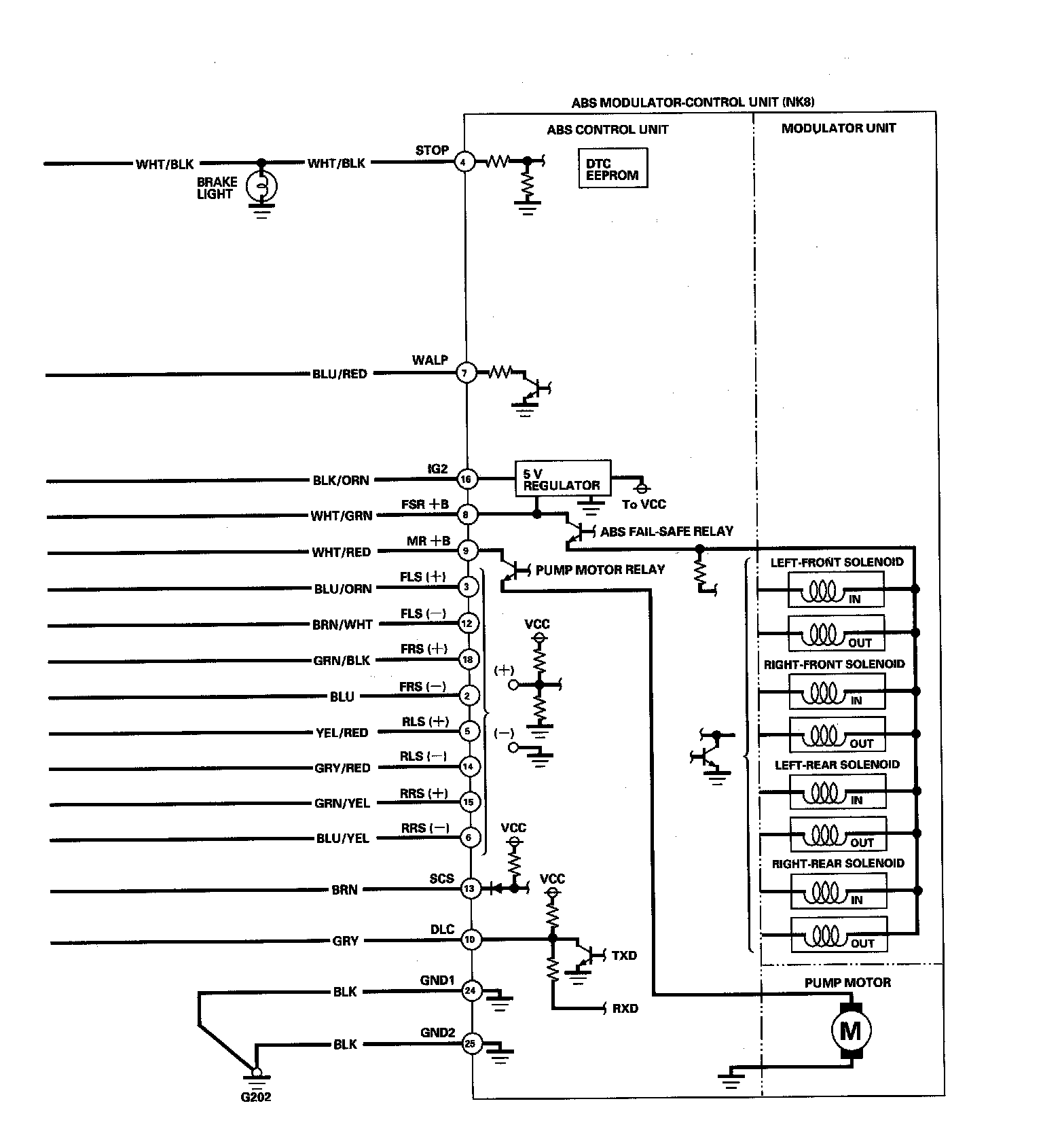

ABS System Circuit Diagram Part 2:

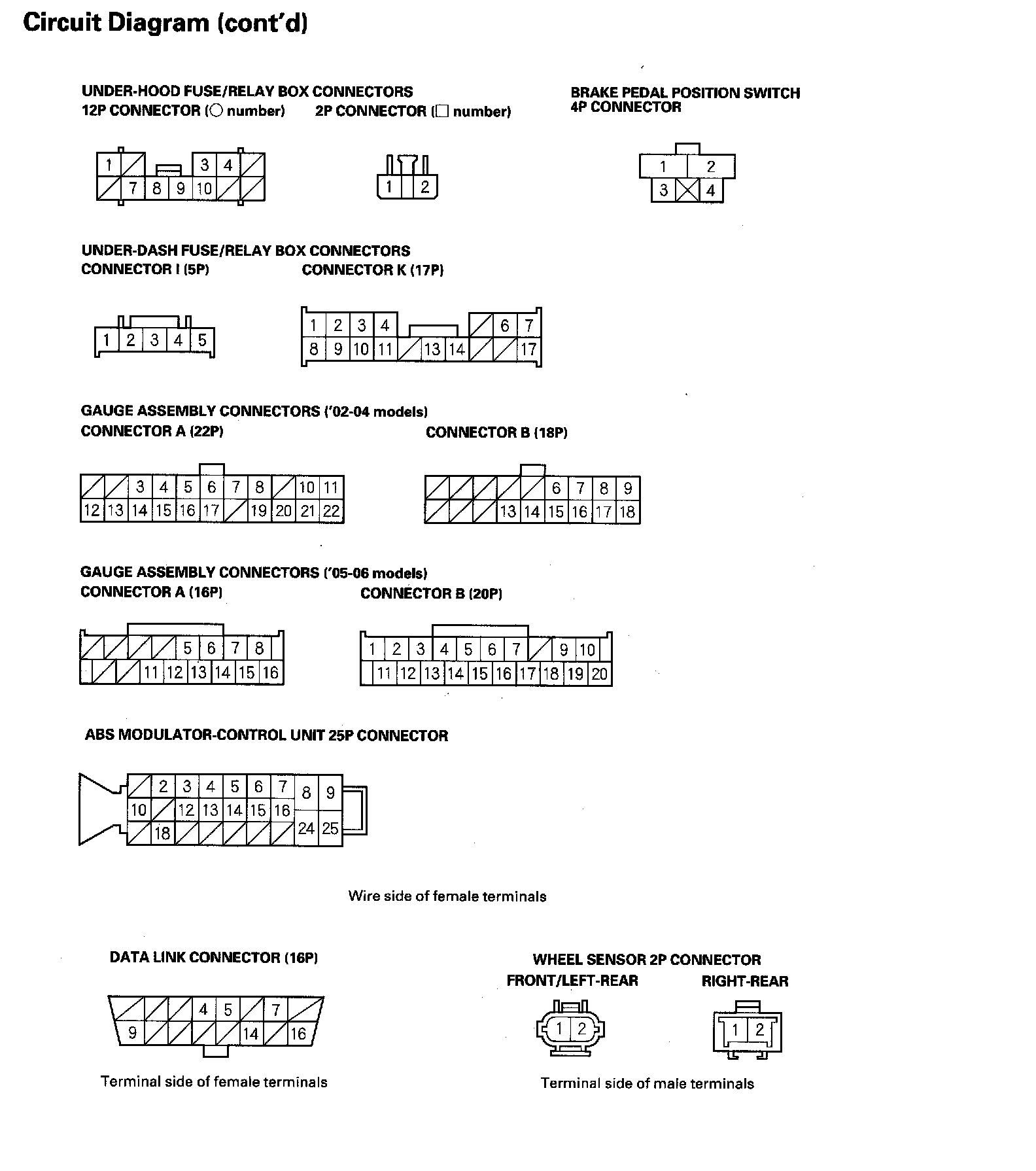

ABS System Circuit Diagram Part 3:
