Home >> Acura >> 2006 >> RSX L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams >> Electrical Diagrams >> Seat Heater Circuit Diagram

Seat Heater Circuit Diagram

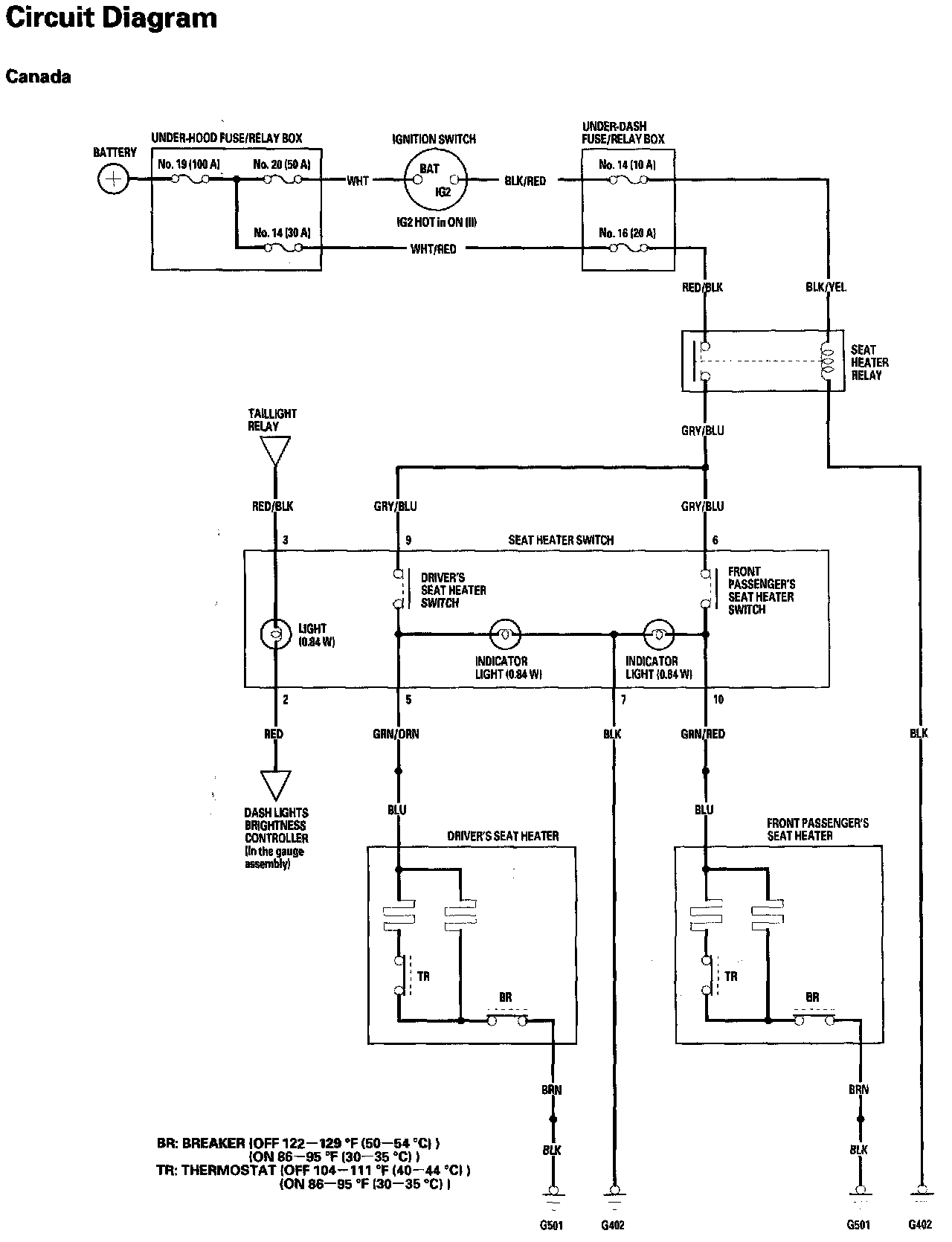

Seat Heaters - Circuit Diagram:
