Audio System Circuit Diagram

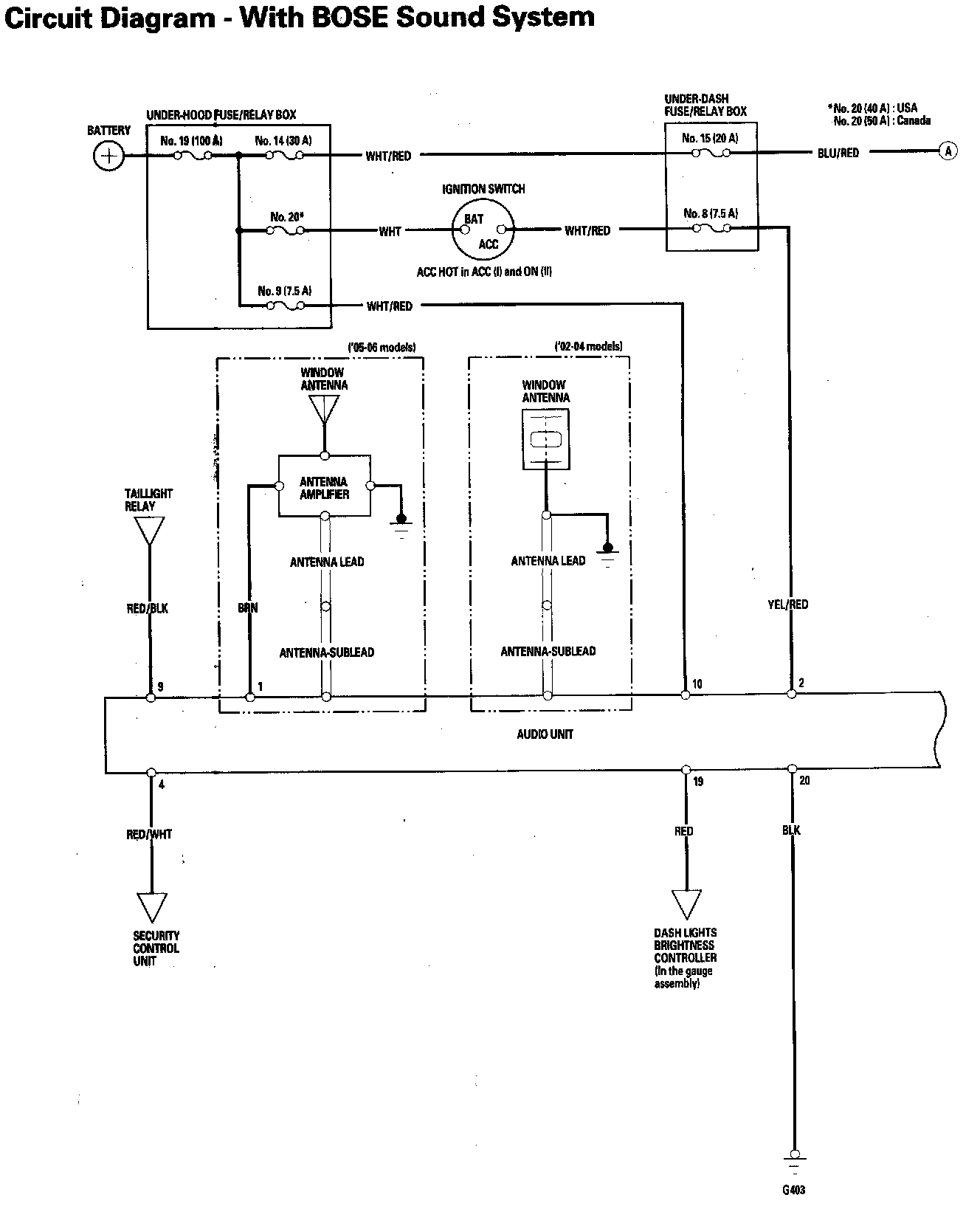

Audio System - Circuit Diagram - With BOSE Sound System Part 1:

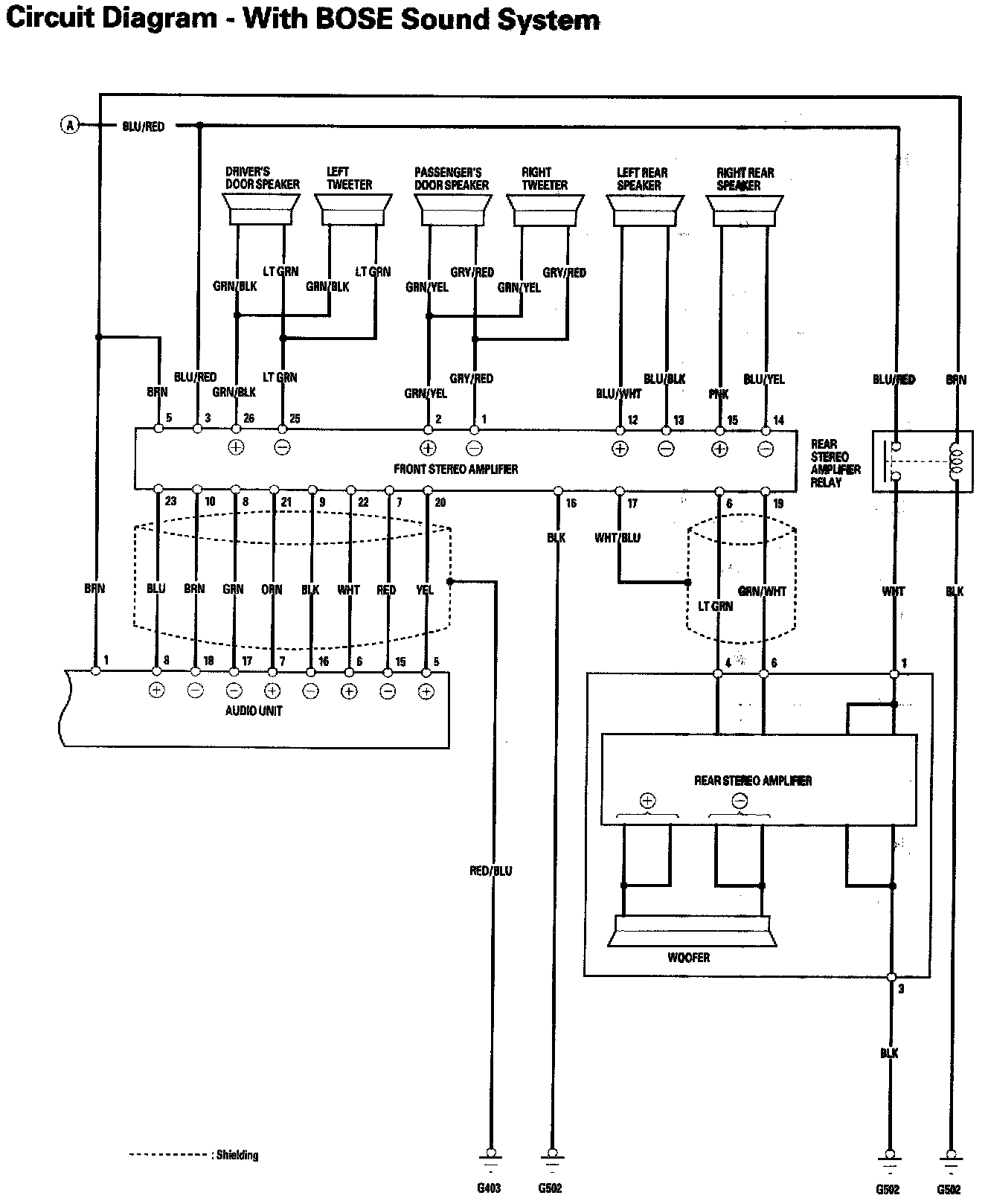

Audio System - Circuit Diagram - With BOSE Sound System Part 2:

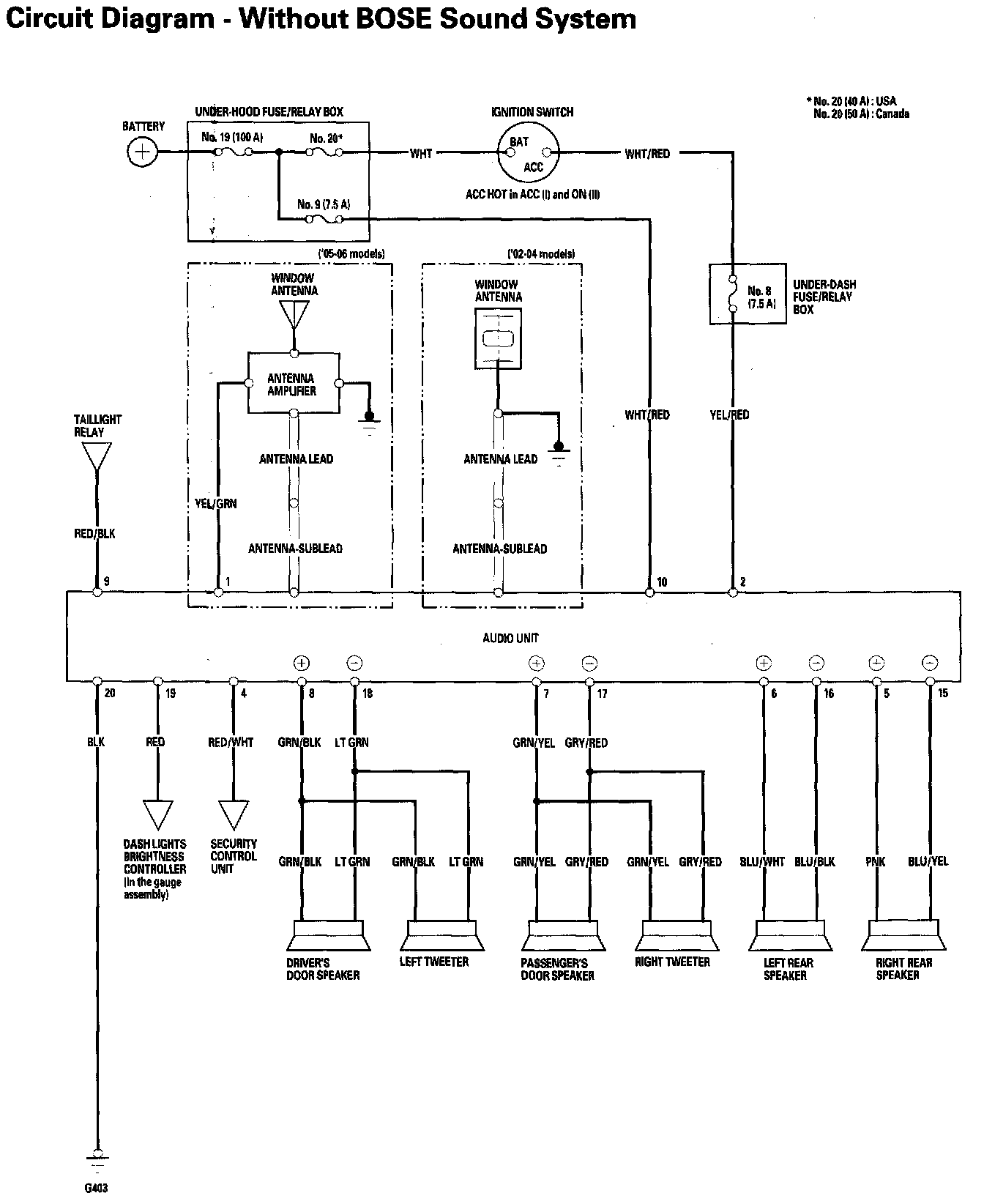

Audio System - Circuit Diagram - Without BOSE Sound System:
