4. Change Lever Assembly Disassembly/Reassembly

Change Lever Assembly Disassembly/Reassembly
Prior to reassembling, clean all the parts in solvent, dry them, and apply grease to the contact surfaces as shown.

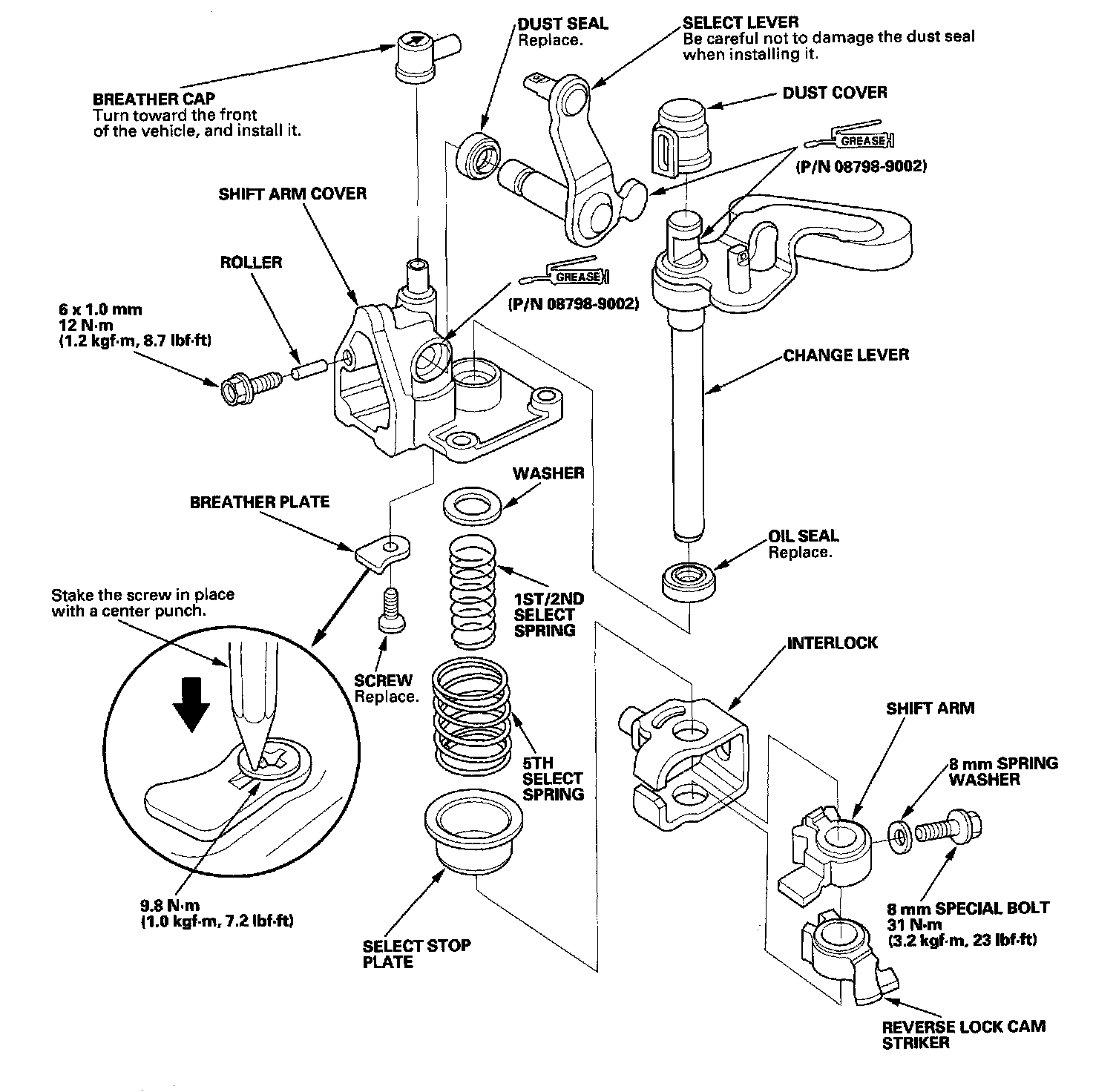

5-speed model:

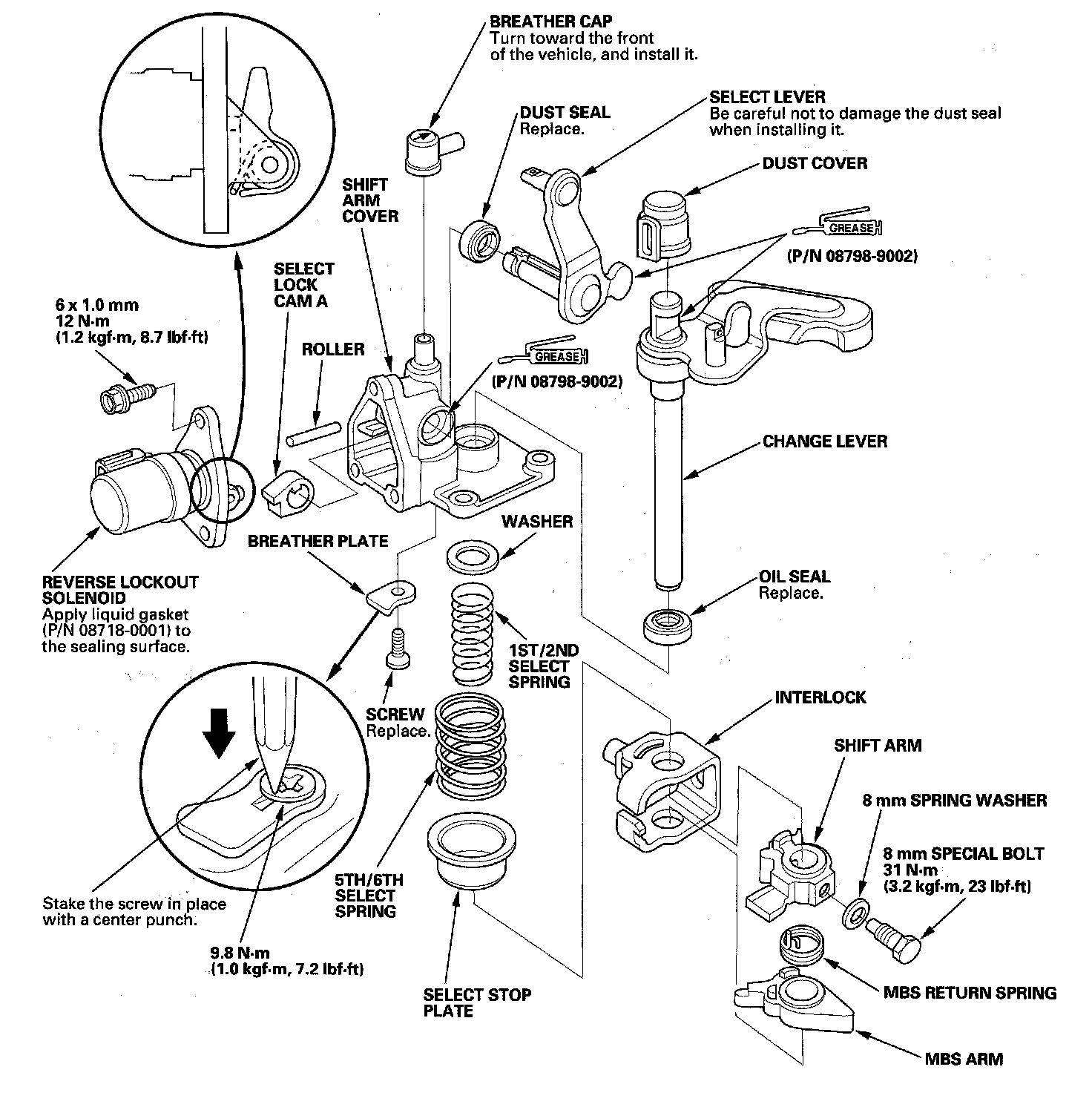

6-speed model:

NOTE:
- If 5 minutes have passed after applying liquid gasket, reapply it, and assemble the shift arm cover.
- Prior to reassembling, clean all parts in solvent, dry them, and apply grease to the contact surfaces as shown.
