11. Countershaft Assembly Clearance Inspection

Countershaft Assembly Clearance Inspection

NOTE: 6-speed model is shown, 5-speed model is similar.

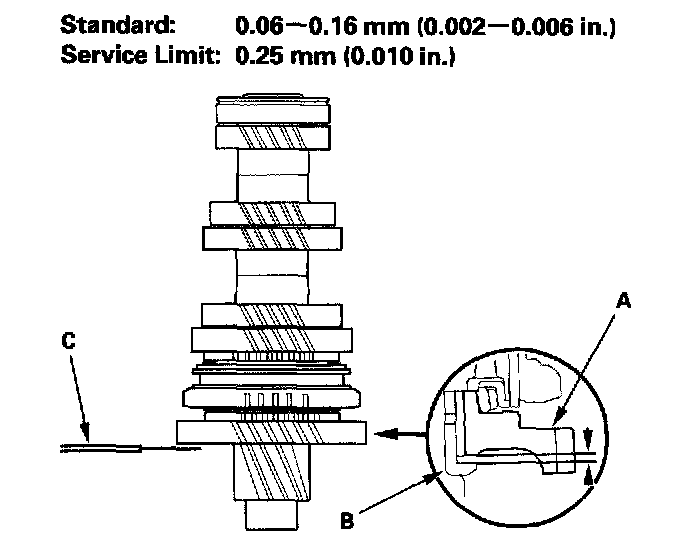

1. Measure the clearance between 1st gear (A) and the distance collar (B) with a feeler gauge (C). If the clearance is more than the service limit, go to step 2.

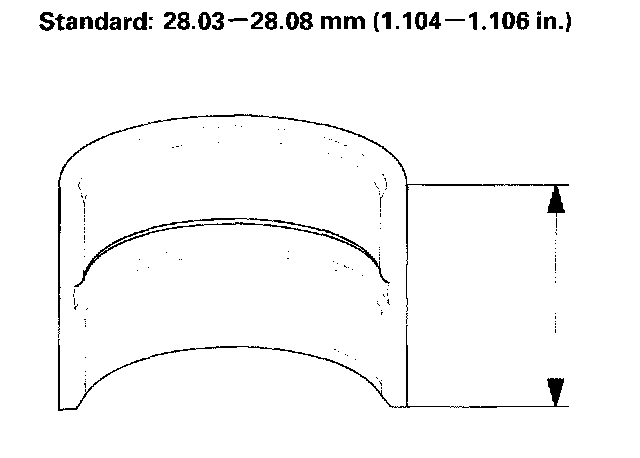

2. Measure the thickness of the distance collar.
- If the thickness is not within the standard, replace the distance collar.
- If the thickness is within the standard, go to step 3.

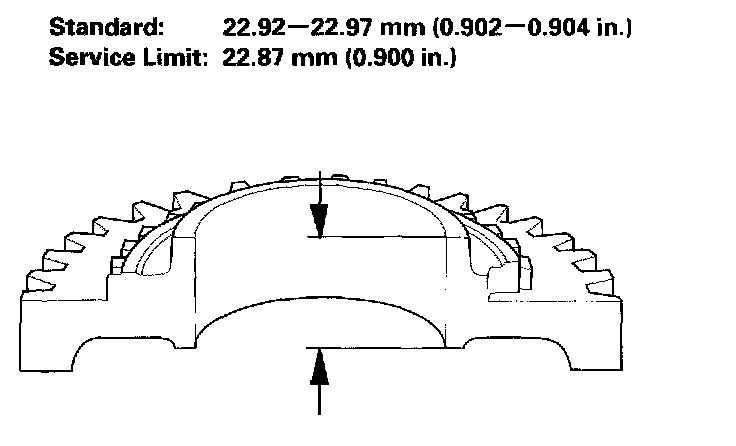

3. Measure the thickness of 1st gear.
- If the thickness is less than the service limit, replace 1st gear.
- If the thickness is within the service limit, replace the 1st/2nd synchro hub.

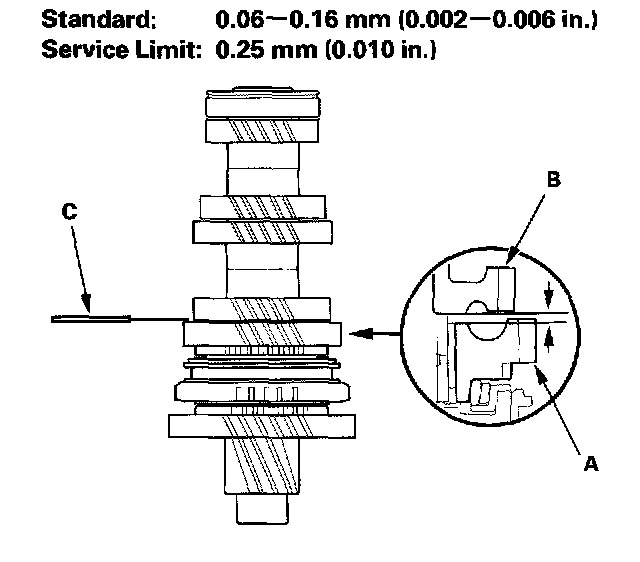

4. Measure the clearance between 2nd gear (A) and 3rd gear (B) with a feeler gauge (C). If the clearance is more than the service limit, go to step 5.

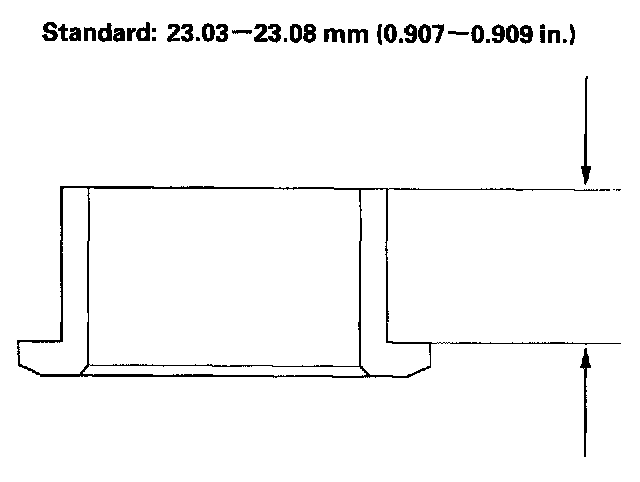

5. Measure the thickness of the distance collar.
- If the thickness is not within the standard, replace the distance collar.
- If the thickness is within the standard, go to step 6.

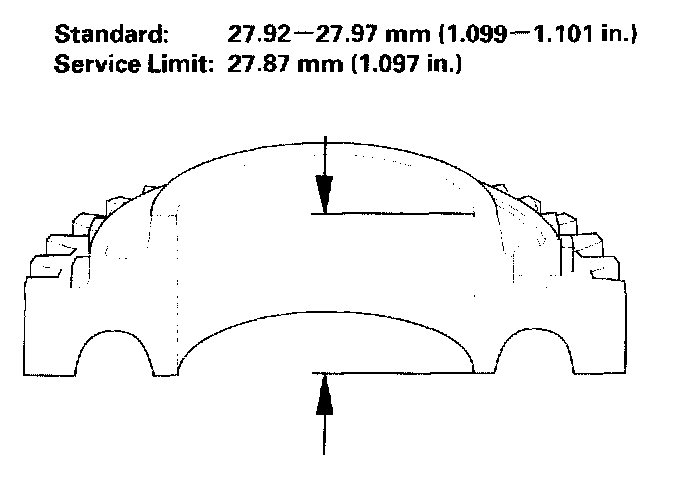

6. Measure the thickness of 2nd gear.
- If the thickness is less than the service limit, replace 2nd gear.
- If the thickness is within the service limit, replace the 1st/2nd synchro hub.
