Home >> Acura >> 2005 >> RSX L4-2.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Grounding Point >> Application and ID

Grounding Point: Application and ID

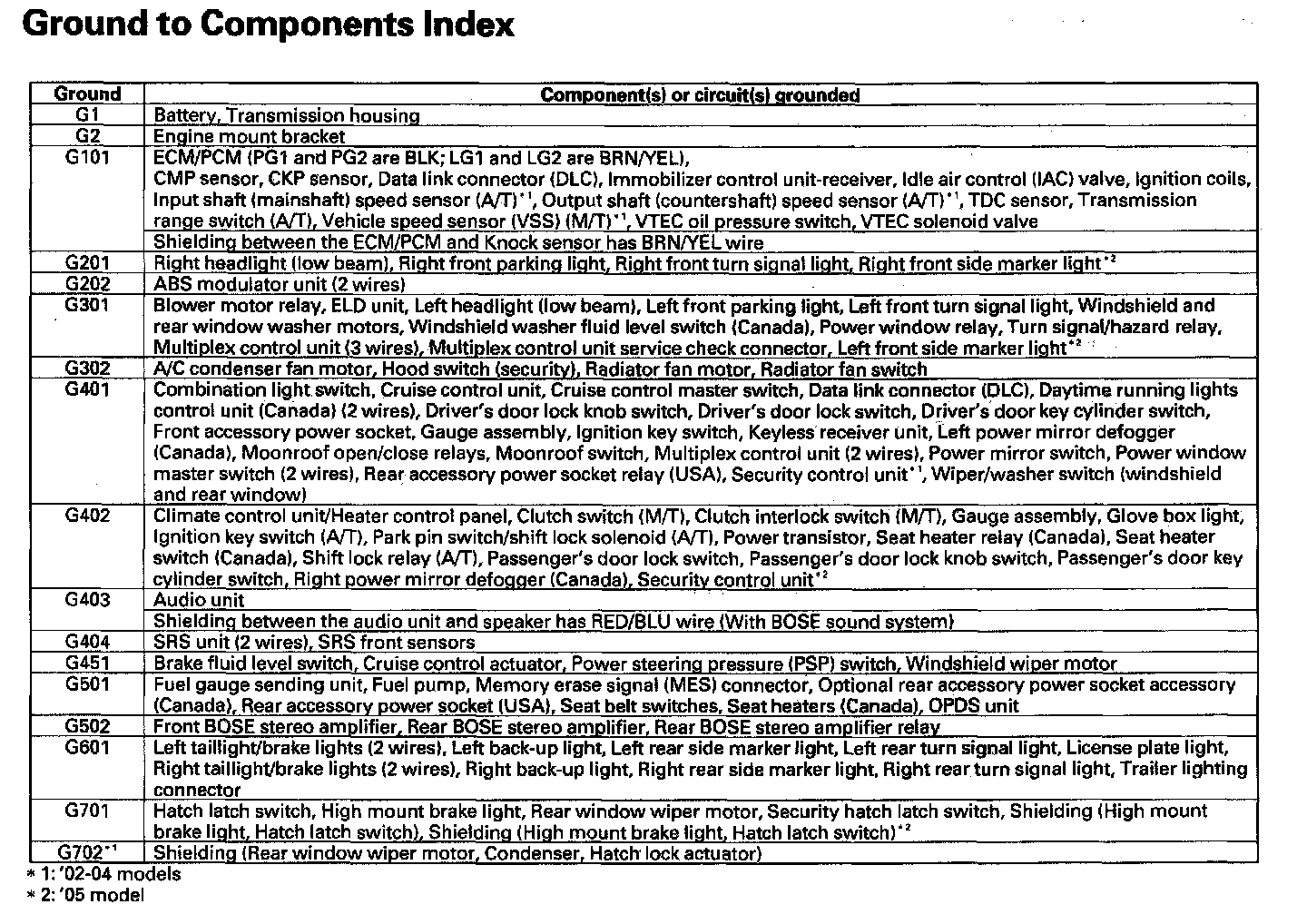

Ground To Component Index:
