Torque Specifications

Clutch




Flywheel
Torque the flywheel mounting bolts in a crisscross pattern in several steps.

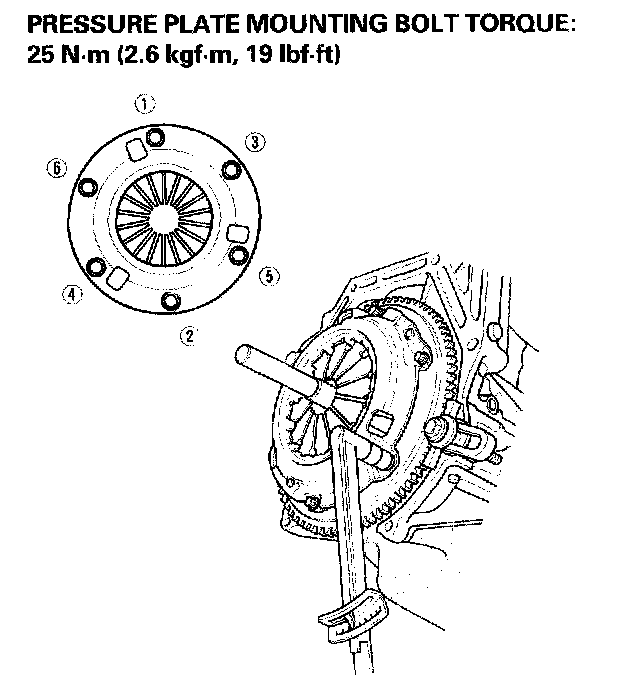

Pressure Plate
Torque the mounting bolts in a crisscross pattern. Tighten the bolts in several steps to prevent warping the diaphragm spring.
