Data Link Connector: Locations

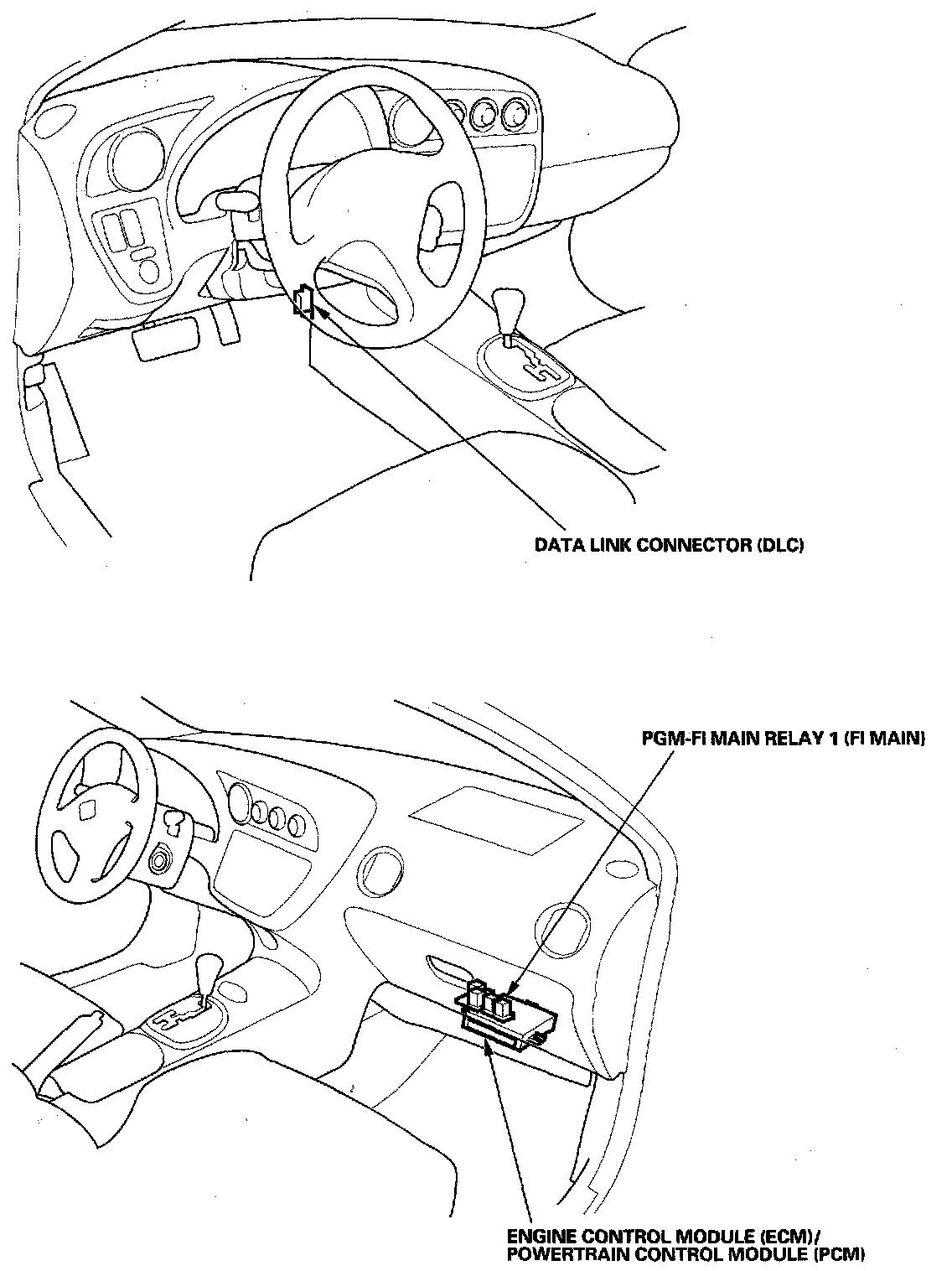

PGM-FI System - Component Location Index:

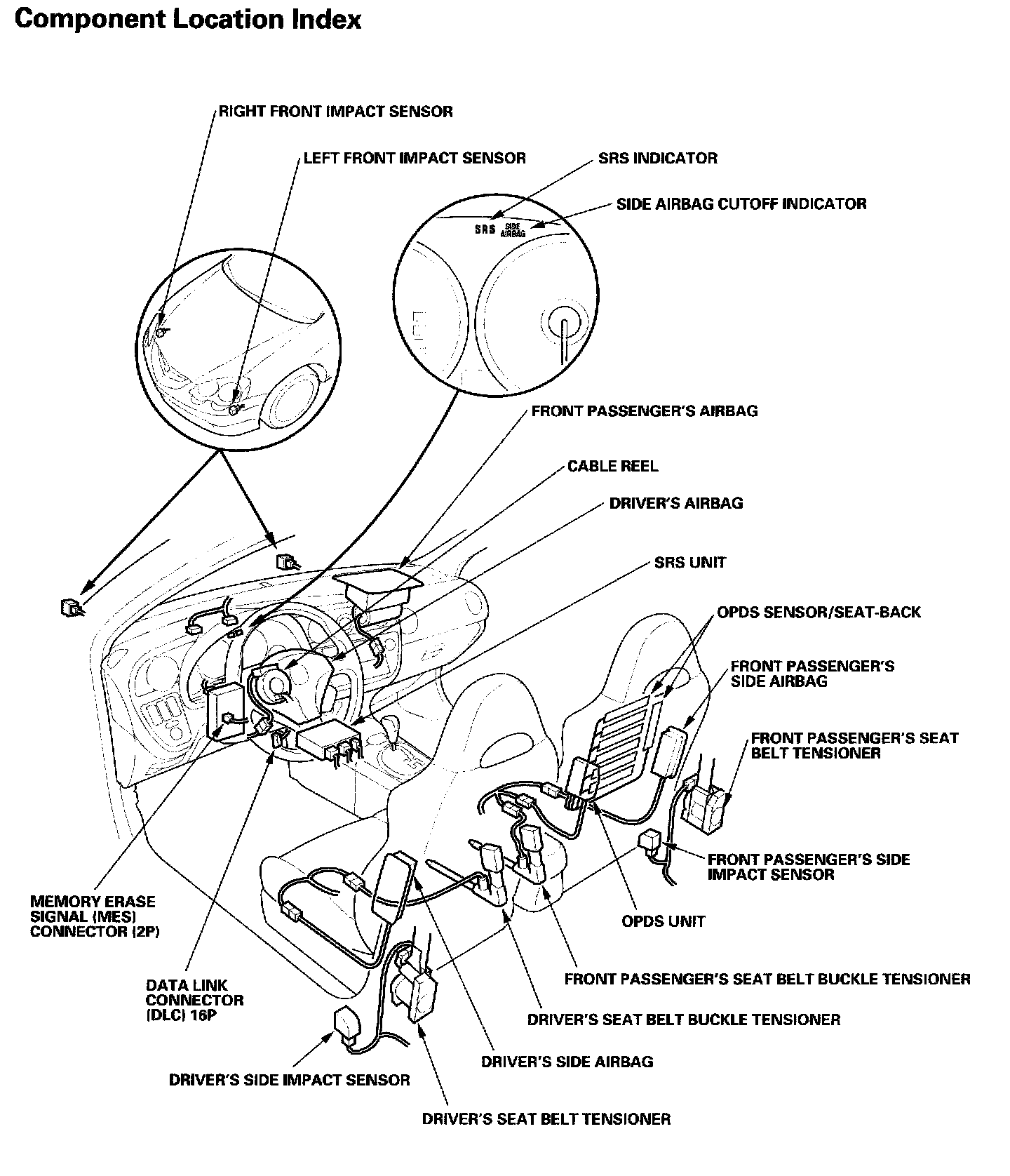

SRS - Component Location Index:

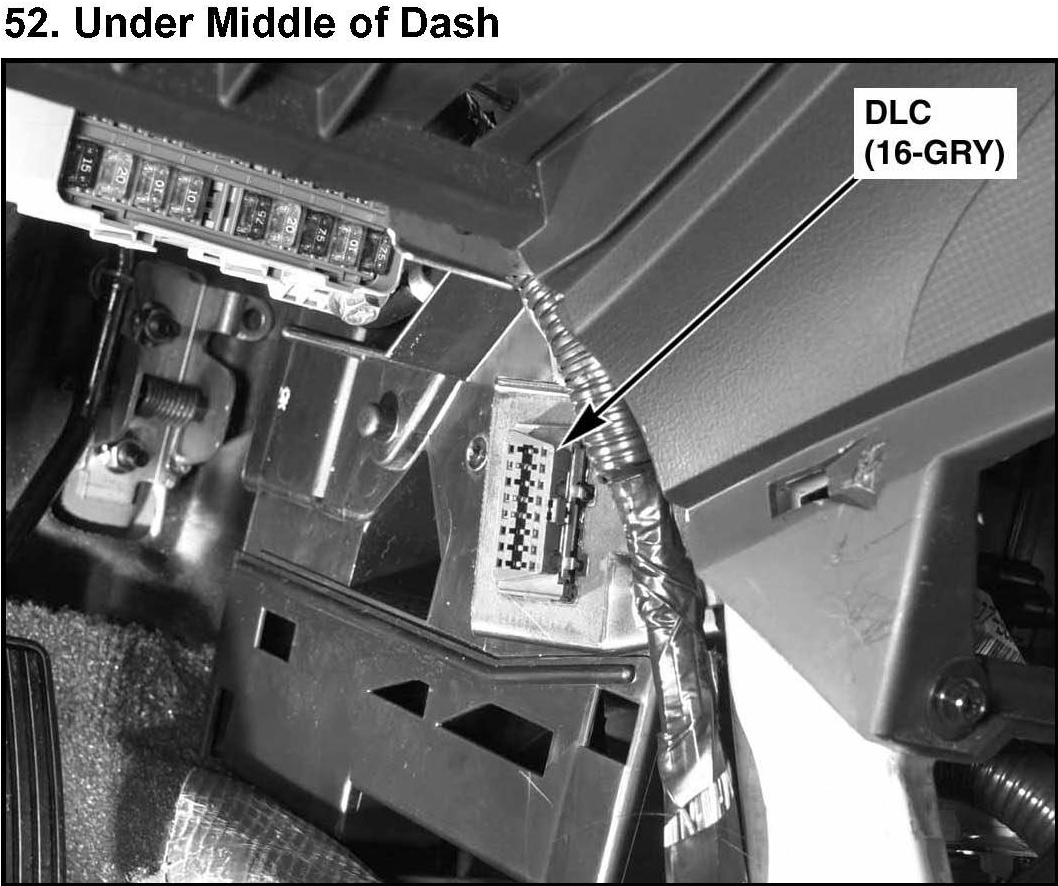

52. Under Middle Of Dash:
