Non-Trouble Code Procedures
A/C Compressor Clutch Circuit TroubleshootingNOTE:
- Do not use this troubleshooting procedure if the fans are also inoperative. Refer to the symptom troubleshooting index.
- Before performing symptom troubleshooting, check for powertrain DTCs.
1. Check the No. 1 (30 A) fuse in the under-hood fuse/relay box, and the No. 14 (10 A) fuse in the under-dash fuse/relay box.
Are the fuses OK?
YES - Go to step 2.
NO - Replace the fuse(s), and recheck.

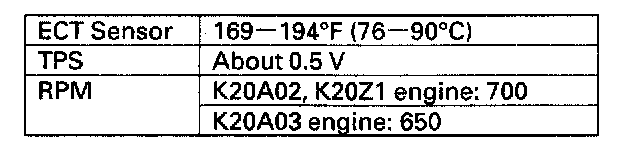

2. Check the engine coolant temperature, the throttle position sensor, and the idle speed (use the HDS PGM-FI data list if possible).
Are the coolant temperature, throttle position and idle speed OK?
YES - Go to step 3.
NO - Troubleshoot and repair the cause of the high engine coolant temperature, low idle, or excessively high throttle position sensor reading.
3. Remove the A/C compressor clutch relay from the under-hood fuse/relay box, and test it.
Is the relay OK?
YES - Go to step 4.
NO - Replace the A/C compressor clutch relay.

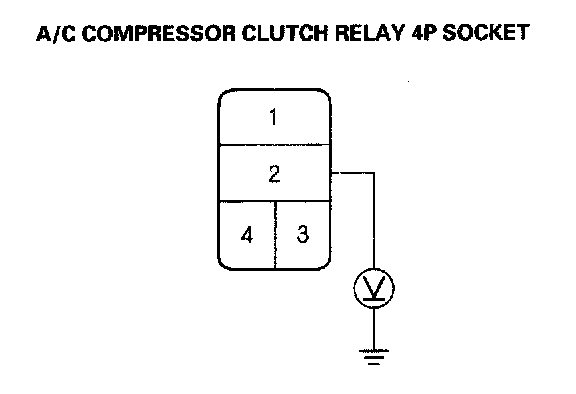

4. Measure the voltage between the No. 2 terminal of the A/C compressor clutch relay 4P socket and body ground.
Is there battery voltage?
YES - Go to step 5.
NO - Replace the under-hood fuse/relay box.

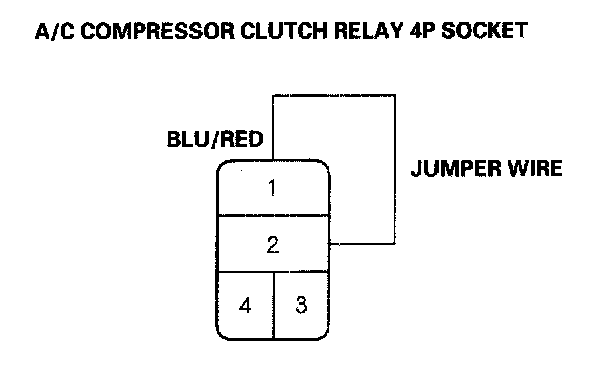

5. Connect the No. 1 and No. 2 terminals of the A/C compressor clutch relay 4P socket with a jumper wire.
Does the A/C compressor clutch click?
YES - Go to step 6.
NO - Go to step 14.
6. Disconnect the jumper wire.
7. Turn the ignition switch ON (II).

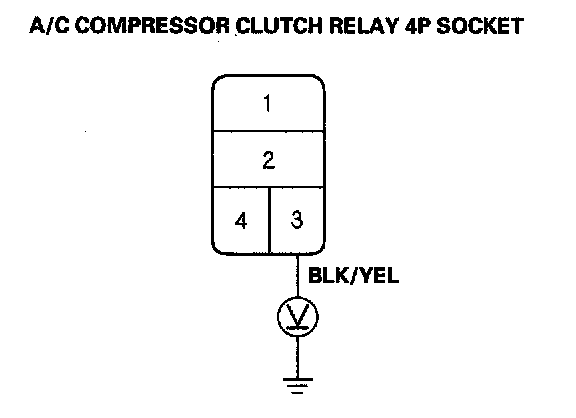

8. Measure the voltage between the No. 3 terminal of the A/C compressor clutch relay 4P socket and body ground.
Is there battery voltage?
YES - Go to step 9.
NO - Repair open in the wire between the No. 14 fuse in the under-dash fuse/relay box and the A/C compressor clutch relay.
9. Turn the ignition switch OFF.
10. Reinstall the A/C compressor clutch relay.
11. Make sure the A/C switch is OFF.
12. Turn the ignition switch ON (II).

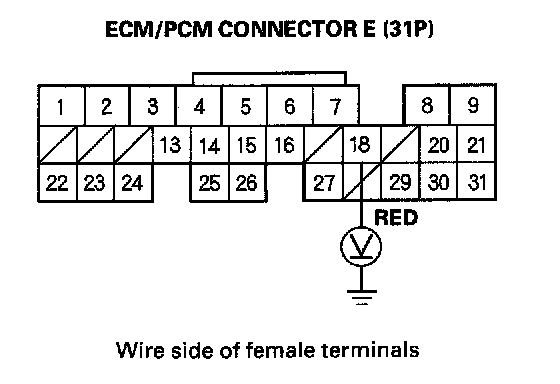

13. Using a backprobe set, measure the voltage between the No. 18 terminal of ECM/PCM connector E (31P) and body ground with the ECM/PCM connectors connected.
Is there battery voltage?
YES - Update the ECM/PCM if it does not have the latest software, or substitute a known-good ECM/PCM.then recheck. If the symptom/indication goes away with a known-good ECM/PCM, replace the original ECM/PCM.
NO - Repair open in the wire between the A/C compressor clutch relay and the ECM/PCM.
14. Disconnect the jumper wire.
15. Disconnect the A/C compressor clutch 1P connector.

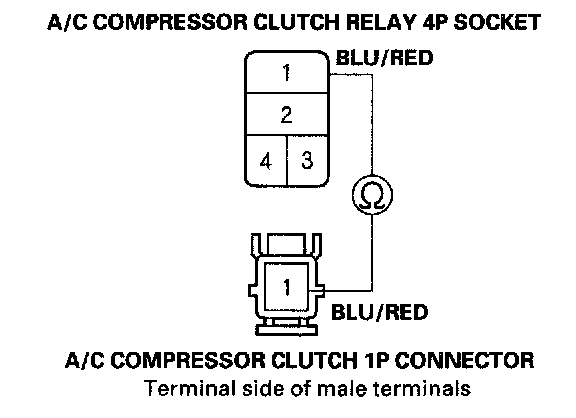

16. Check for continuity between the No. 1 terminal of the A/C compressor clutch relay 4P socket and the No. 1 terminal of the A/C compressor clutch 1P connector.
Is there continuity?
YES - Check the A/C compressor clutch clearance, the thermal protector, and the A/C compressor clutch field coil.
NO - Repair open in the wire between the A/C compressor clutch relay and the A/C compressor clutch.
