Home >> Acura >> 2005 >> RSX L4-2.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> Mechanical Specifications >> Standards and Service Limits >> Cylinder Head

Cylinder Head

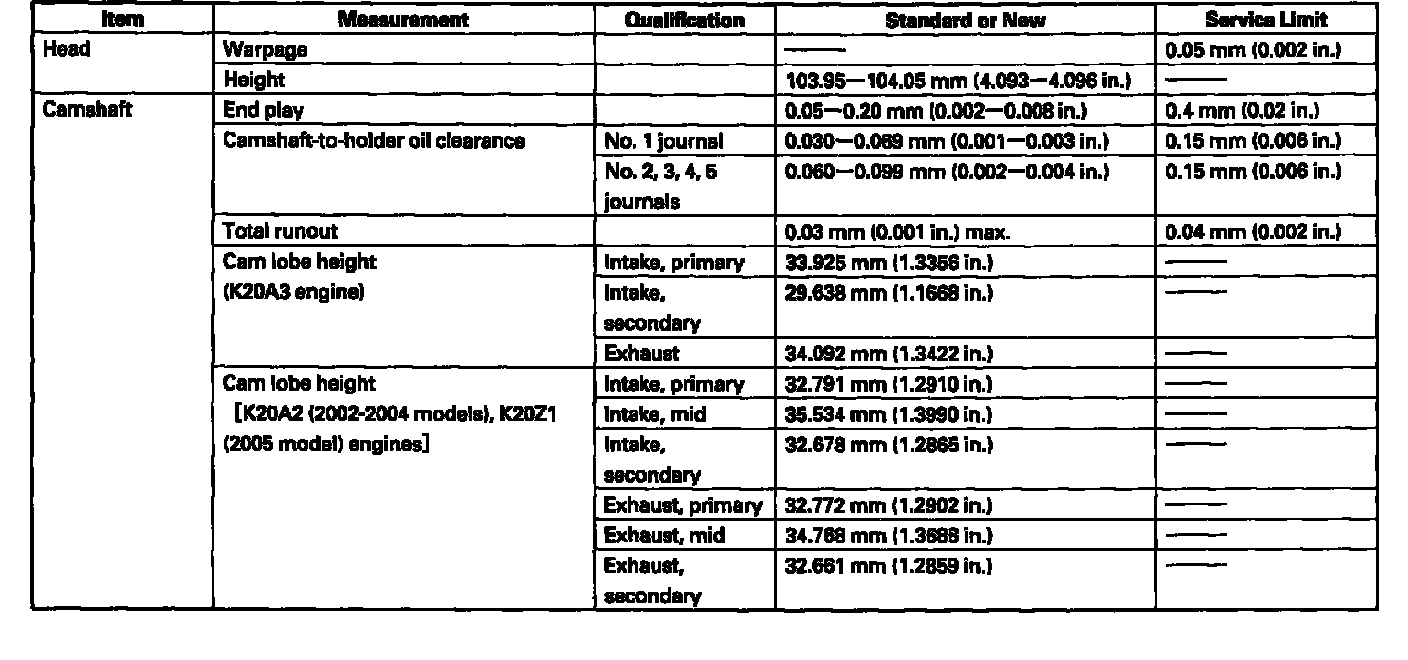

Cylinder Head - Part 1:

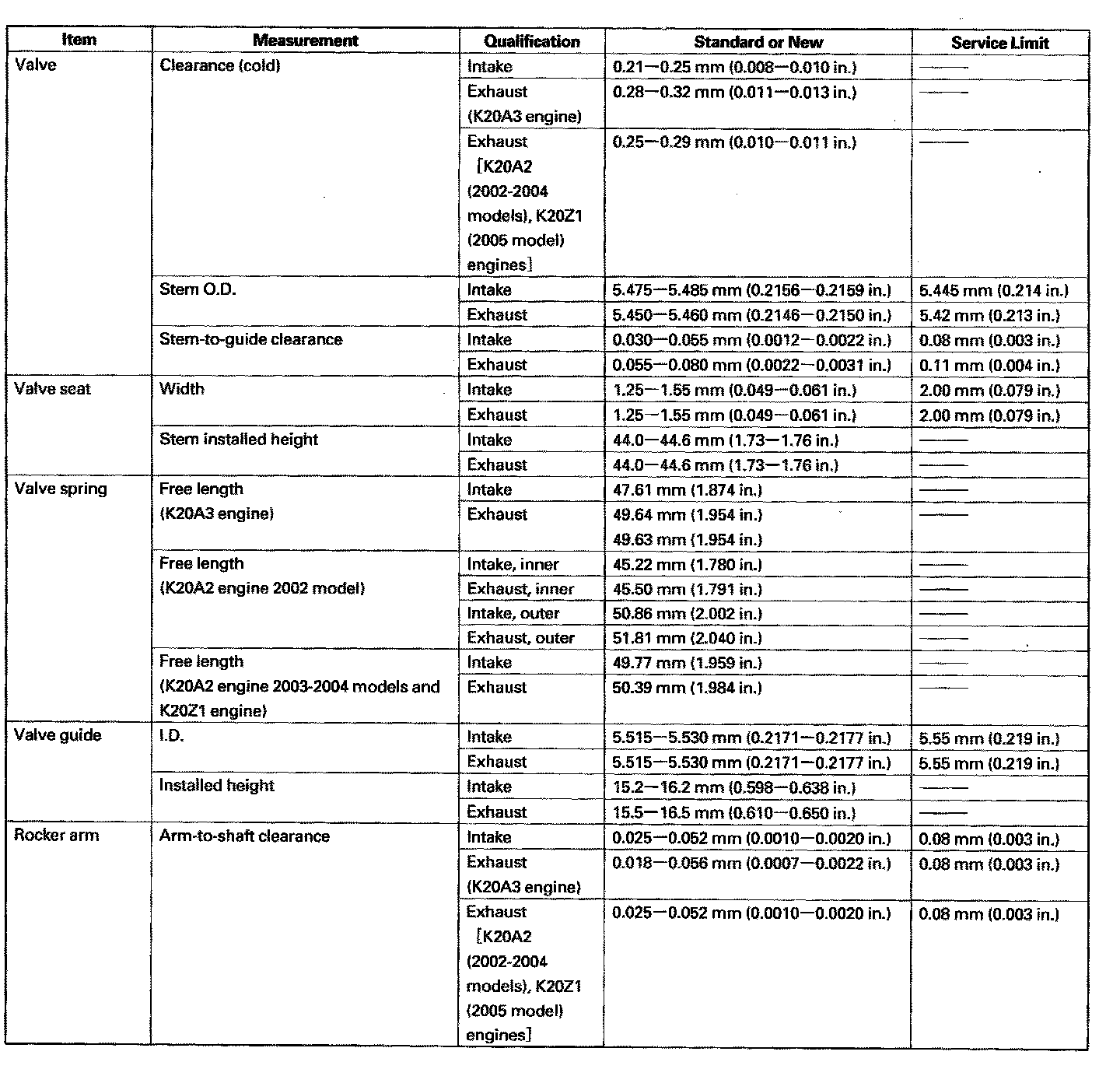

Cylinder Head - Part 2:
