Mainshaft Reassembly
Exploded View

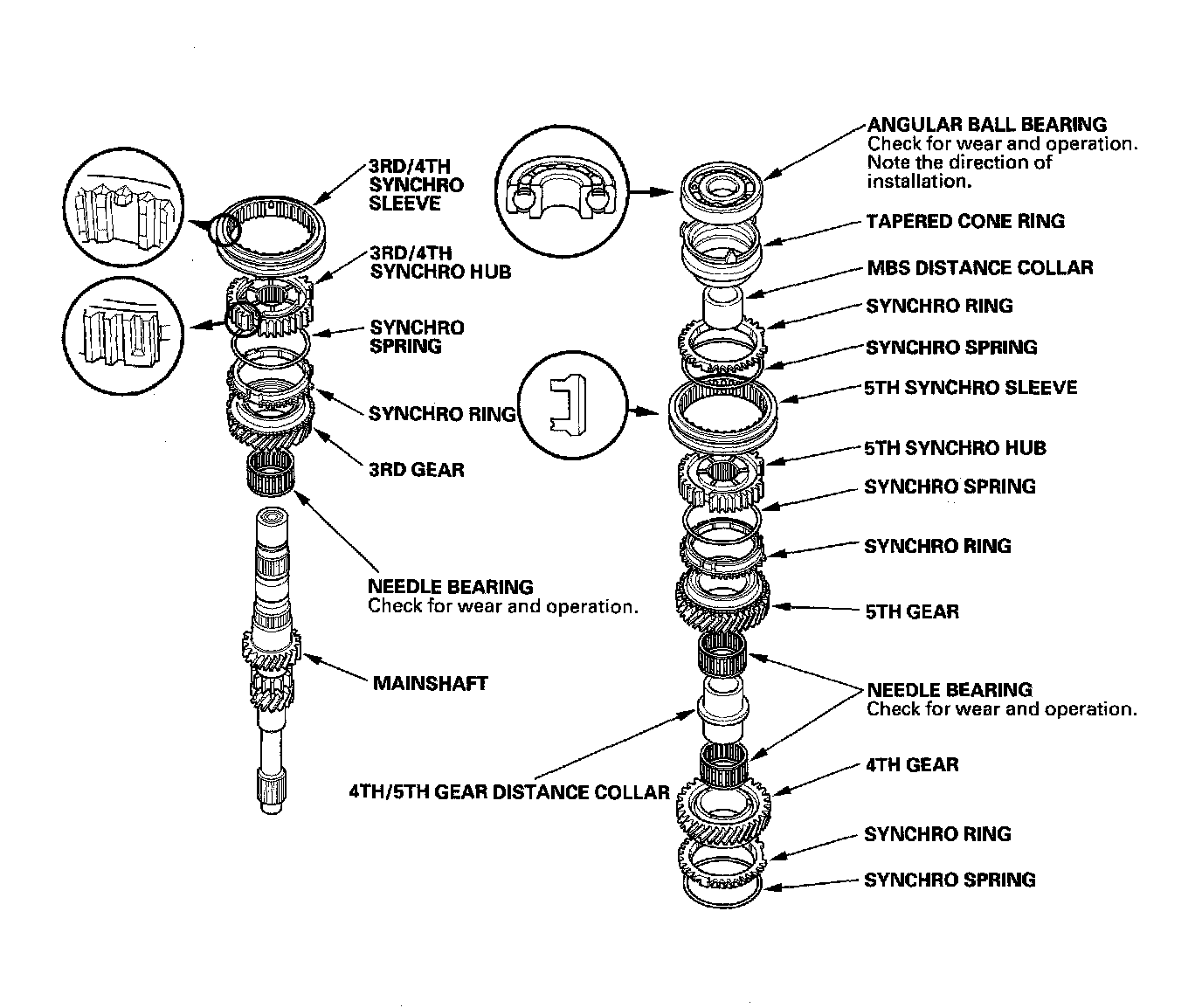

5-speed model
Exploded View

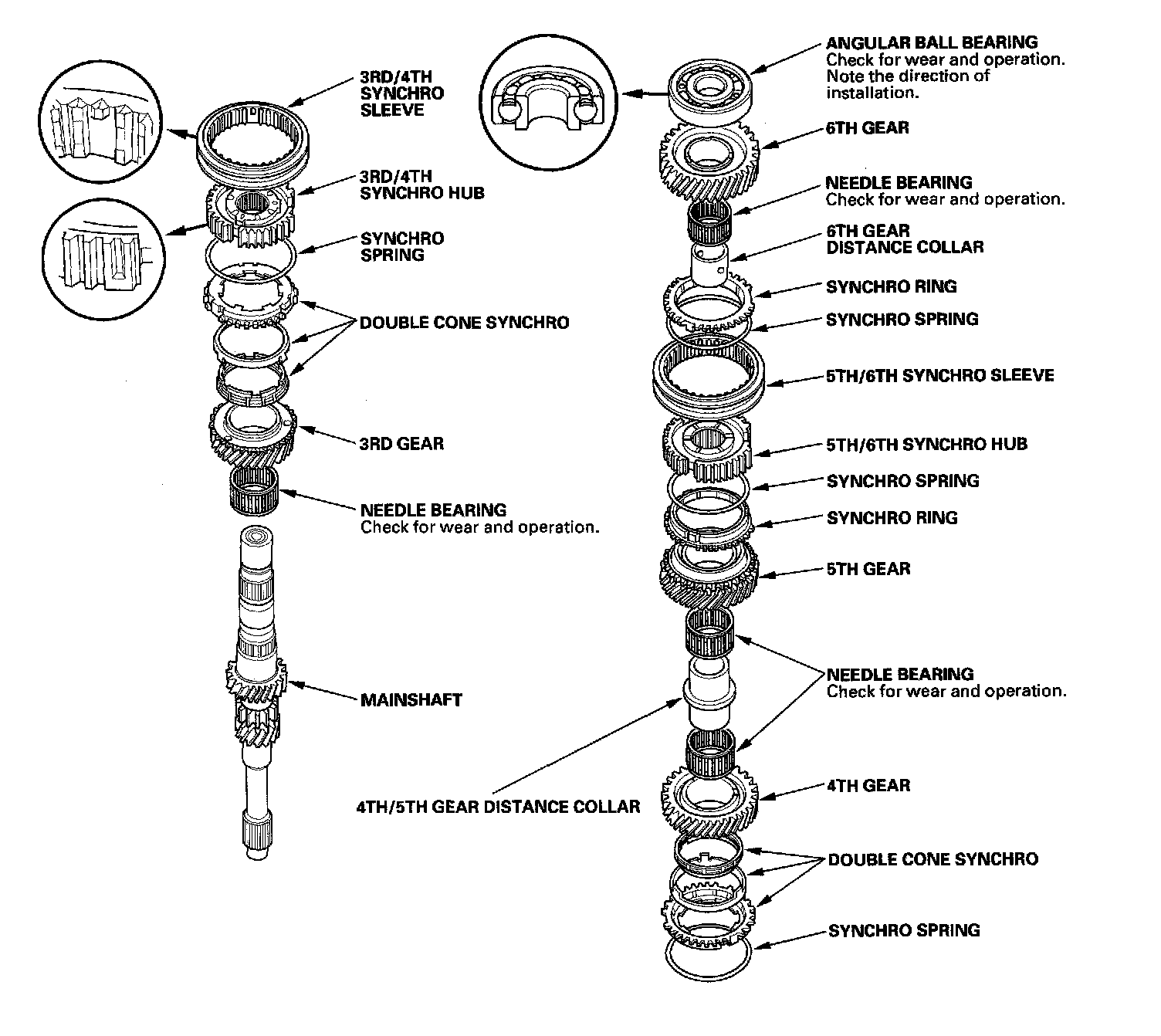

2004 6-speed model: X2M5 Transmission Number: 3004680 or later, and 2005 model
