Home >> Acura >> 2005 >> RSX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine Lubrication >> System Diagram

System Diagram

Component Location Index

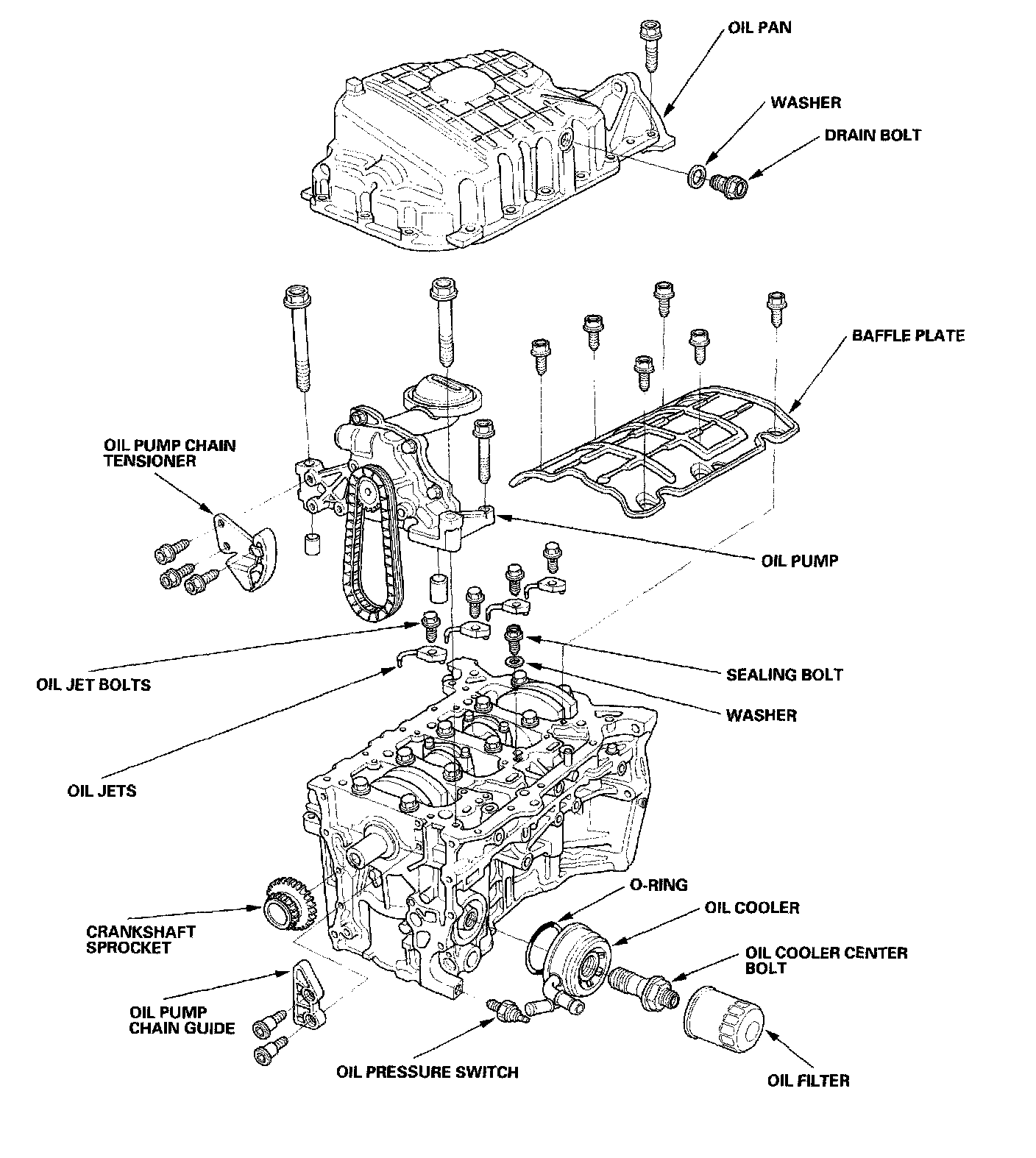

K20A3 engine

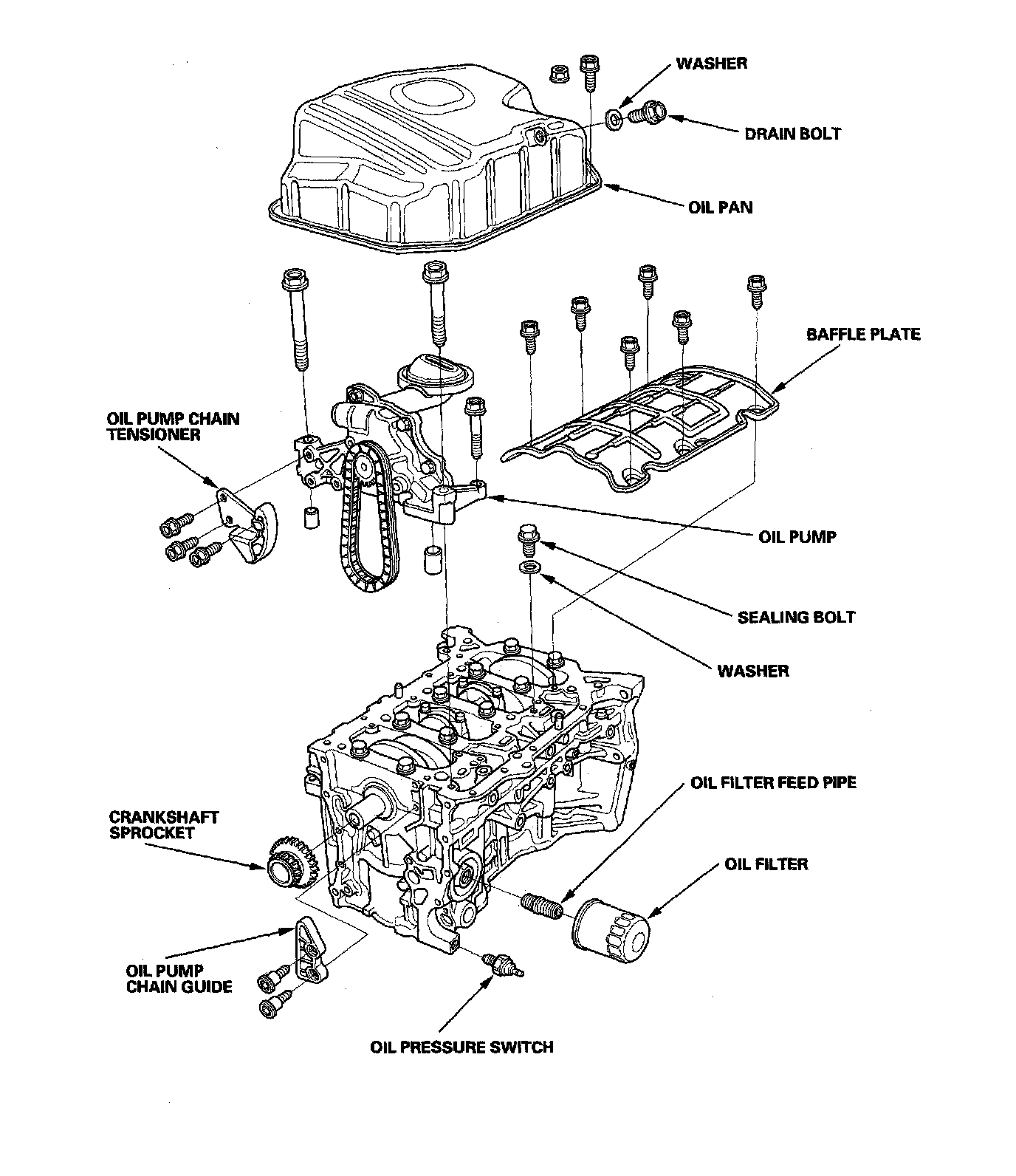

K20A2, K20Z1 engines
