DTC List - Transmission Control

DTC Troubleshooting Index


NOTE: Record all freeze data and review General Troubleshooting Information before you troubleshoot.

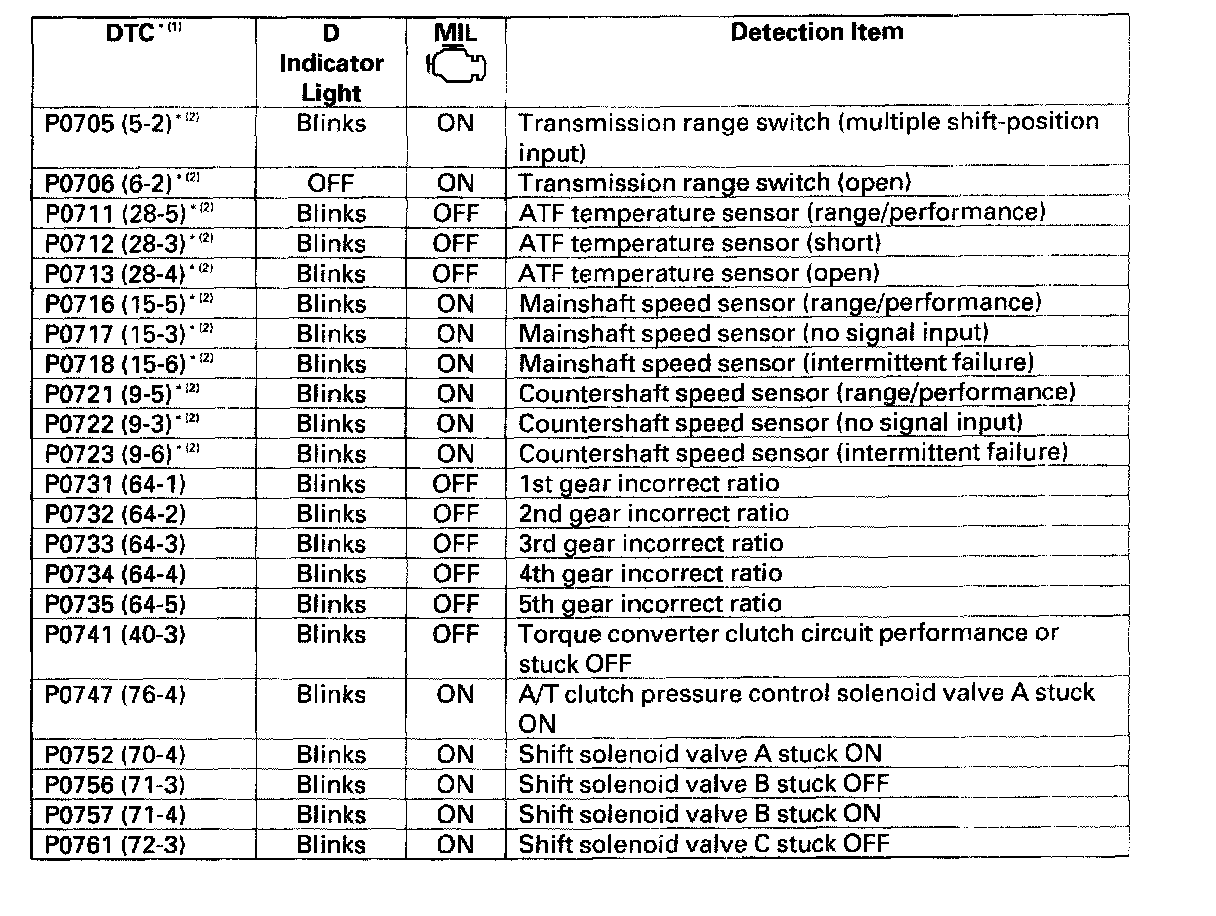

Part 1:

NOTE:
* (1): The DTC in parentheses is the Honda code that you will see when you use the HDS. The first number(s) before the -(hyphen) is the flash code the D indicator indicates when the data link connector is connected to the HDS, and the tester in SCS mode.
* (2): This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

NOTE: Record all freeze data and review General Troubleshooting Information before you troubleshoot.

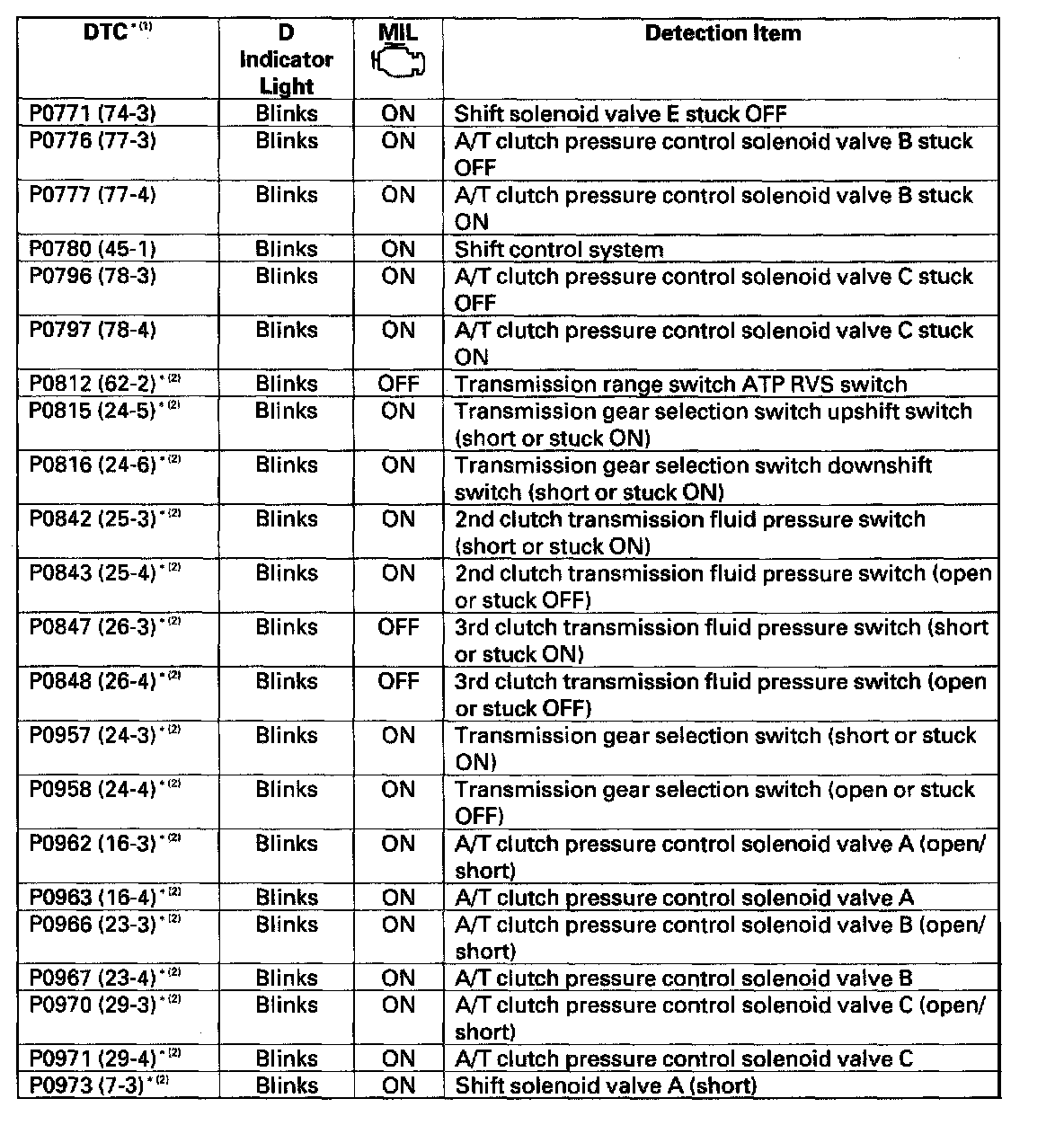

Part 2:

NOTE:
* (1): The DTC in parentheses is the Honda code that you will see when you use the HDS. The first number(s) before the -(hyphen) is the flash code the D indicator indicates when the data link connector is connected to the HDS, and the tester in SCS mode.
* (2): This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission

NOTE: Record all freeze data and review General Troubleshooting Information before you troubleshoot.

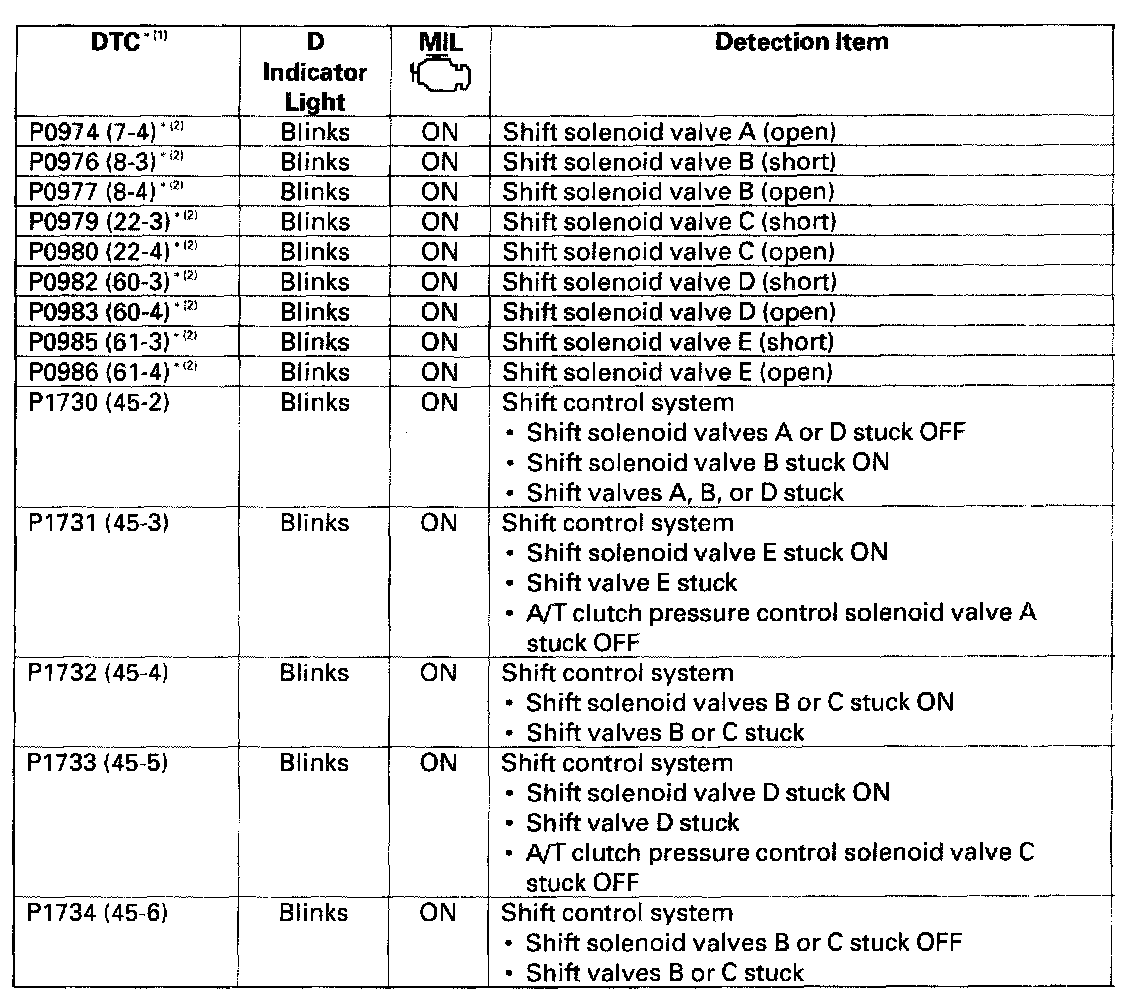

Part 3:

NOTE:
* (1): The DTC in parentheses is the Honda code that you will see when you use the HDS. The first number(s) before the -(hyphen) is the flash code the D indicator indicates when the data link connector is connected to the HDS, and the tester in SCS mode.
* (2): This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission
