Camshaft Bearing Cap Torque & Sequence
Camshaft Bearing Cap Torque & Sequence

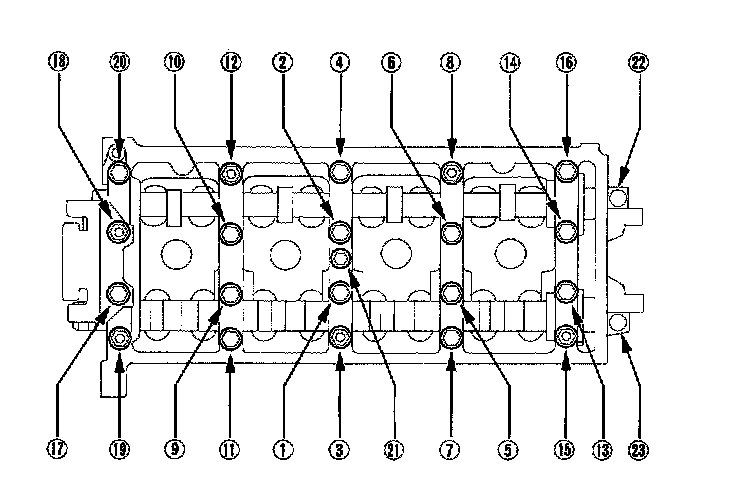

Camshaft Bearing Torque Sequence:
8 mm bolts: 22 Nm (2.2 kgf-m, 16 ft. lbs.)
6 mm bolts: 12 Nm (1.2 kgf-m, 8.7 ft. lbs.)
6 mm bolts: 21, 22, 23
