Home >> Acura >> 2002 >> RSX TYPE S L4-2.0L (i-VTEC) >> Parts and Labor >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Images

Images

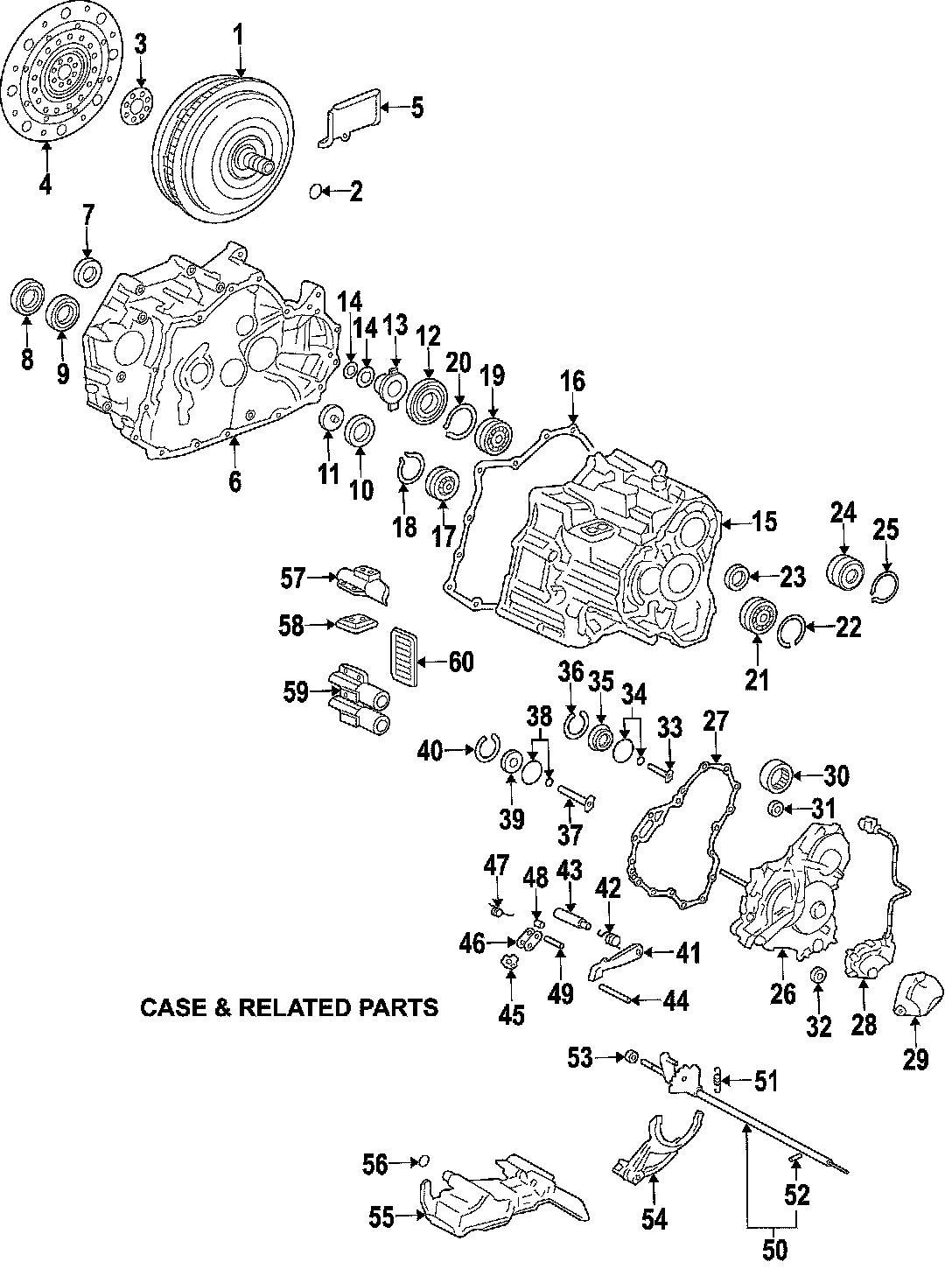

Case & Related Parts:

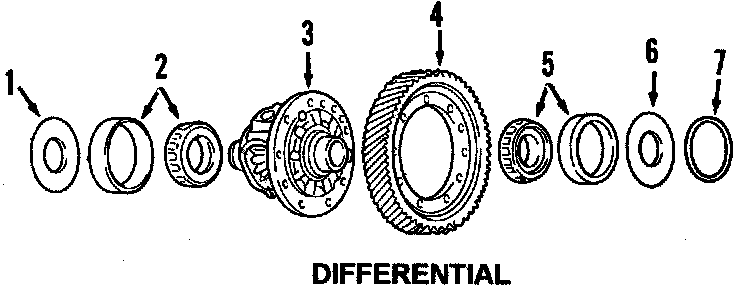

Differential:

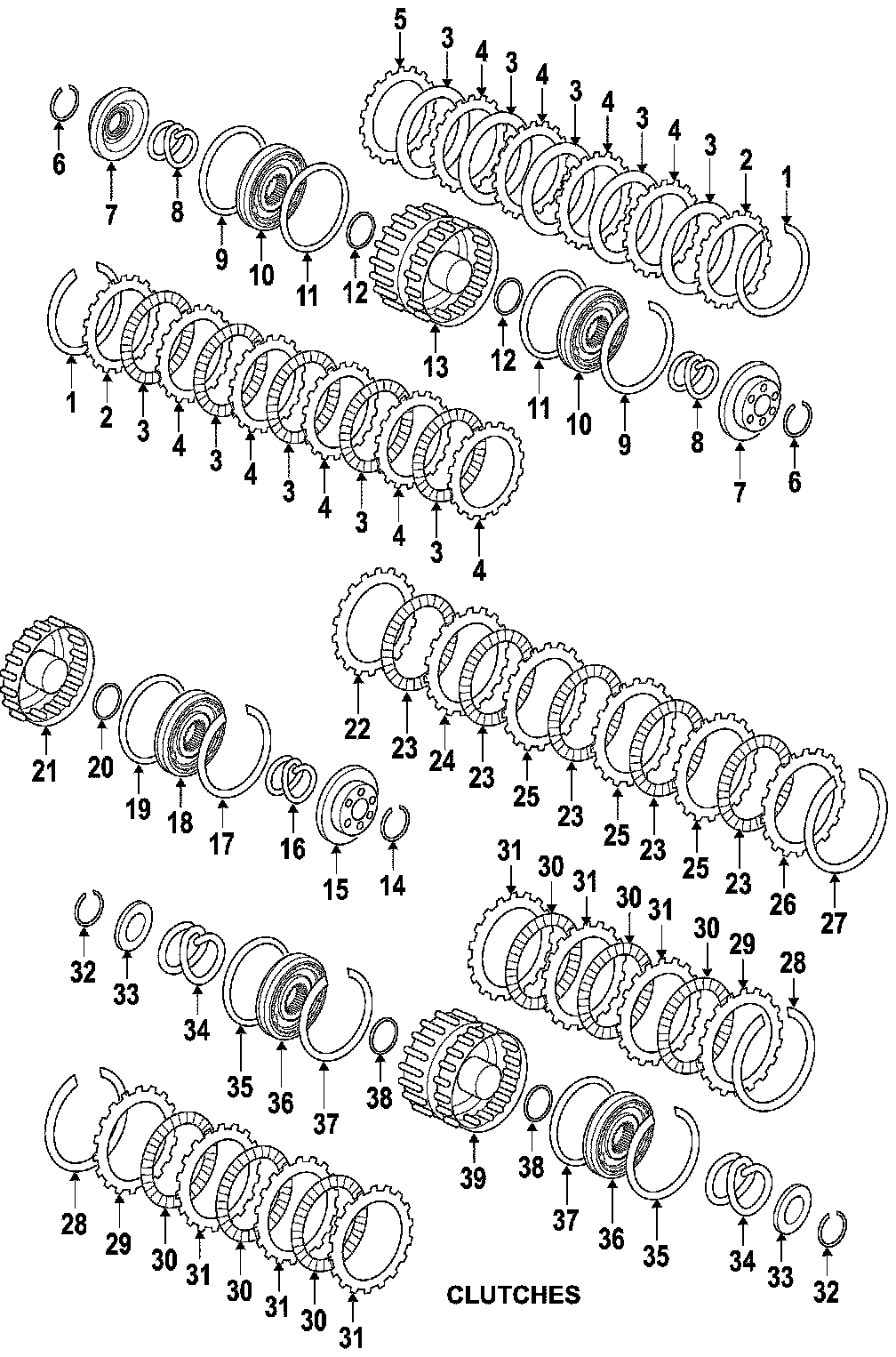

Clutches:

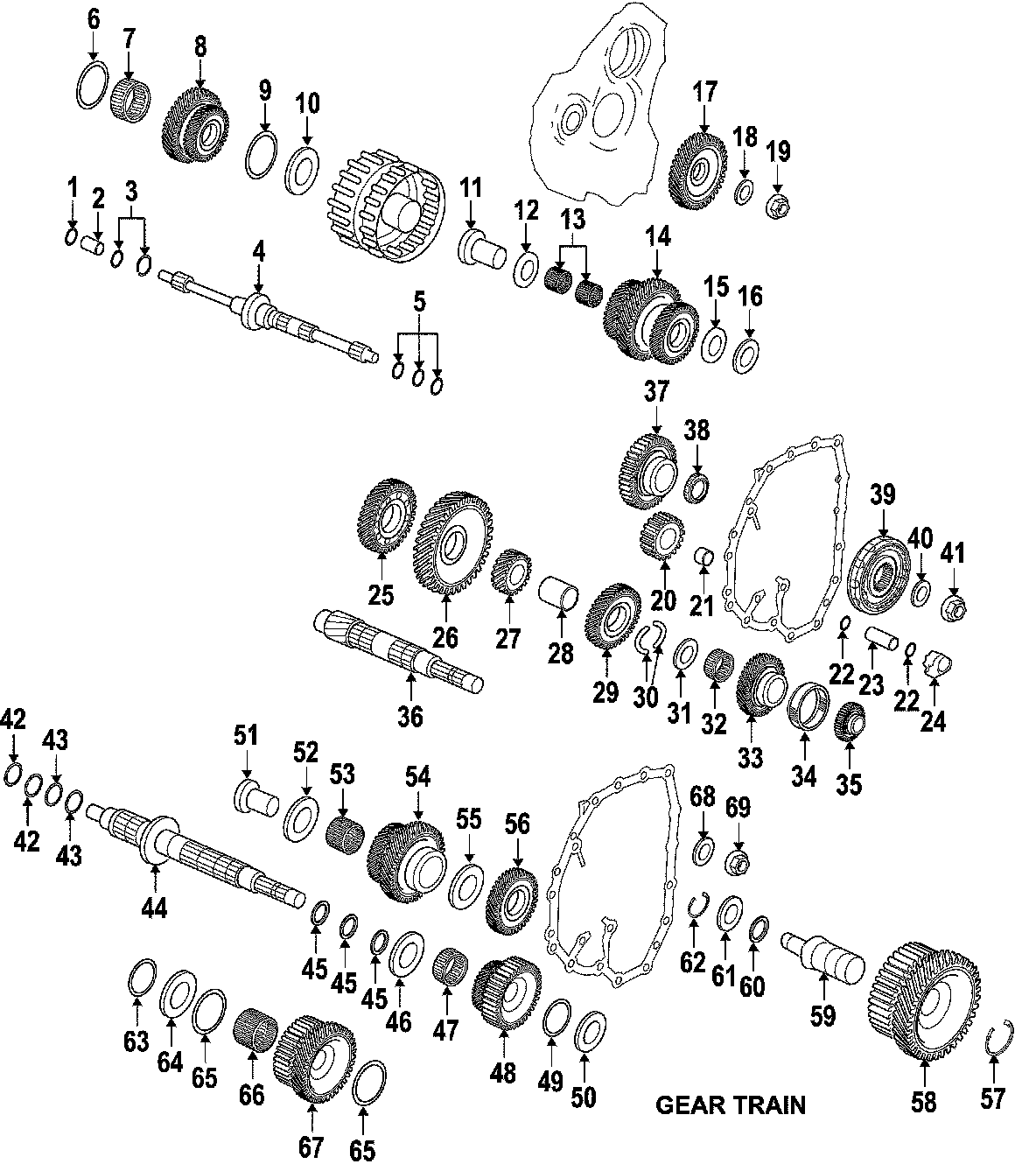

Gear Train:

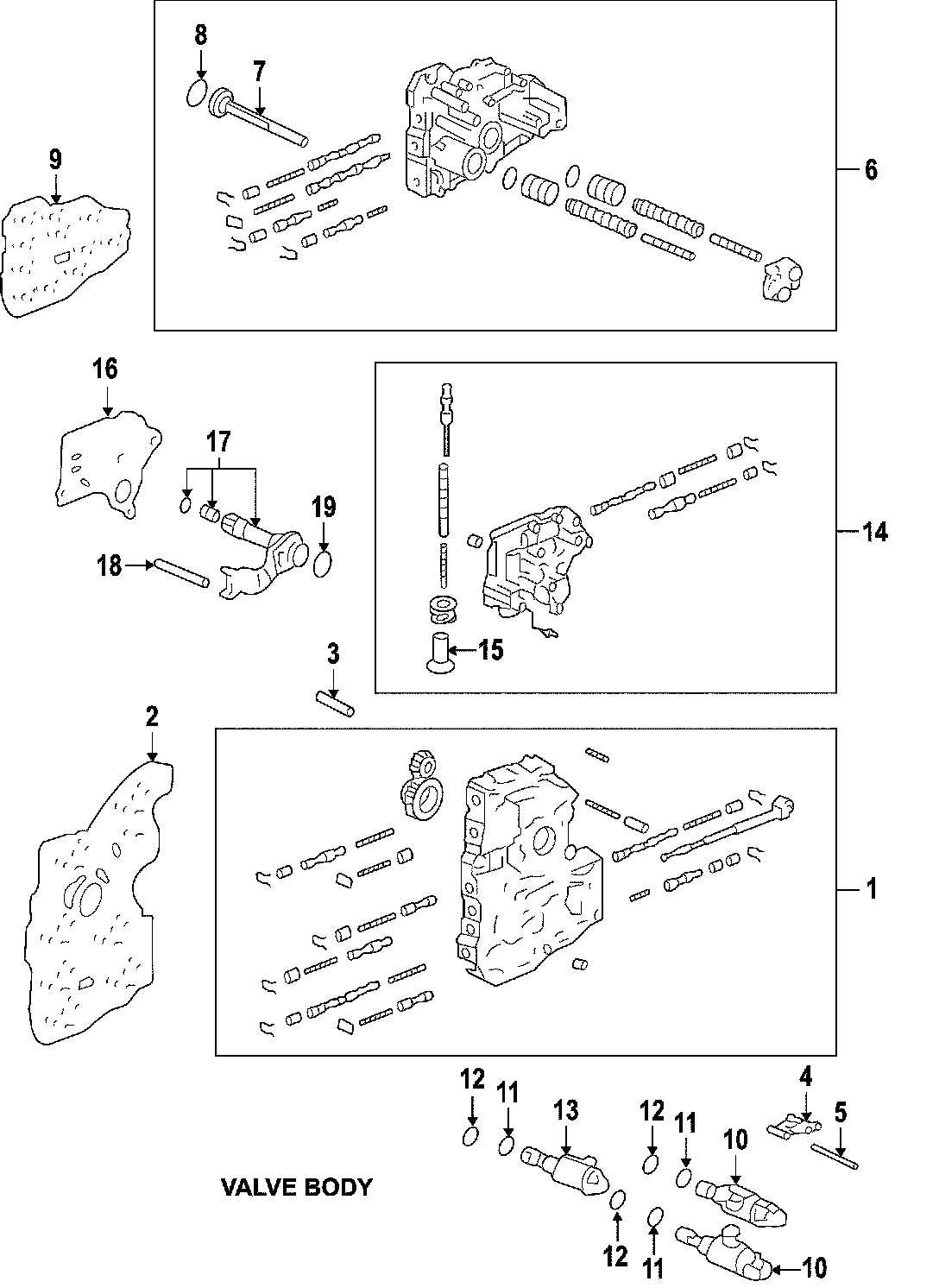

Valve Body & Related Parts:
