2ND Clutch Pressure Switch Replacement

Replacement
1. Remove the air cleaner housing.

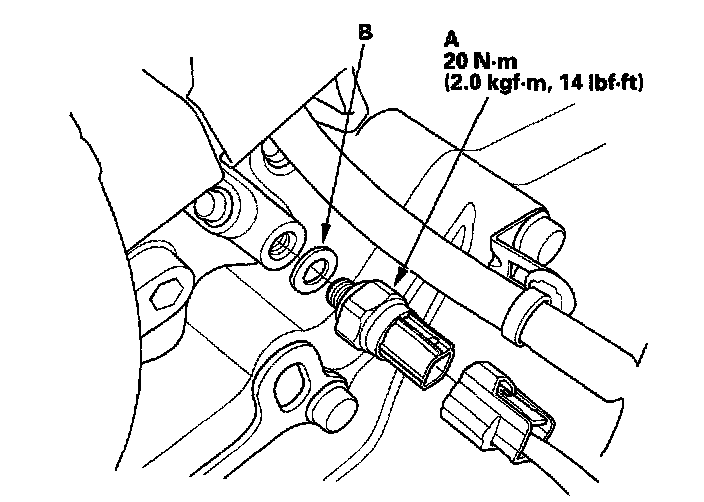

2. Disconnect the connector from the 2nd clutch pressure switch (A).
3. Remove the 2nd clutch pressure switch, then install a new one with a new sealing washer (B). Tighten the switch to the specified torque.
4. Reconnect the connector, making sure there is no water, oil, dust, or foreign particles inside it.
5. Install the air cleaner housing.
