A/T Clutch Pressure Control Solenoid Valves B and C Test
Test1. Remove the air cleaner housing.

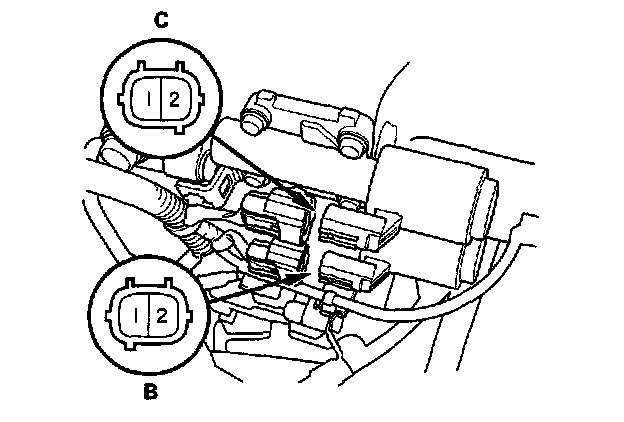

2. Disconnect the A/T clutch pressure control solenoid valves B and C connectors.
3. Measure A/T clutch pressure control solenoid valve B resistance at the solenoid valve B connector, and measure A/T clutch pressure control solenoid valve C resistance at the solenoid valve C connector.
STANDARD: About 5 ohms
4. If the resistance of either A/T clutch pressure control solenoid valve is out of standard, replace the A/T clutch pressure control solenoid valves B and C.
5. Connect the battery positive terminal to the No. 1 terminal of the A/T clutch pressure control solenoid valves B and C connectors, and connect the battery negative terminal to the No. 2 terminal. A clicking sound should be heard.
6. If no sound is heard, remove the A/T clutch pressure control solenoid valves B and C.
7. Check the fluid passage of the A/T clutch pressure control solenoid valve for dust or dirt.
8. Connect the No. 1 terminal of the A/T clutch pressure control solenoid valves B and C connectors to the battery positive terminal, and connect the No. 2 terminal to the battery negative terminal. Make sure the A/T clutch pressure control solenoid valves B and C move.
9. Disconnect one of the battery terminals, and check valve movement.

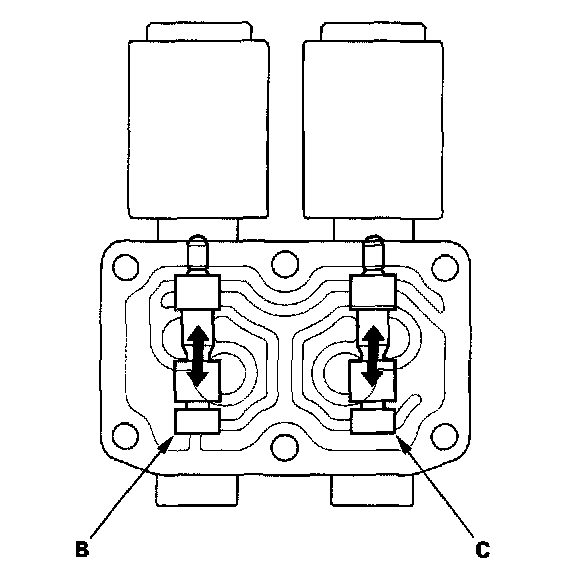

NOTE: You can see valve movement through the fluid passage in the mounting surface of the A/T clutch pressure control solenoid valves B and C body.
10. If either valve binds or moves sluggishly, or if the solenoid valve does not operate, replace the A/T clutch pressure control solenoid valves B and C.
