Mainshaft Bearing and Oil Seal Replacement

Replacement

Special Tools Required
- Oil seal driver 07JAD-PL90100
- Adjustable bearing puller, 25-40 mm 07JAC-PH80100
- Attachment, 42 x 47 mm 07746-0010300
- Driver 07749-0010000

1. Remove the differential assembly.

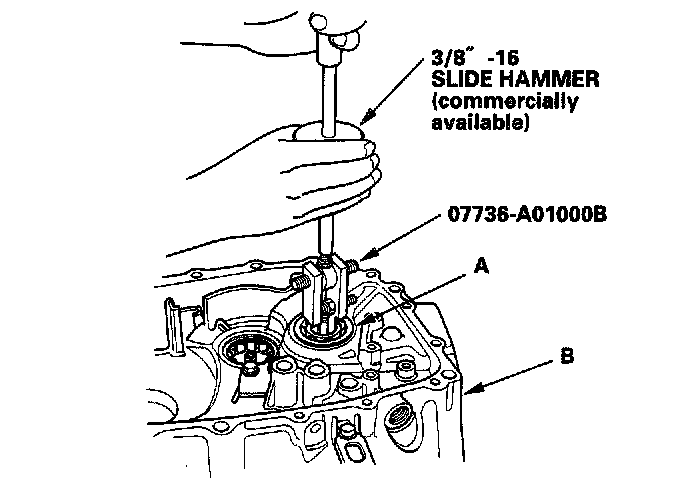

2. Remove the ball bearing (A) from the clutch housing (B) using the special tools.

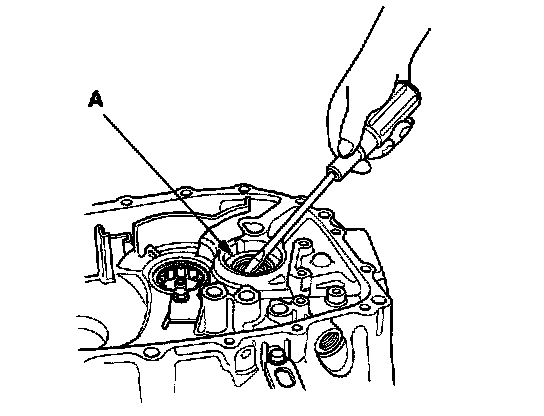

3. Remove the oil seal (A) from the clutch side.

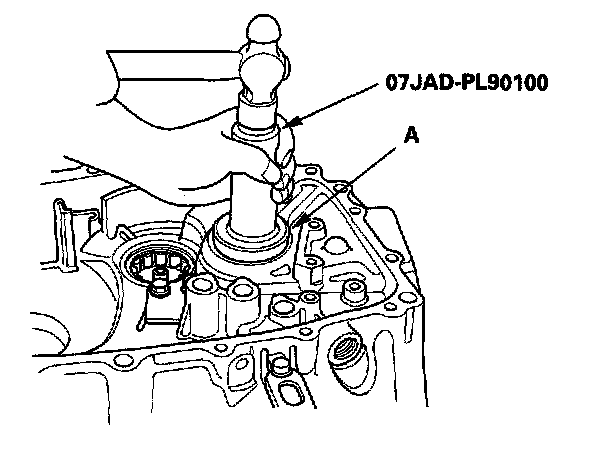

4. Drive the new oil seal in from the transmission side using the special tools.

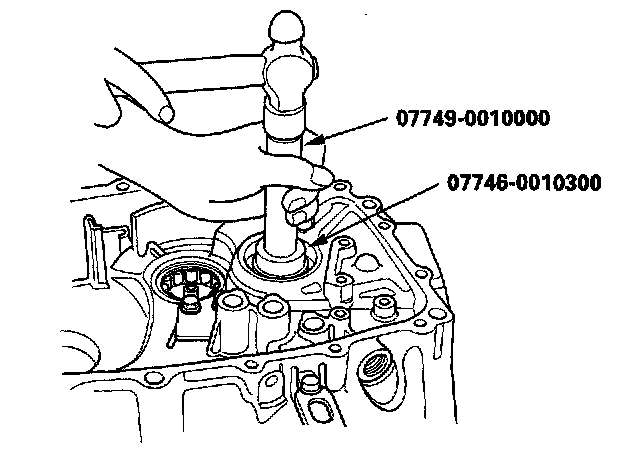

5. Drive the new ball bearing (A) in from the transmission side using the special tools.
