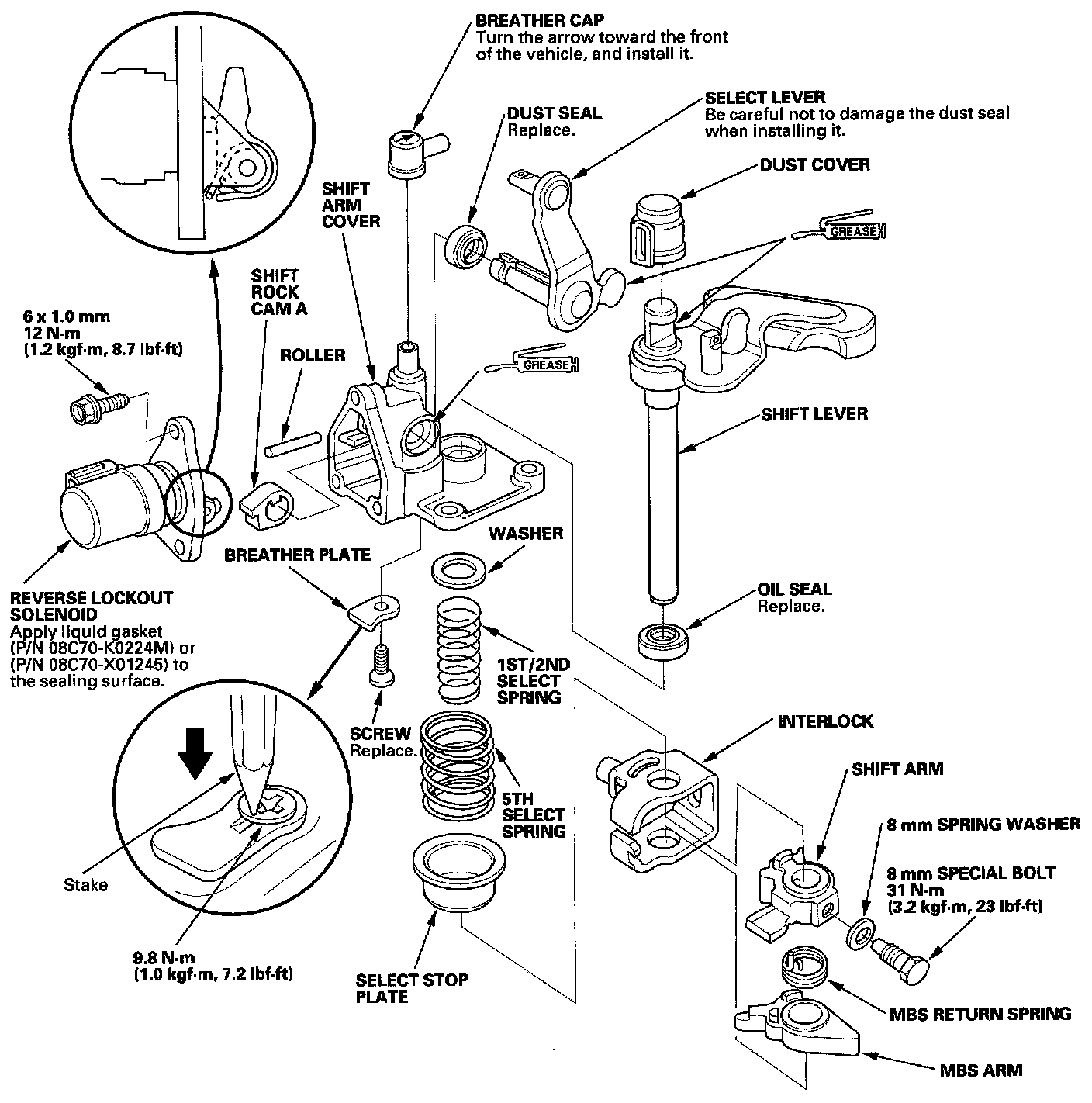

Change Lever Assembly/Disassembly/Reassembly

Disassembly/Reassembly
Prior to reassembling, clean all the parts in solvent, dry them, and apply lubricant to any contact surface.





5-speed model

6-speed model





NOTE: If 5 minutes have passed after applying liquid gasket, reapply it and assemble the shift arm cover.
