Flywheel: Service and Repair

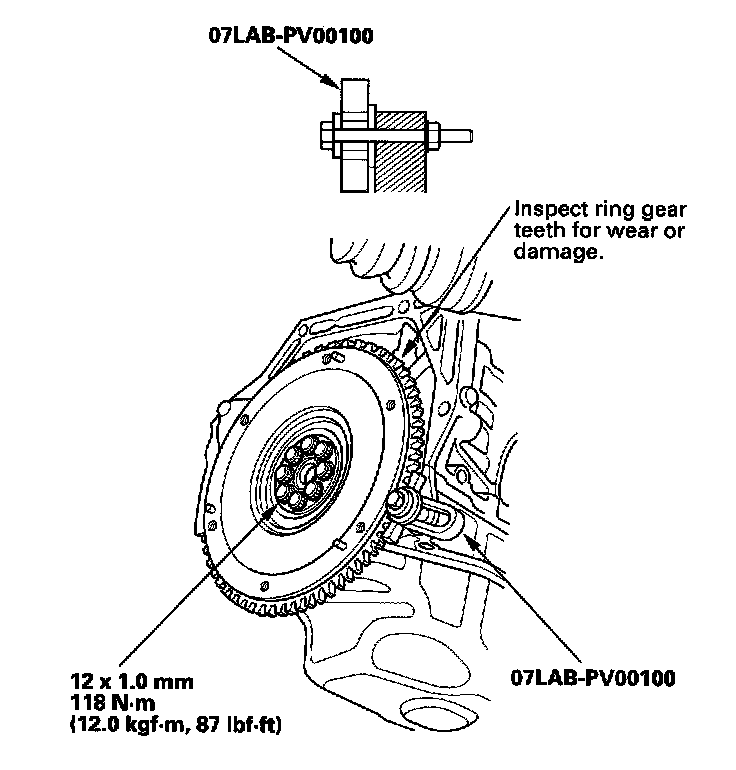

Flywheel Removal and Installation

Special Tools Required
- Ring gear holder 07LAB-PV00100

1. Remove the transmission.





2. Remove the eight flywheel bolts, then separate the flywheel from the crankshaft flange. After installation, tighten the bolts in a crisscross pattern.
3. Install the transmission.
