Shift Cable: Adjustments

Adjustment
1. Remove the center console.
2. Shift the transmission into N position.

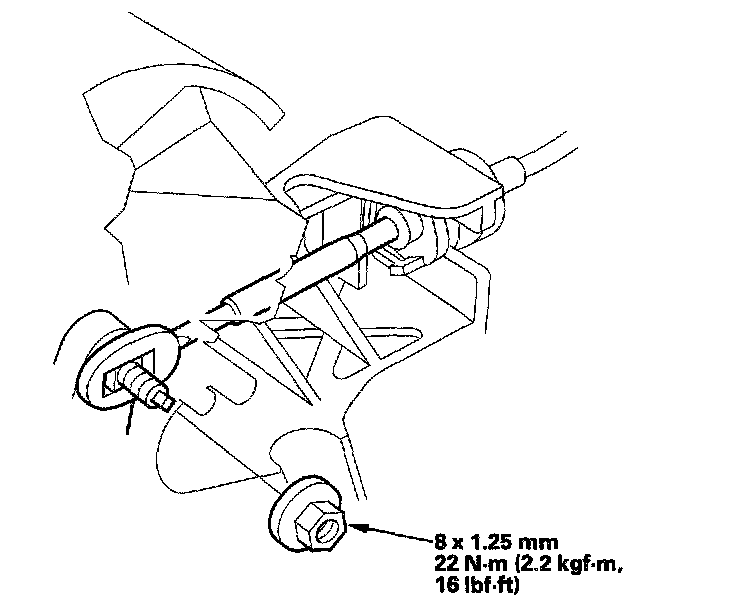

3. Remove the nut securing the shift cable end, then separate the cable end from the shift lever.

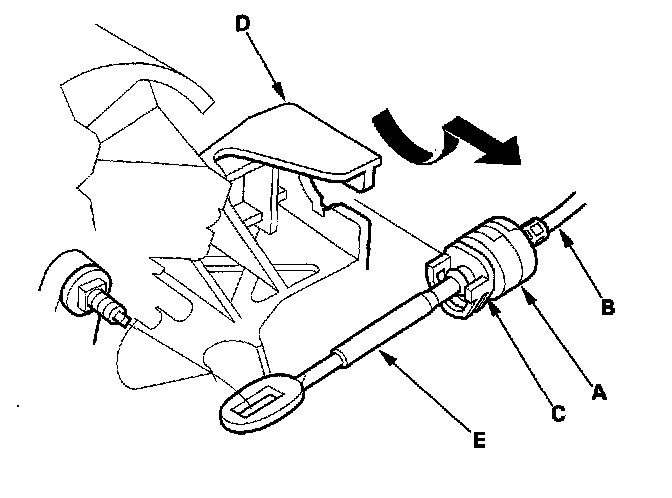

4. Rotate the socket holder (A) on the shift cable (B) a quarter turn; the tab (C) on the socket holder will be in the opening of the shift lever bracket base (D). Then slide the holder to remove the shift cable from the shift lever bracket base (D). Do not remove the shift cable by twisting the shift cable guide (E).

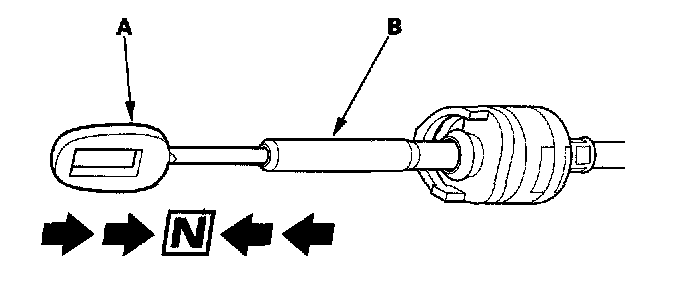

5. Push the shift cable (A) until it stops, then release it. Pull the shift cable back two steps so that the shift position is in N. Do not push and pull the shift cable by holding the shift cable guide (B).
6. Turn the ignition switch ON (II), and verify that the N position indicator comes on.
7. Turn the ignition switch OFF.

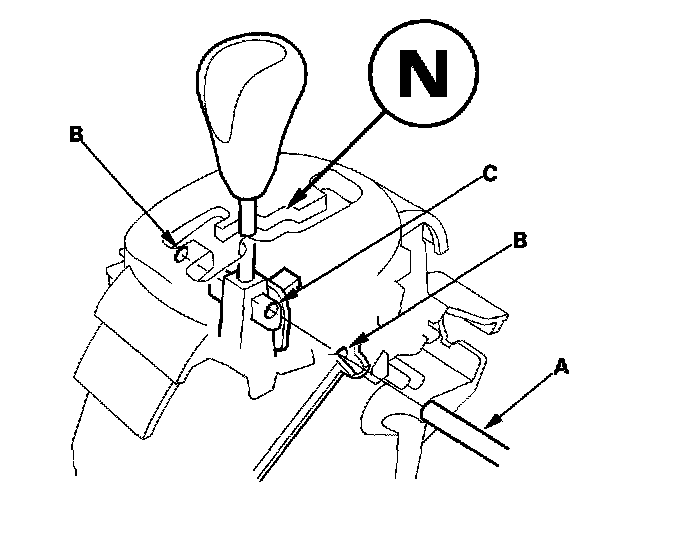

8. Insert a 6.0 mm (0.24 inch) pin (A) through the positioning hole (B) on the shift lever bracket base and into the positioning hole (C) on the shift lever. The shift lever is secured in the N position.

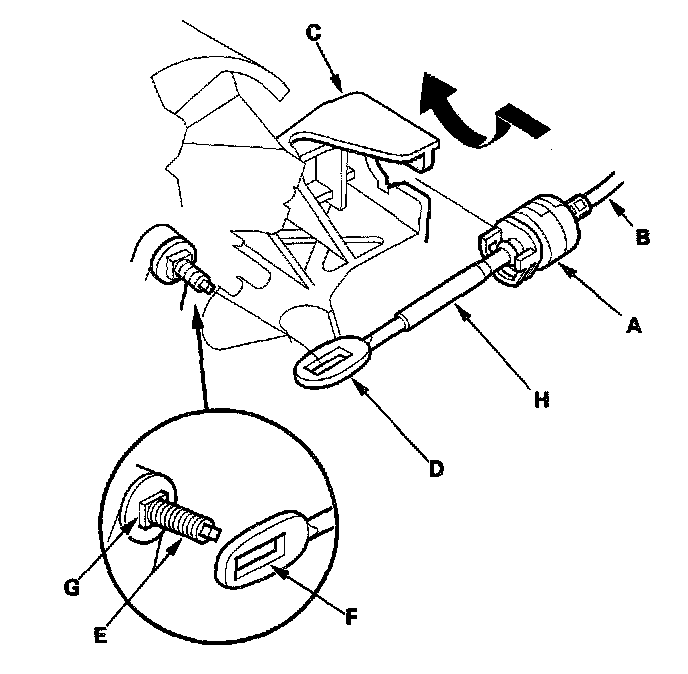

9. Align the socket holder (A) on the shift cable (B) with the slot in the bracket base (C), then slide the holder into the base. Install the shift cable end (D) over the mounting stud (E) by aligning its square hole (F) with the square fitting (G) at the bottom of the stud. Rotate the holder a quarter turn to secure the shift cable. Do not install the shift cable by twisting the shift cable guide (H).

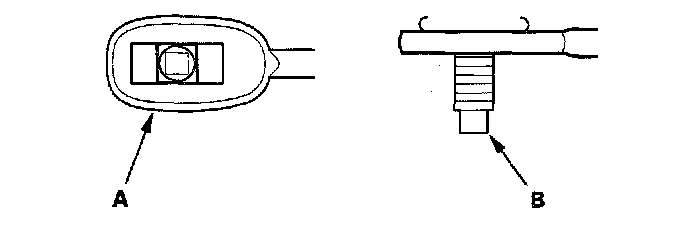

10. Verify that the shift cable end (A) is properly installed on the mounting stud (B).





Properly Installed

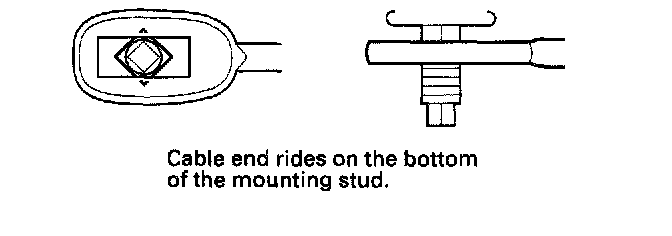

Improperly Installed

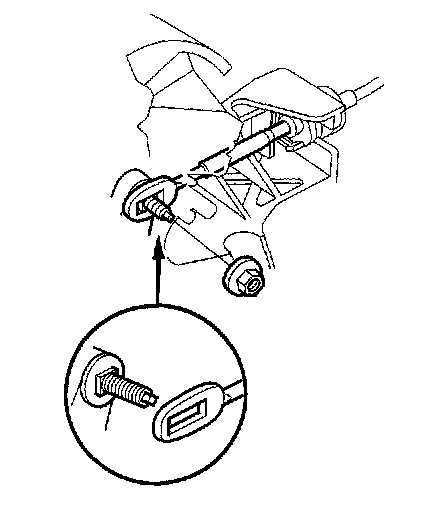

11. If improperly installed, remove the shift cable from the shift lever bracket base, and reinstall the shift cable. Do not install the shift cable end on the mounting stud while the shift cable is on the shin lever bracket base.





12. Install and tighten the nut.
13. Remove the 6.0 mm (0.24 inch) pin that was installed to hold the shift lever.
14. Move the shift lever to each position, and verify that the A/T gear position indicator follows the transmission range switch.
15. Push the shift lock release, and verify that the shift lever releases.
16. Reinstall the center console.
