Transmission Removal

Removal

Special Tools Required
- Engine hanger plate EQS00BRSX0 Engine support hanger, A and Reds AAR-T-12566 (Available through the Honda Tool and Equipment Program 888-424-6857)

1. Before disconnecting the battery, make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset stations.
2. Raise the vehicle, and make sure it is securely supported.
3. Remove the splash shield.

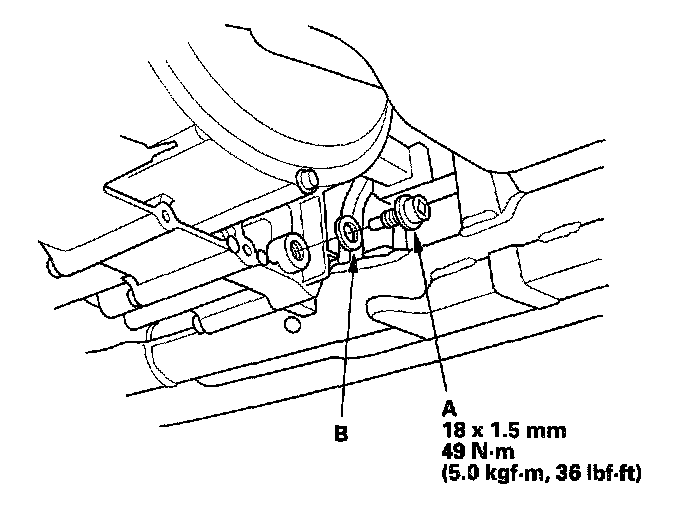

4. Remove the drain plug (A), and drain the Automatic Transmission Fluid (ATF). Reinstall the drain plug with a new sealing washer (B).
5. Disconnect the battery negative terminal, then disconnect the battery positive terminal.
6. Remove the air cleaner housing and the intake air duct.
7. Remove the battery hold-down bracket, then remove the battery and battery tray.
8. Remove the harness clamp from the battery base, then remove the battery base.

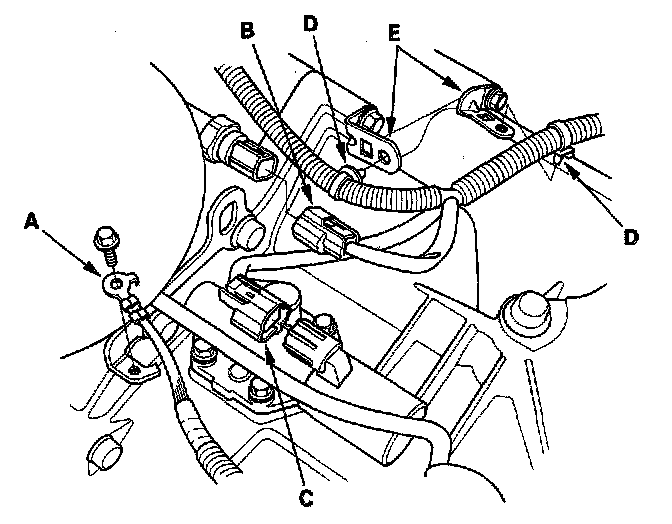

9. Remove the transmission ground terminal (A).
10. Disconnect the 2nd clutch pressure switch connector (B) and A/T clutch pressure control solenoid valve A connector (C), and remove the harness clamps (D) from the clamp brackets (E).

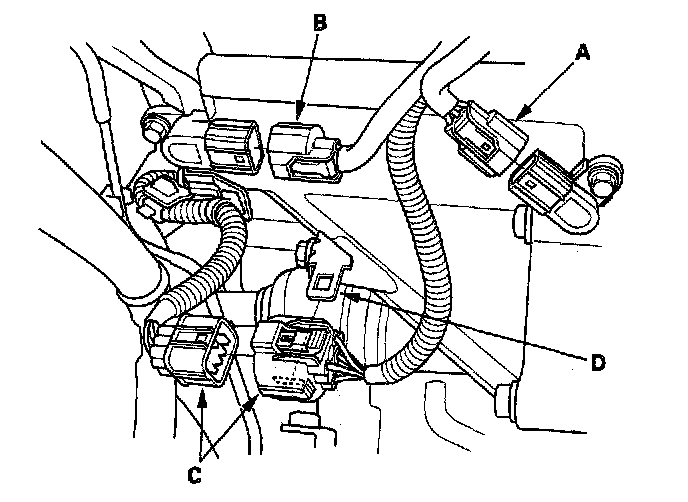

11. Disconnect the countershaft speed sensor connector (A) and mainshaft speed sensor (B).
12. Remove the transmission range switch connector (C) from the bracket (D), then disconnect it.

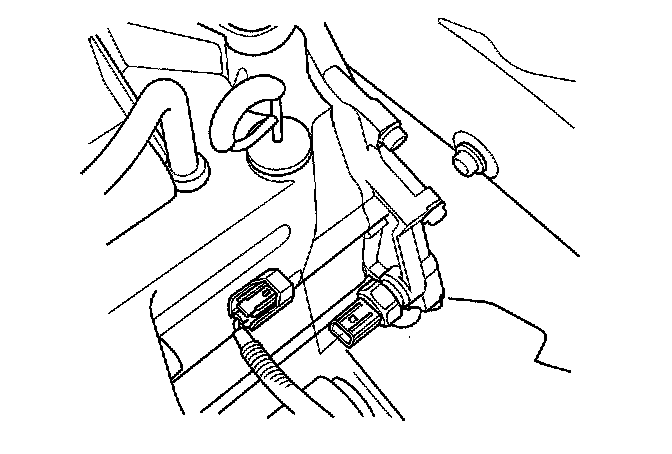

13. Disconnect the 3rd clutch pressure switch connector.

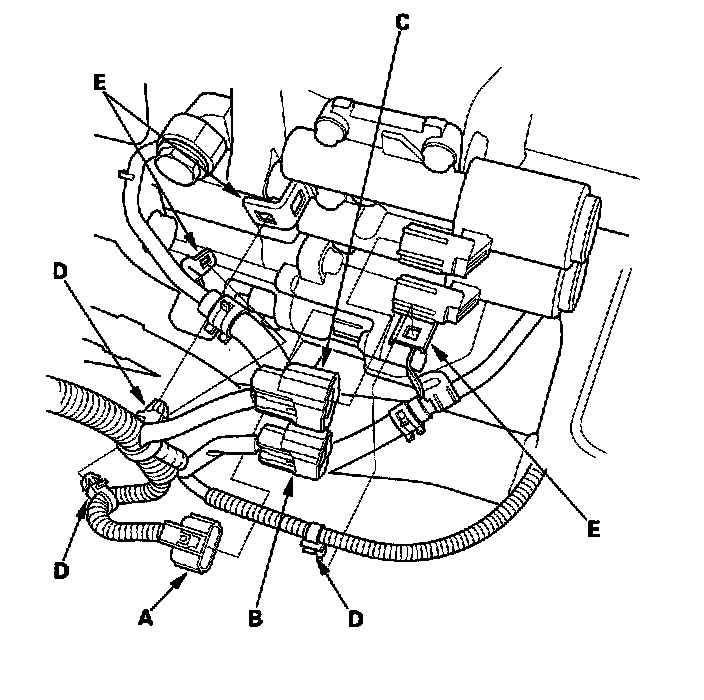

14. Disconnect the shift solenoid harness connector (A), A/T clutch pressure control solenoid valve B connector, and solenoid valve C connector, then remove the harness clamps (D) from the clamp brackets (E).

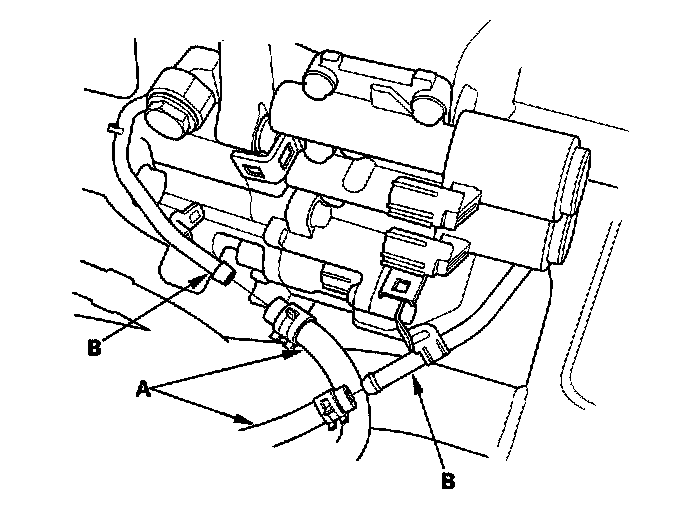

15. Remove the ATF cooler hoses (A) from the ATF cooler lines (B). Turn the ends of the ATF cooler hoses up to prevent ATF from flowing out, then plug the ATF cooler hoses and lines.
16. Check for any signs of leakage at the hose joints.

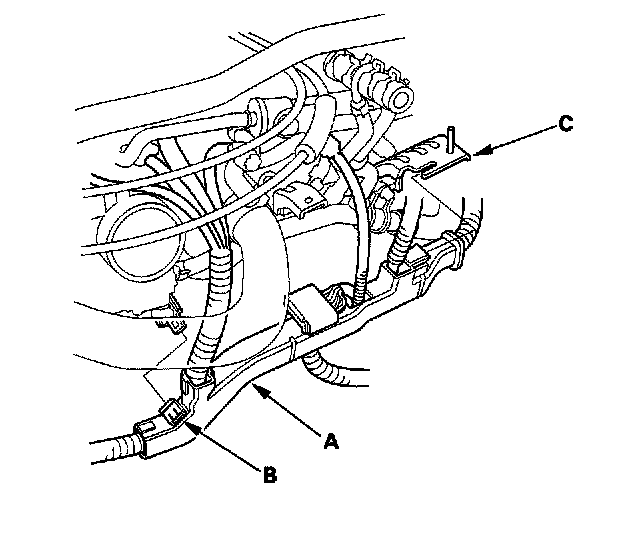

17. Remove the engine wire harness cover (A) by lifting up on the lock tab (B), then slide the harness forward off the air cleaner housing mounting bracket (C).

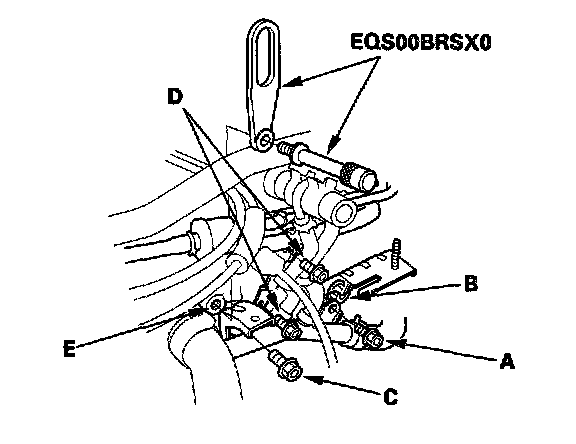

18. Remove the water pipe mounting bolt (A) and lower the water pipe slightly. Loosen air cleaner housing bracket mounting bolt (B), and remove mounting bolt (C).
19. Remove the brake booster and EVAP line bracket mounting bolts (D),and attach the special tool to the threaded hole (E) in the cylinder head.

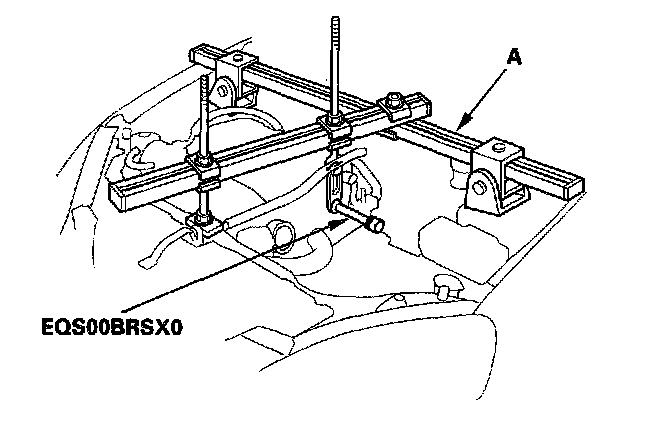

20. Install the engine support hanger (A) to the vehicle and attach the hook to the special tool.

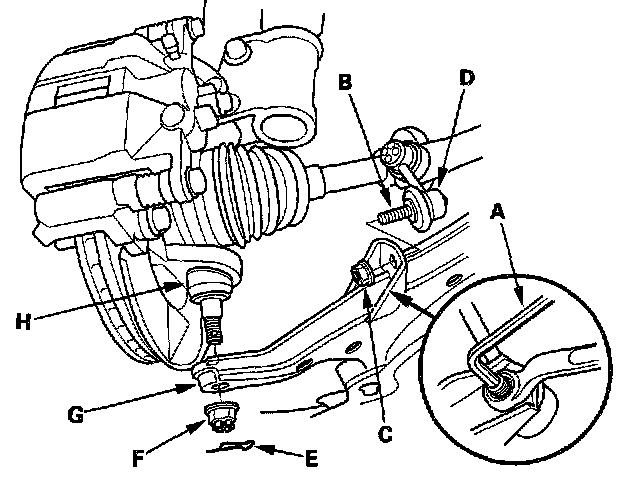

21. Insert a 5 mm Allen wrench (A) in the top of the ball joint pin (B), and remove the nut (C), then separate the stabilizer link (D) from the lower arm.
22. Remove the spring clips (E) and castle nuts (F), and separate the lower arms (G) from the knuckles (H).





23. Disconnect the A/F sensor connector (A) and secondary HO2S connector (B), then remove the harness from the clamps (C).





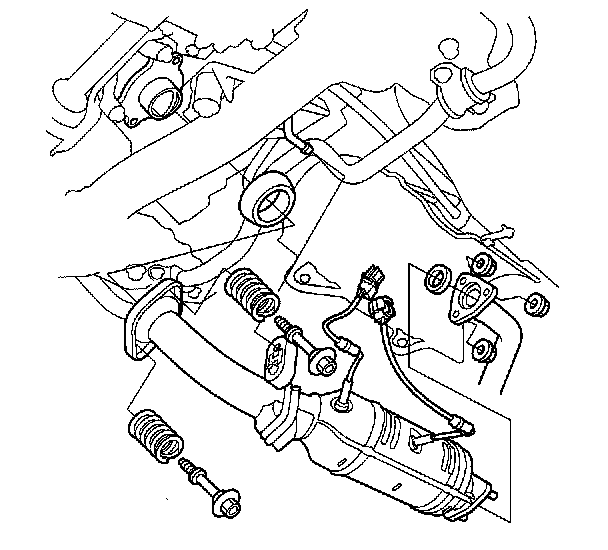

24. Remove the exhaust pipe A/catalytic converter.

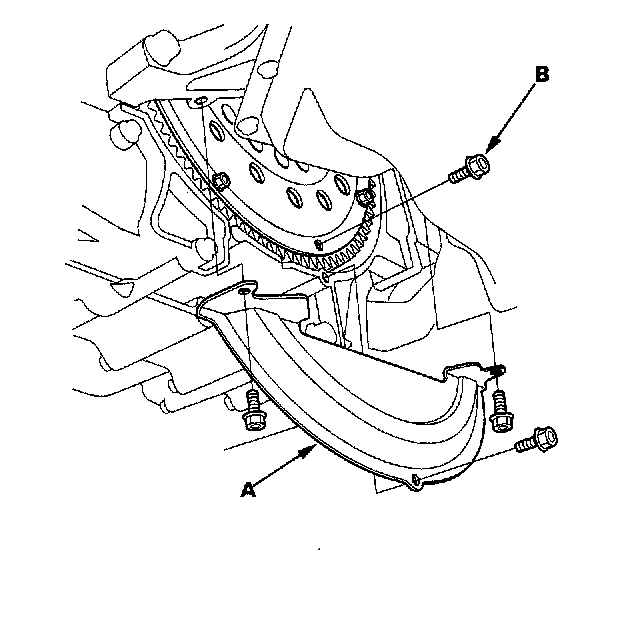

25. Remove the torque converter cover (A), and remove the eight drive plate bolts (B) while rotating the crankshaft pulley.

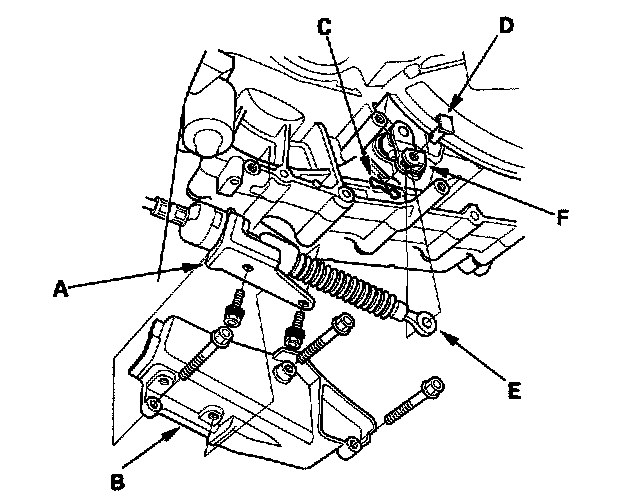

26. Remove the bolts securing the shift cable holder (A), then remove the shift cable cover (B).

NOTE: To prevent damage to the control lever joint, remove the bolts securing the shift cable holder before removing the bolts securing the shift cable courier

27. Remove the spring clip (C) and control pin (D), then separate the shift cable (E) from the control lever (F). Do not bend the shift cable excessively.

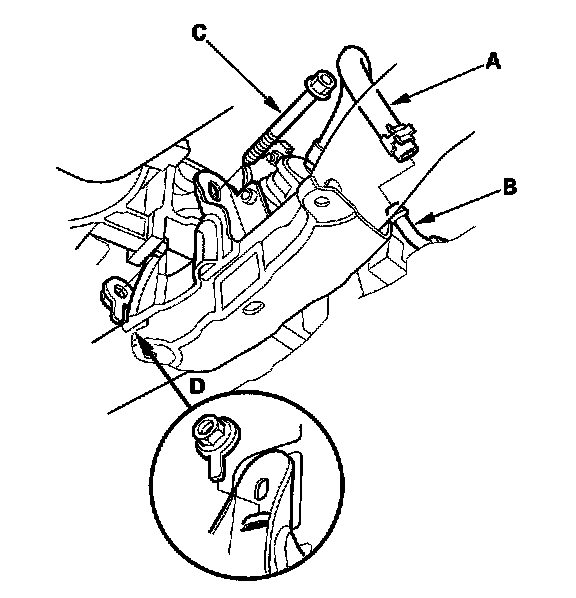

28. Disconnect the ATF cooler hose (A) from the ATF cooler line (B), then plug the end of the hose.
29. Remove the front mount bolt (C) and nut (D).

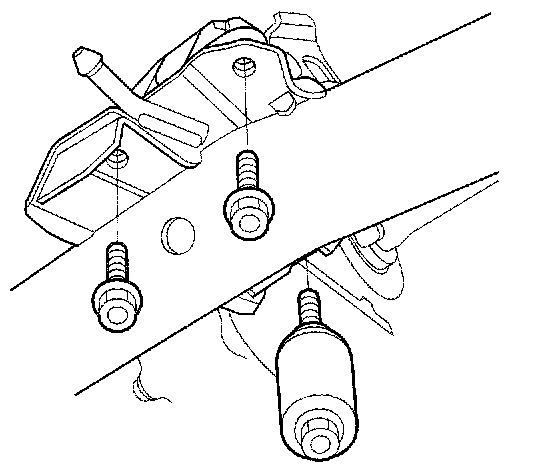

30. Remove the rear mount bracket bolts.

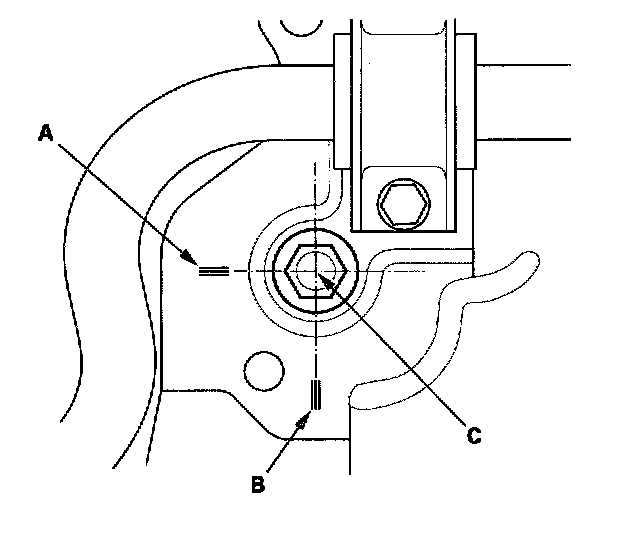

31. Make the appropriate reference lines at positions A and B that line up with the center of the sub-frame mounting bolts (C).

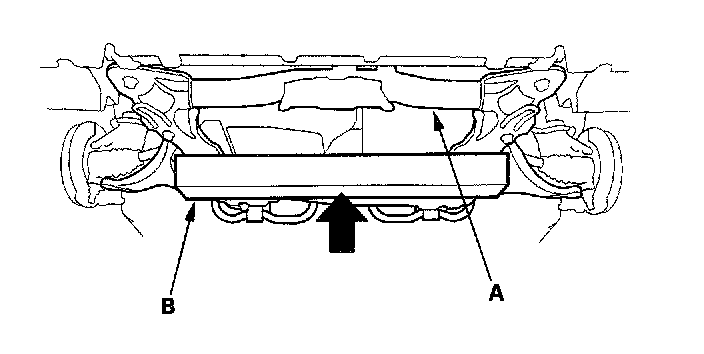

32. Support the sub-frame (A) with a 4 x 4 x 40 inch piece of wood (B) and jack.

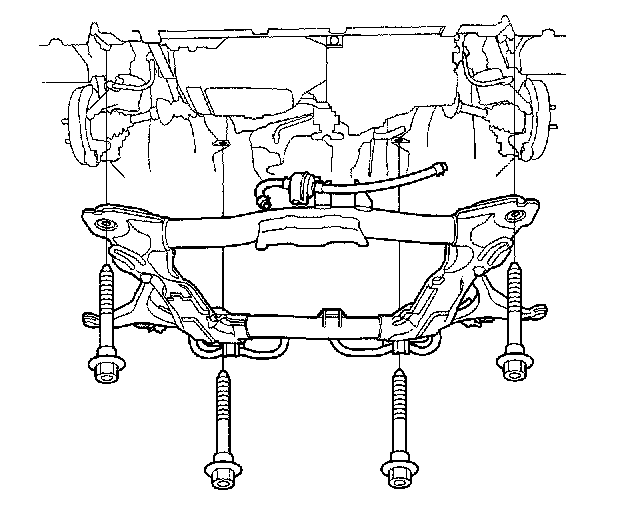

33. Remove the four sub-frame mounting bolts, then lower the sub-frame.





34. Pry the driveshafts, and remove then from the differential and intermediate shaft.

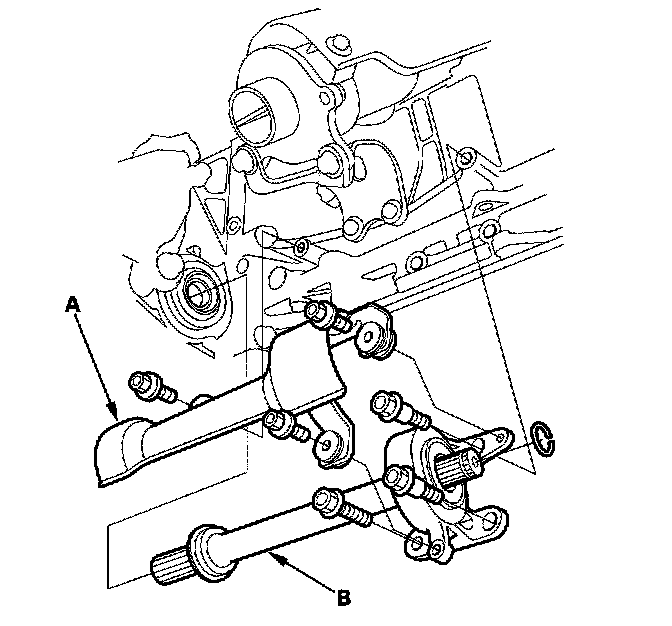

35. Remove the intermediate shaft cover (A).

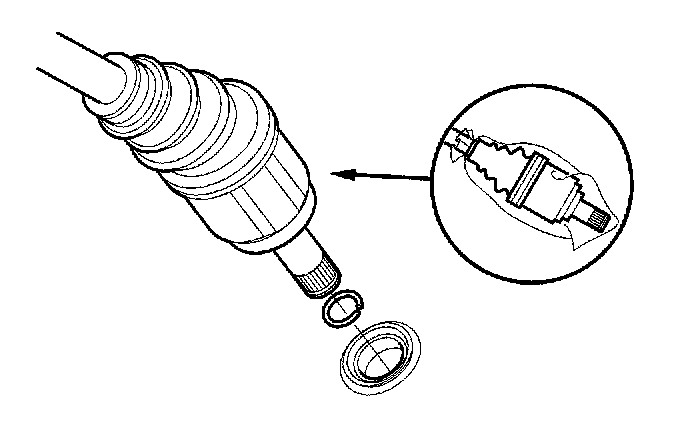

36. Remove the intermediate shaft (B). Coat all precision finished surfaces with clean engine oil, then tie plastic bags over the driveshaft and intermediate shaft ends.
37. Place a jack under the transmission.

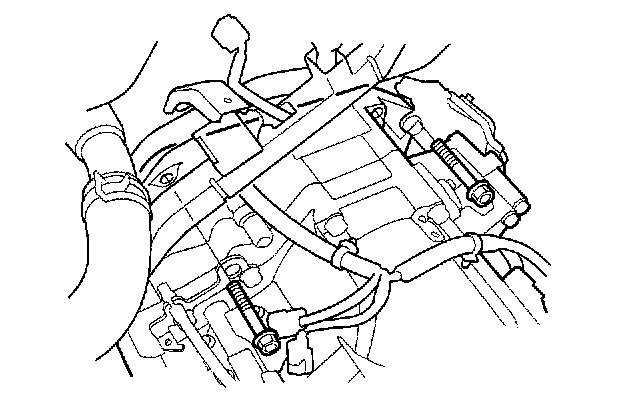

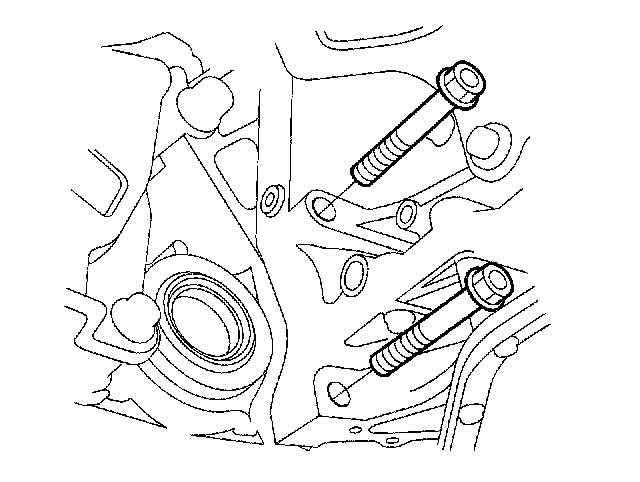

38. Remove the transmission housing mounting bolts.

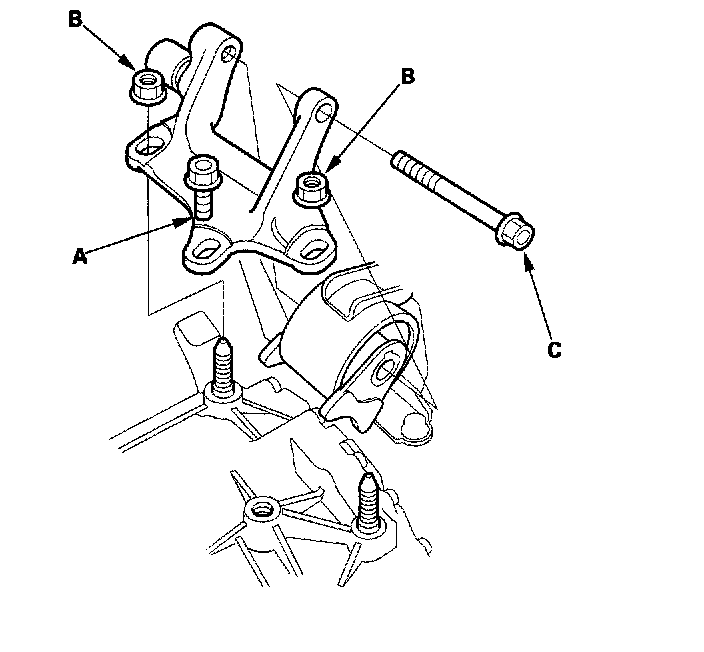

39. Remove the transmission mount bracket bolt (A) and nuts (B), then remove the transmission mount bolt (C).





40. Remove the transmission housing mounting bolts located on the front lower of the transmission.





41. Remove the transmission housing mounting bolts located on the rear lower of the transmission.
42. Slide the transmission away from the engine to remove it from the vehicle.

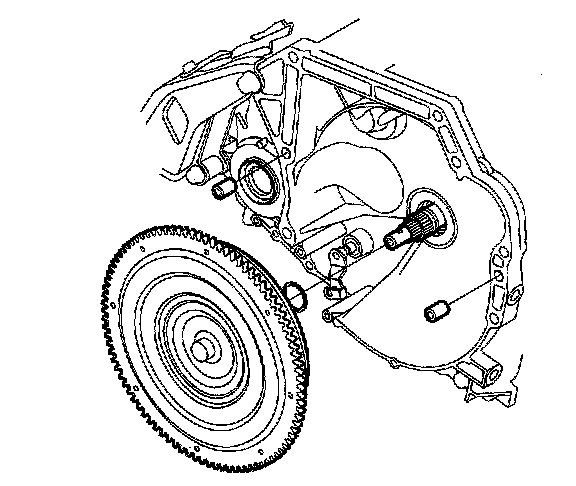

43. Remove the torque converter assembly.

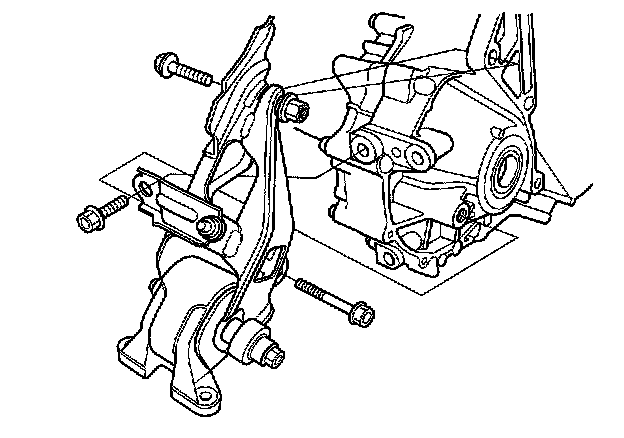

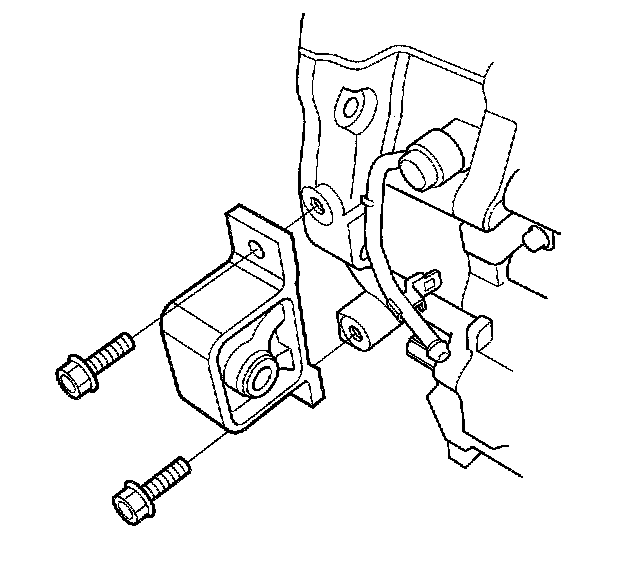

44. Remove the front mount.





45. Remove the rear mount/bracket.

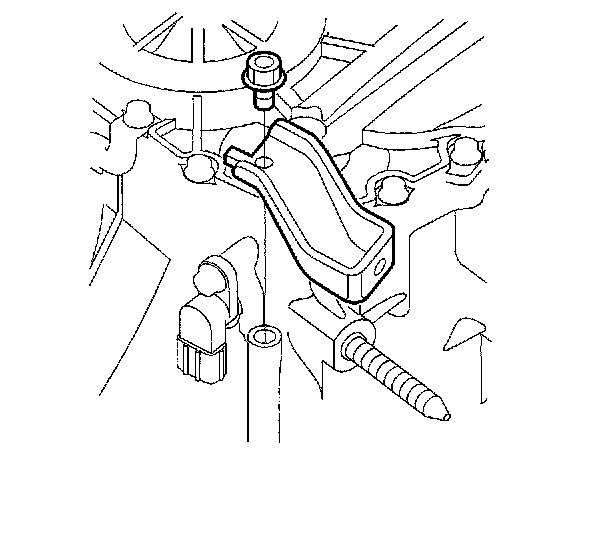

46. Remove the air cleaner housing mounting bracket.





47. Inspect the drive plate, and replace it if it's damaged.
