Fluid Line/Hose: Service and Repair

ATF Cooler Hoses Replacement

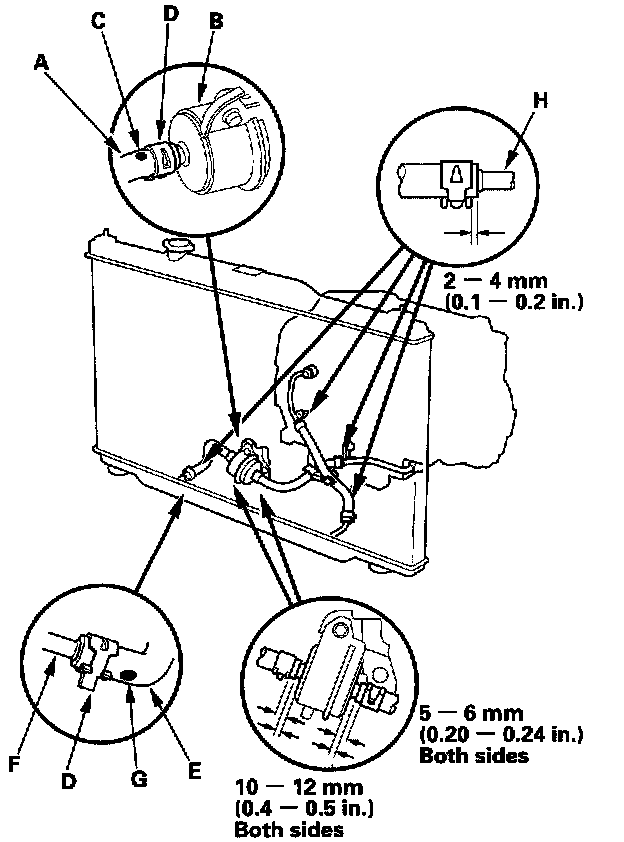

1. Connect the ATF cooler hoses (A) to the ATF filter (B), with the dot (C) facing up, and secure the hose ends with the clips (D).
2. Connect the ATF cooler hose (E) to the ATF cooler (F) with the dot (G) facing down, and to the ATF cooler lines (H) on the transmission, and secure the hoses with the clips.
3. Install the clamp on the hoses.
