Shift Solenoid Valve Installation

Installation

NOTE:
- Do not install the shift solenoid valve A and B before installing the shift solenoid valve D and E. If solenoid valve A and B are installed before solenoid valves D and E, it may damage the hydraulic control system.
- Do not hold the shift solenoid valve connector to install it. Hold the shift solenoid valve body.

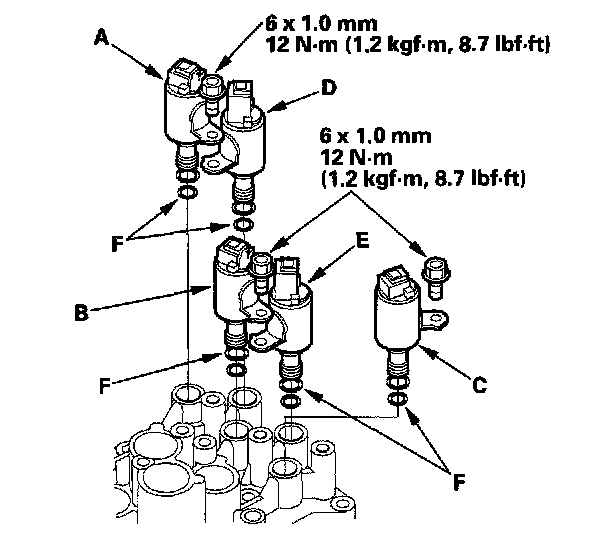

1. Install the new O-rings (F) on each shift solenoid valves.
2. Install shift solenoid valve D while holding the shift solenoid valve body. Install the valve until its mounting bolt bracket contacts the servo body.
3. Install shift solenoid valve A while holding the shift solenoid valve body. Install the valve until its mounting bolt bracket contacts the bracket of shift solenoid valve D.
4. Install shift solenoid valve E while holding the shift solenoid valve body. Install the valve until its mounting bolt bracket contacts the servo body.
5. Install shift solenoid valve B while holding the shift solenoid valve body. Install the valve until its mounting bolt bracket contacts the bracket of shift solenoid valve E.
6. Install shift solenoid valve C while holding the shift solenoid valve body. Install the valve until its mounting bolt bracket contacts the servo body.
