Steering Column Removal and Installation

Removal and Installation
SRS components are located in this area. Review the SRS component locations and precautions and procedures in Restraint Systems before performing repairs or service.

Removal
1. Record the radio station presets, and disconnect the battery.
2. Remove the driver's airbag assembly and the steering wheel.
3. Remove the driver's dashboard lower covers.
4. Remove the column covers (A).
5. Remove the combination switch assembly (B) from the steering column shaft by removing the screw (C) on the top of the combination switch. Disconnect the 5P, 14P, and 16P connectors from the switch.
6. Disconnect the 6P and two 7P connectors from the ignition switch. Disconnect the harness clips from the steering column.
7. Disconnect the steering joint (D), and remove it from the column shaft.
8. Remove the steering column (E) by removing the attaching nuts and bolts.

Installation
1. Install the steering column in the reverse order of removal, and note these items:
^ Take care not to let the sliding capsules fall out of the position during column installation.
^ Make sure the wires are not caught or pinched by any parts.

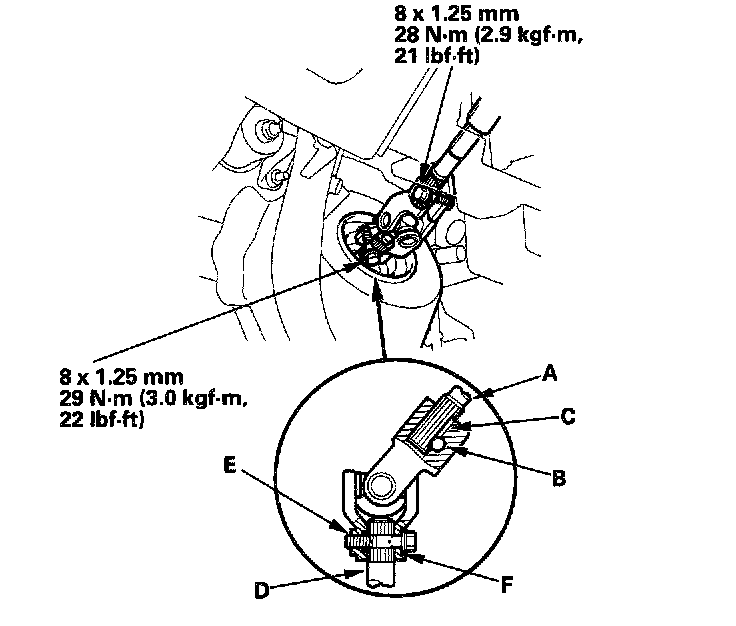

2. Insert the upper end of the steering joint onto the steering shaft (A) (line up the bolt hole (B) with the flat portion (C) on the shaft).
3. Slip the lower end of the steering joint onto the pinion shaft (D) (line up the bolt hole (E) with the groove (F) around the shaft), and loosely install the lower joint bolt. Be sure that the lower joint bolt is securely in the groove in the pinion shaft.
4. Pull on the steering joint to make sure that the steering joint is fully seated. Then install the upper joint bolt and tighten it.
5. Finish the installation, and note these items:
^ Make sure the wire harness is routed and fastened properly.
^ Make sure the connectors are properly connected.
^ Reinstall the steering wheel.
^ Reconnect the battery.
^ Verify horn and turn signal switch operation.
^ Check wheel alignment, if necessary.
