Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor Replacement

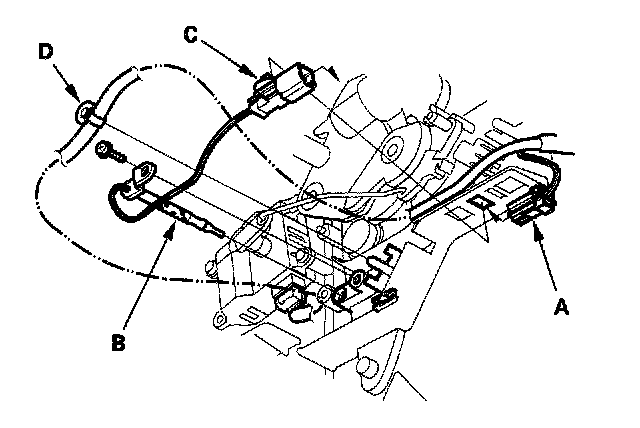

1. Disconnect the 2P connector (A) from the evaporator temperature sensor (B), then remove the connector clip (C) and wire harness clip (D). Remove the self-tapping screw, and carefully pull out the evaporator temperature.
2. Install the sensor in the reverse order of removal.
